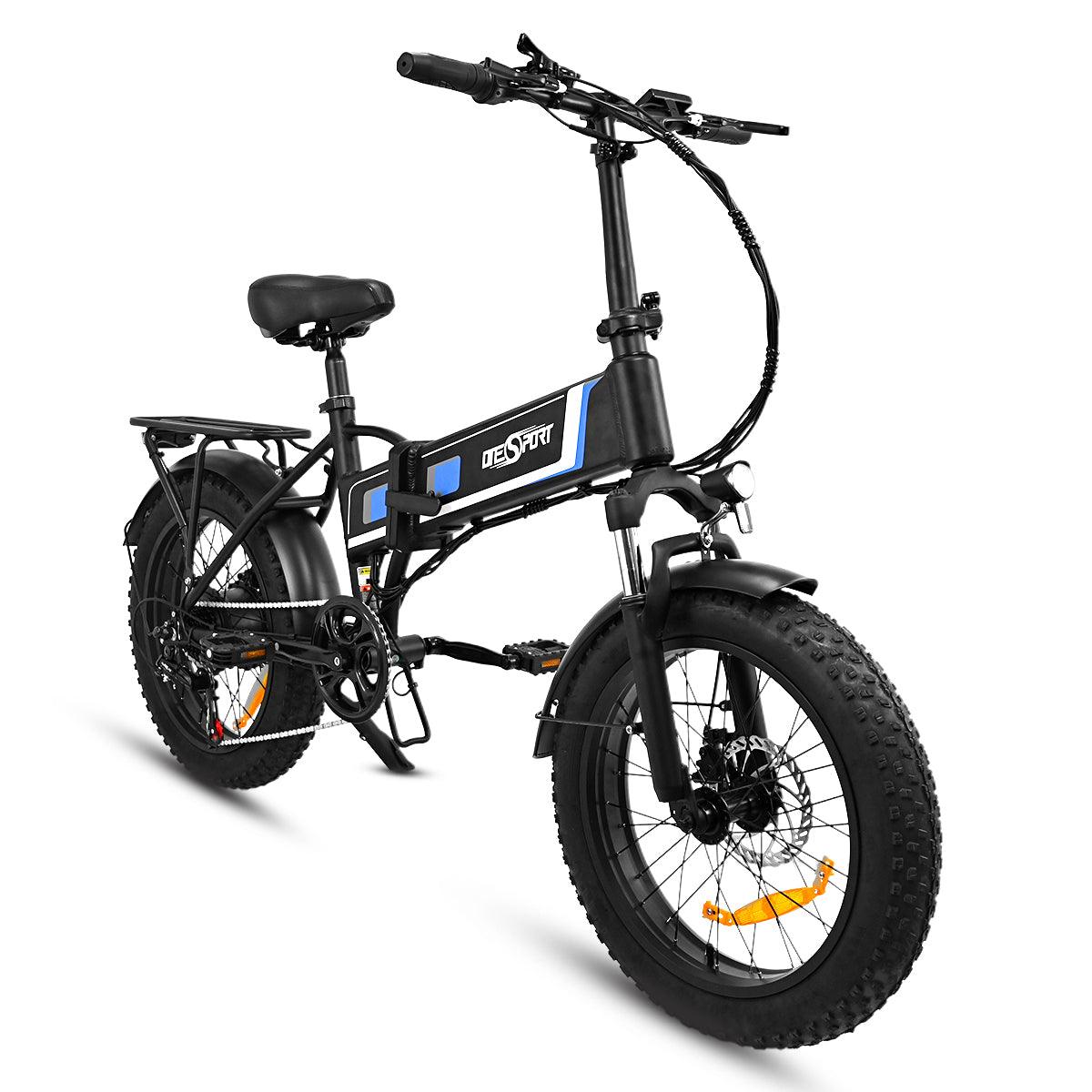

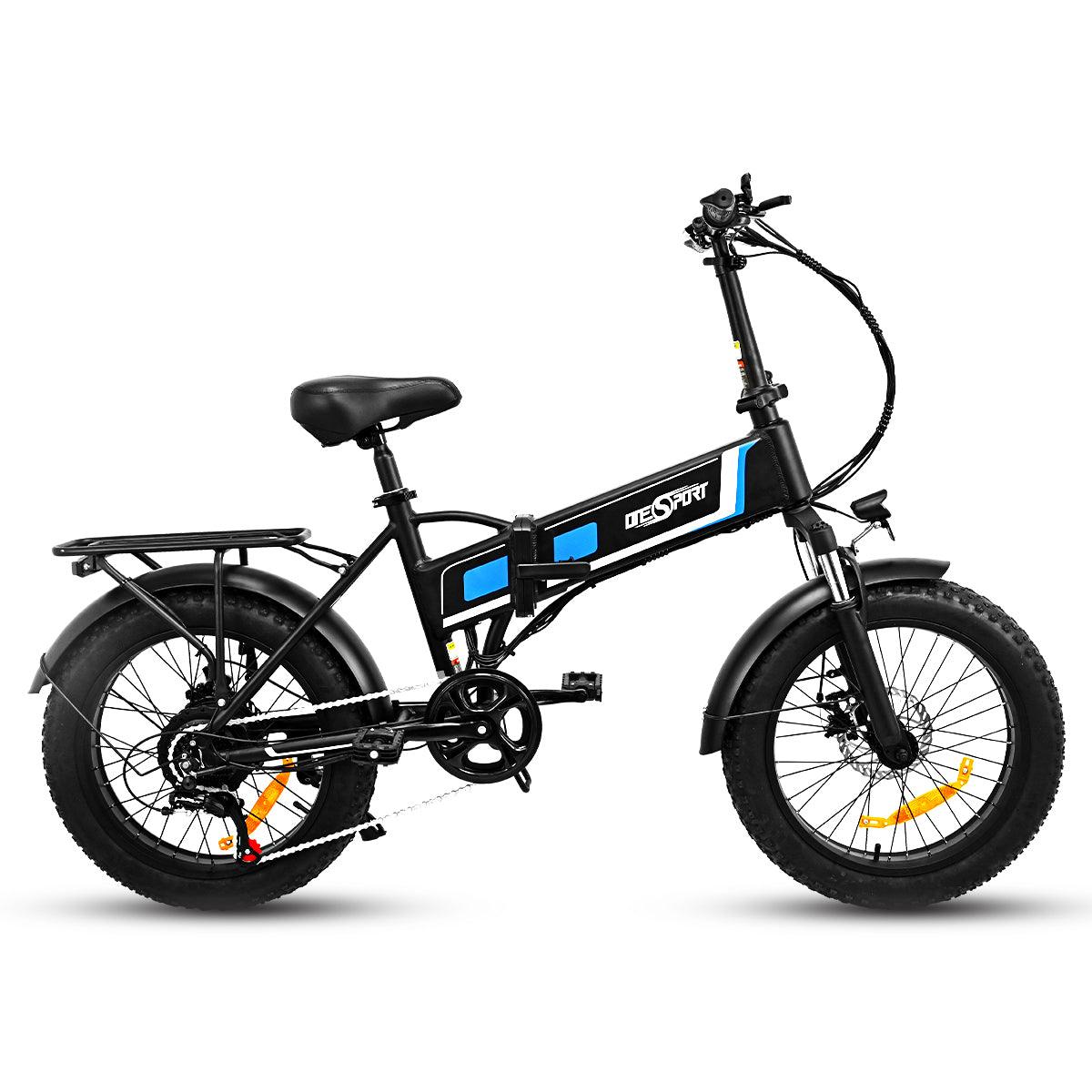

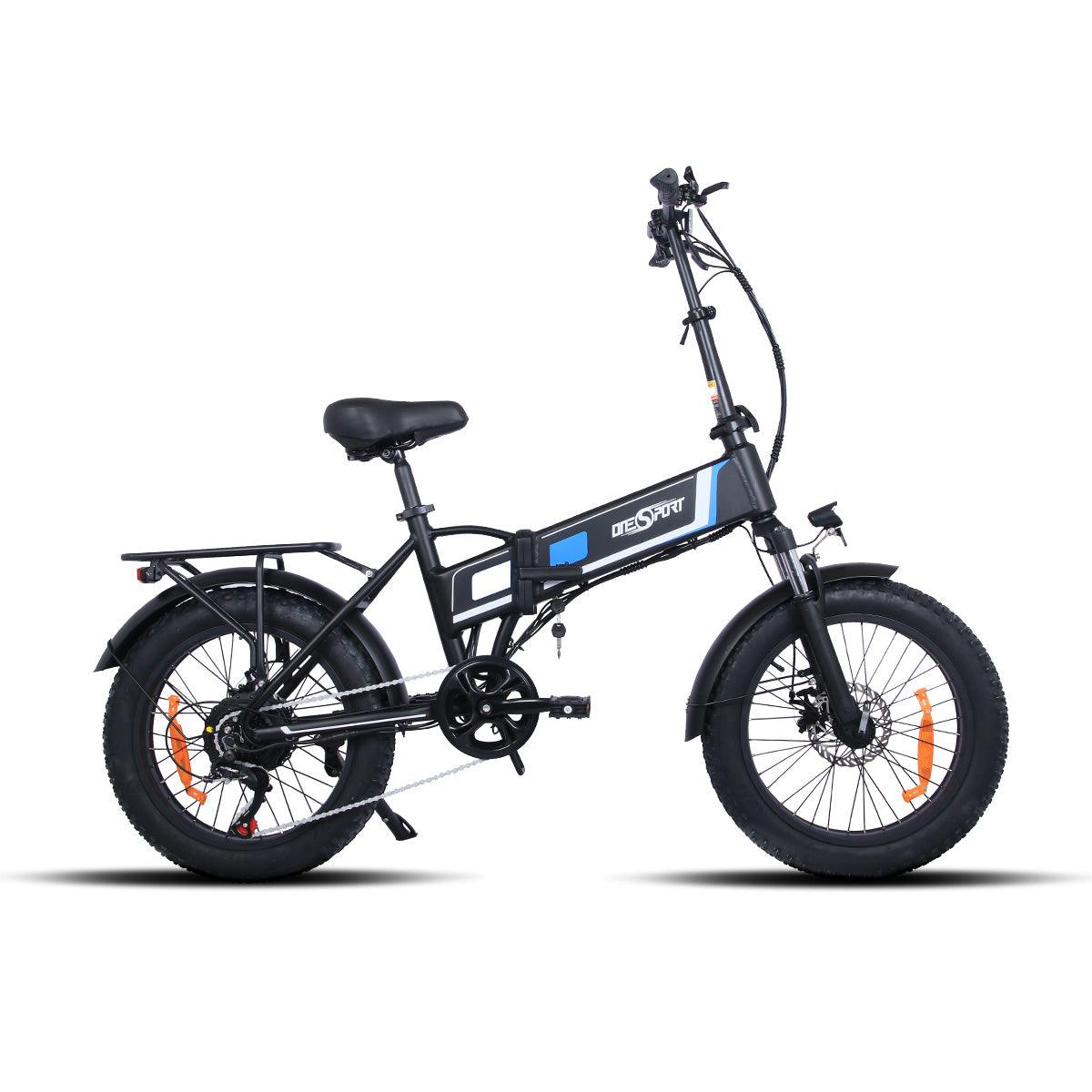

OneSport OT10 Folding E-bike
OneSport OT10 Folding E-bike
Couldn't load pickup availability
48V 12Ah Lthium Battery
Features a powerful 48V12Ah lithium battery, offering long-lasting rides and quick recharging. Light and efficient, it's ideal for daily commutes and adventurous journeys.
250W~500W High-speed Brushless Motor
Featuring a powerful 250W~500W brushless motor, offers robust performance, delivering smooth acceleration and the ability to tackle a variety of terrains with ease.
30KM In Pure Electric Mode
Offers an impressive range of up to 30KM In pure electric mode on a single charge, ensuring you can go further and explore more without worry. Perfect for long rides and daily commutes, it's your reliable partner for every journey.
Body Material
Aluminum Alloy
Color
Matte Black
Maximum Load
120KG
Maximum Speed
25KM/H
Range
30KM In Pure Electric Mode
Rear Shelf
With Non-adjustable Rear Shelf
Maximum Climbing Angle
30-40 Degree

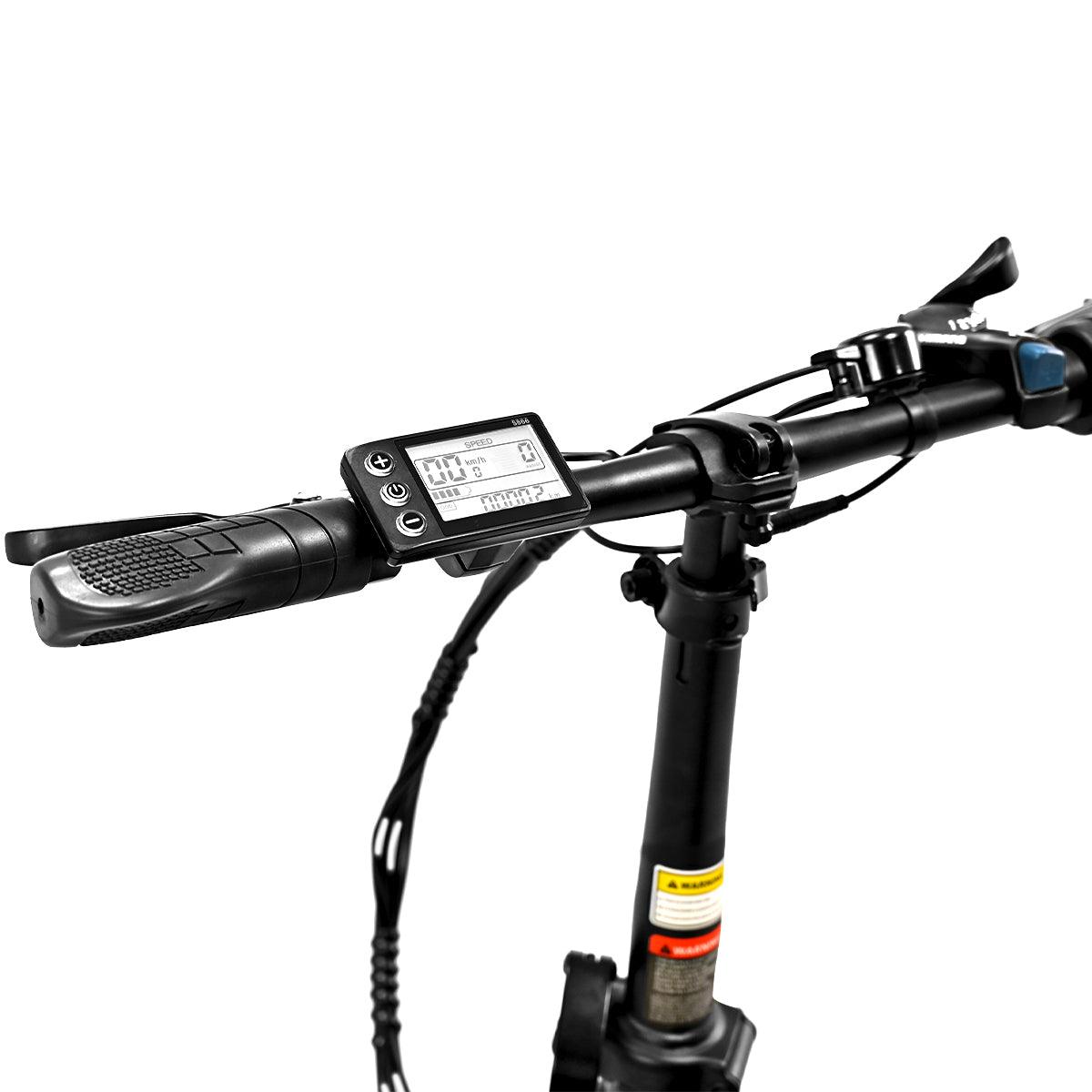

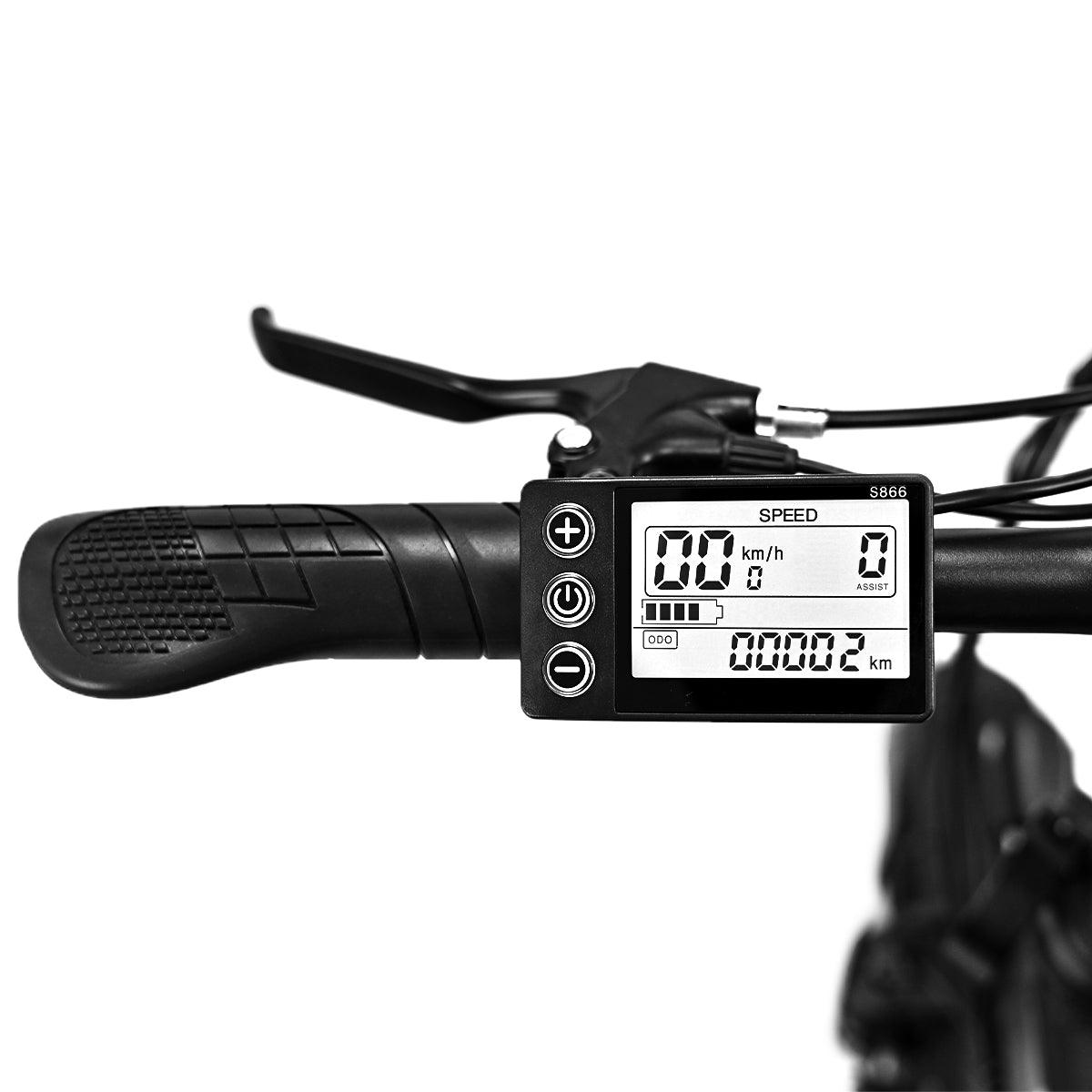

Instrument Display
Multifunctional LCD Screen

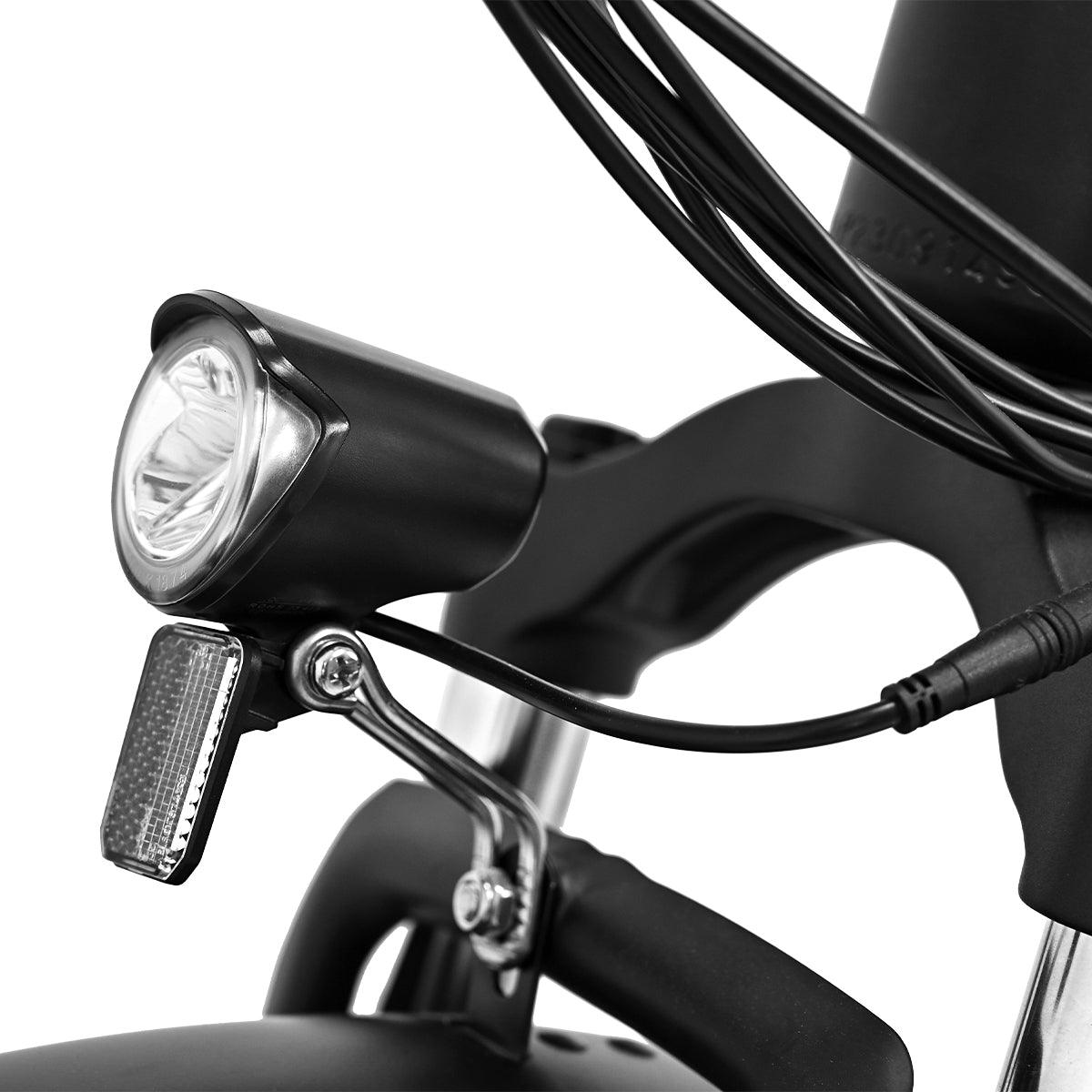

Front Lighting
Include
Tail Light
Include
Front Fender
Include
Rear Fender
Include
Braking Method
Front Disc Brake + Rear Disc Brake
Hub Form
Spoke Wheel
Tire Specifications
Pneumatic Tires
Front Fork
Shock Fork
Foldable
Foldable
Gear
7 Speeds Transmission

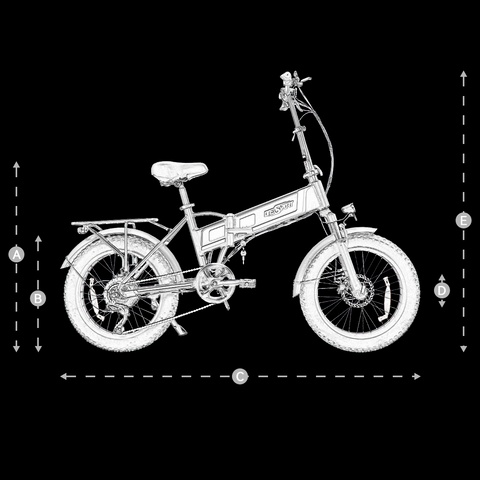

Length
1670mm
Rear Hheight
580MM
Front Height
1200MM
Front Height
920MM*500MM*800MM
Packing Size
1430MM*300MM*700MM
Tire Size
20×4.0 Inches
Net Weight/Gross Weight
28.4KG/33KG
Battery Size
360*60*115MM
Suitable For Height
1550MM-1900MM
Saddle Height
700MM-890MM
Brake Pad Diameter
160MM
Battery Type
18650Lithium Ion Power Battery
Battery Capacity
12Ah
Battery Rated Voltage
48V
Motor Form
Assist Mode
Motor Type
20 Inches / High-speed Gear / Spoke Wheel Brush-less Motor
Motor Rated Power
250W~500W
Motor Rated No-Load Speed
380±10r/Min
Controller
9-MOSFET Controller
Charger Output
54.6V 2.0A
Charger Input
100~240V 50/60Hz 3.0A
Under Voltage Protection Value
39V
Over Current Protection Value
15A+1A
Charging Time
5-6 Hours
Proper Temperature
-10°C-45 °C
Waterproof Level
IP54
Storage Temperature
20 °C
More details

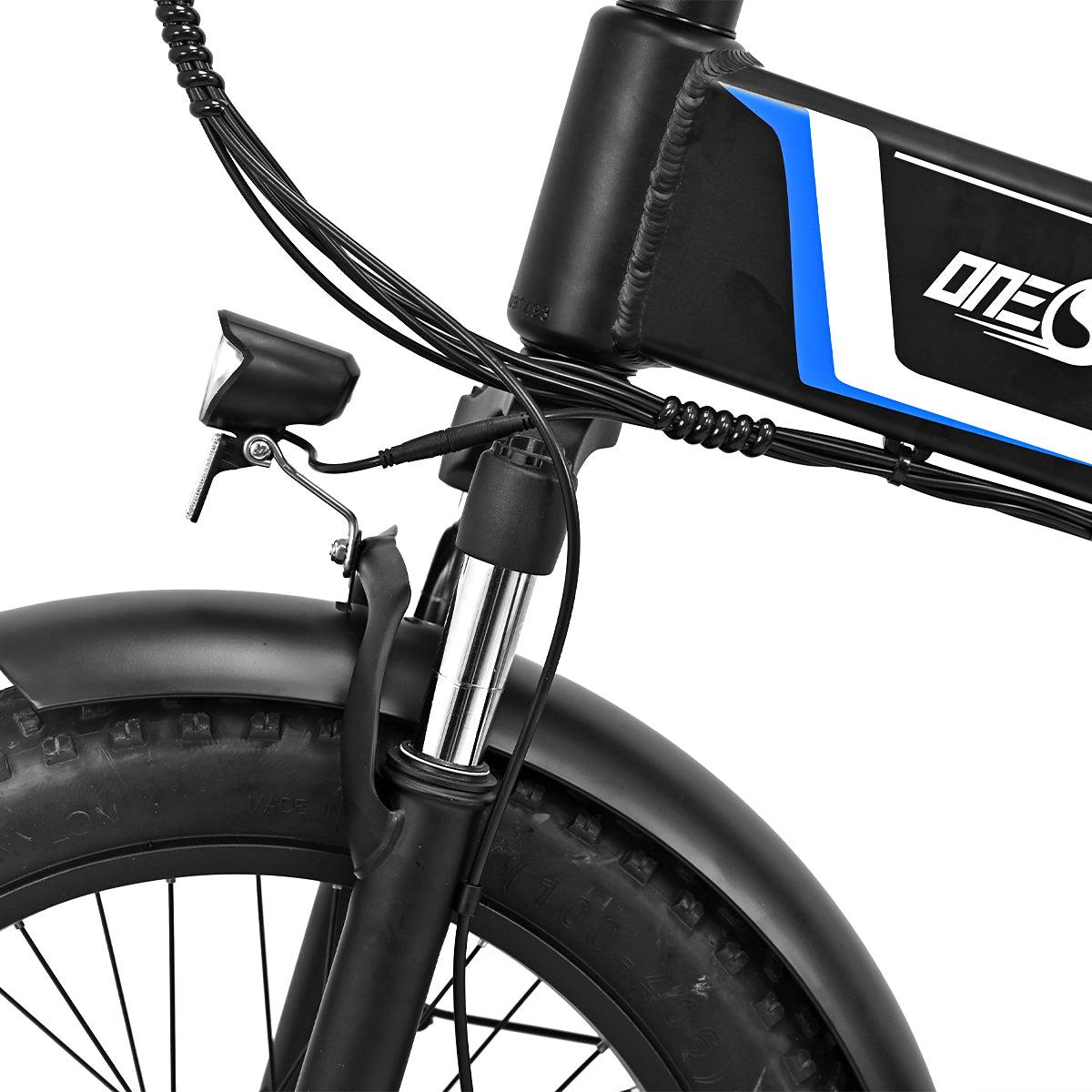

Front Fork
Equipped with a shock-absorbing front fork, ensures a smoother ride by effectively dampening bumps and vibrations, particularly on rough or uneven surfaces, enhancing comfort and control.

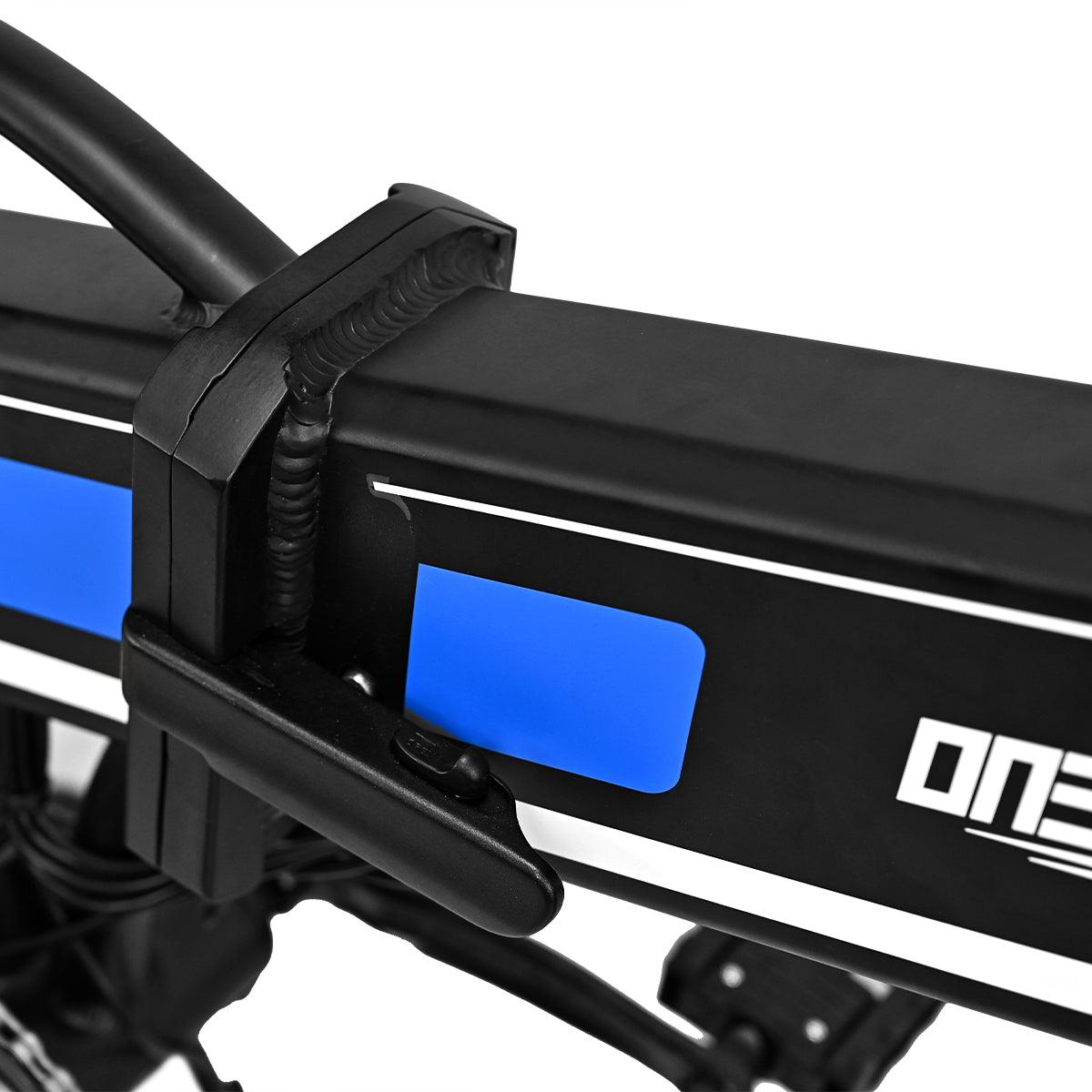

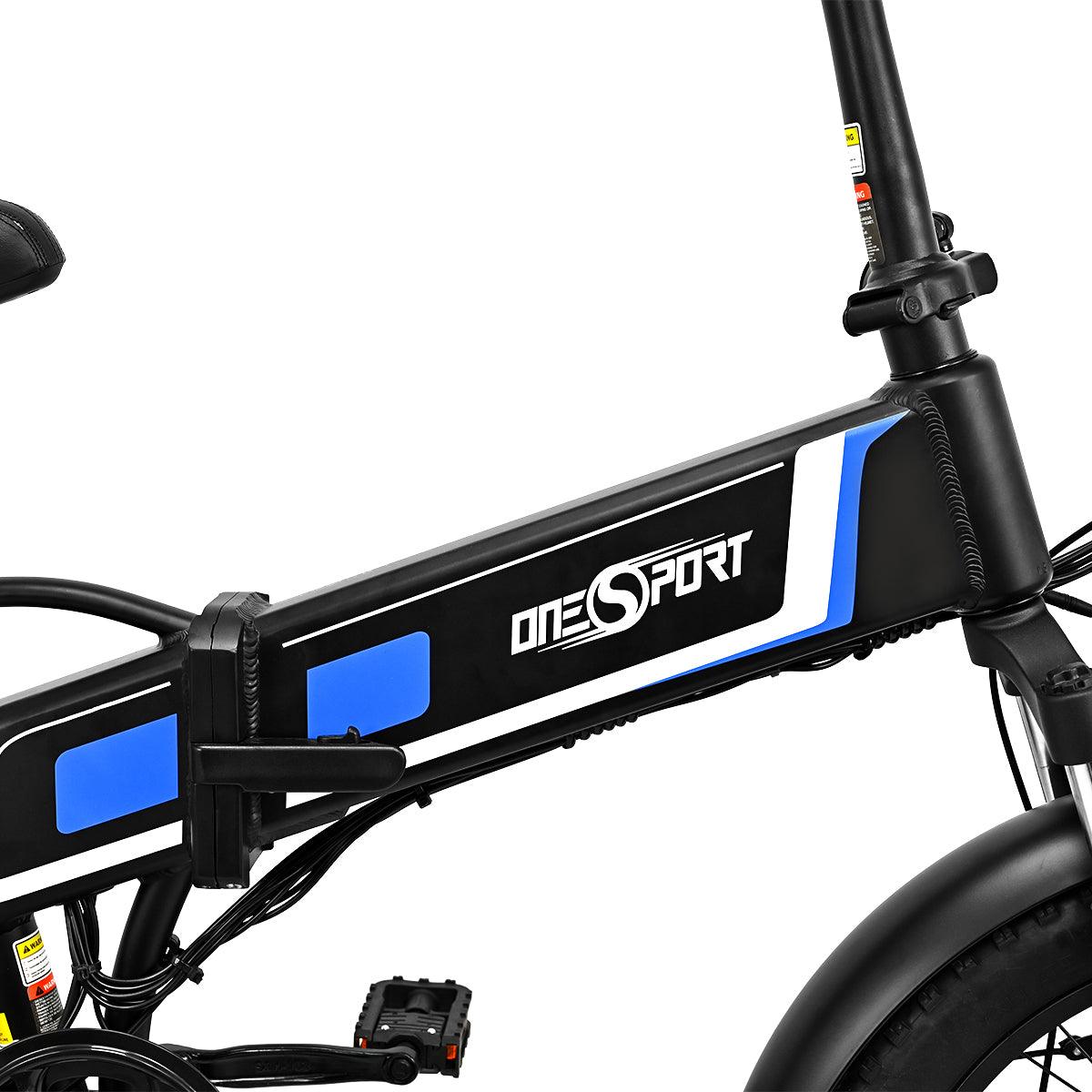

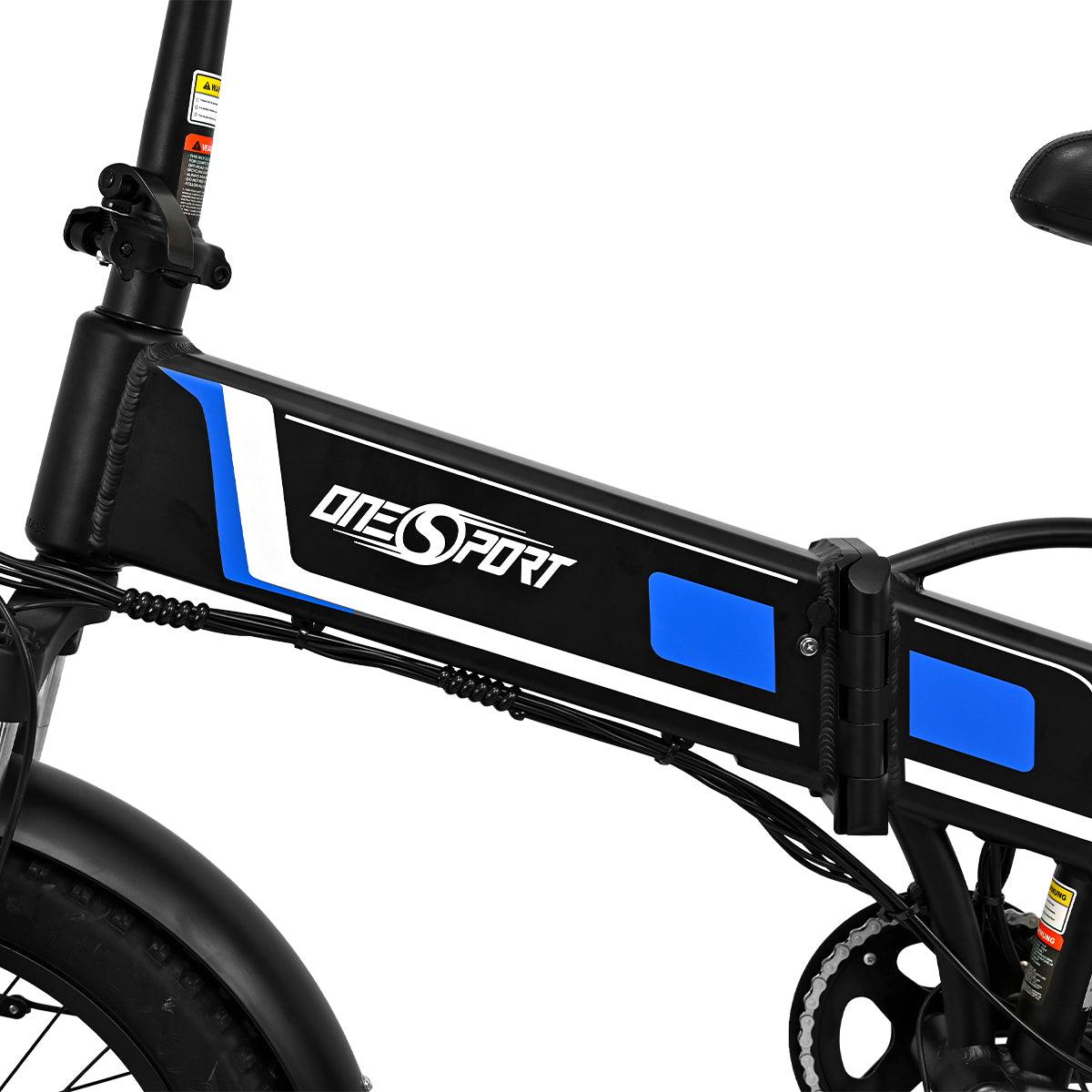

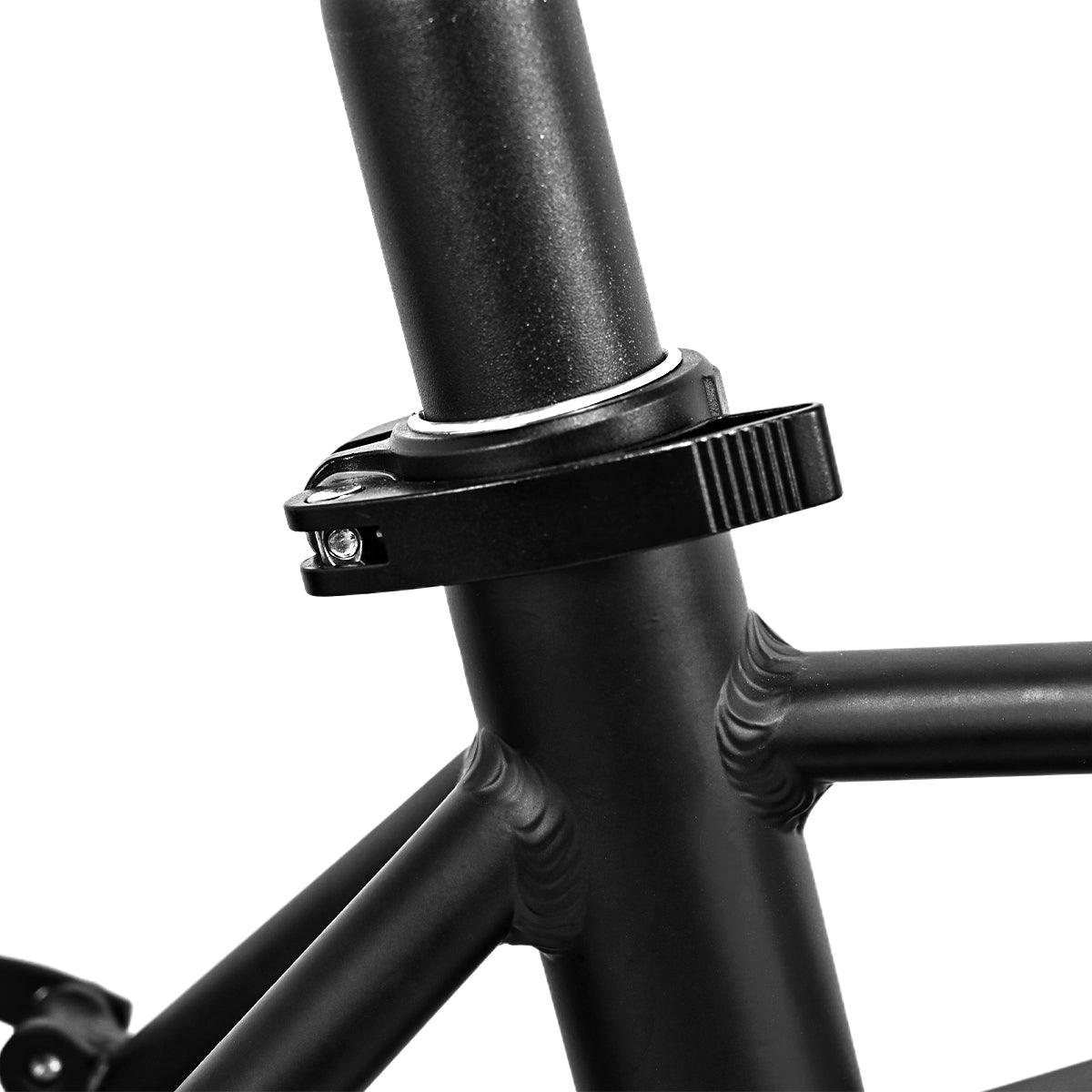

Quick Release
Features a foldable and quick-release design, making it incredibly convenient for storage and transport. Ideal for commuters or those with limited space, it combines flexibility with practicality.
Battery
Boasts an elegantly integrated battery, seamlessly blending into the frame for a sleek and streamlined look. This design not only enhances the aesthetic appeal but also protects the battery from the elements, ensuring durability and longevity for your rides.

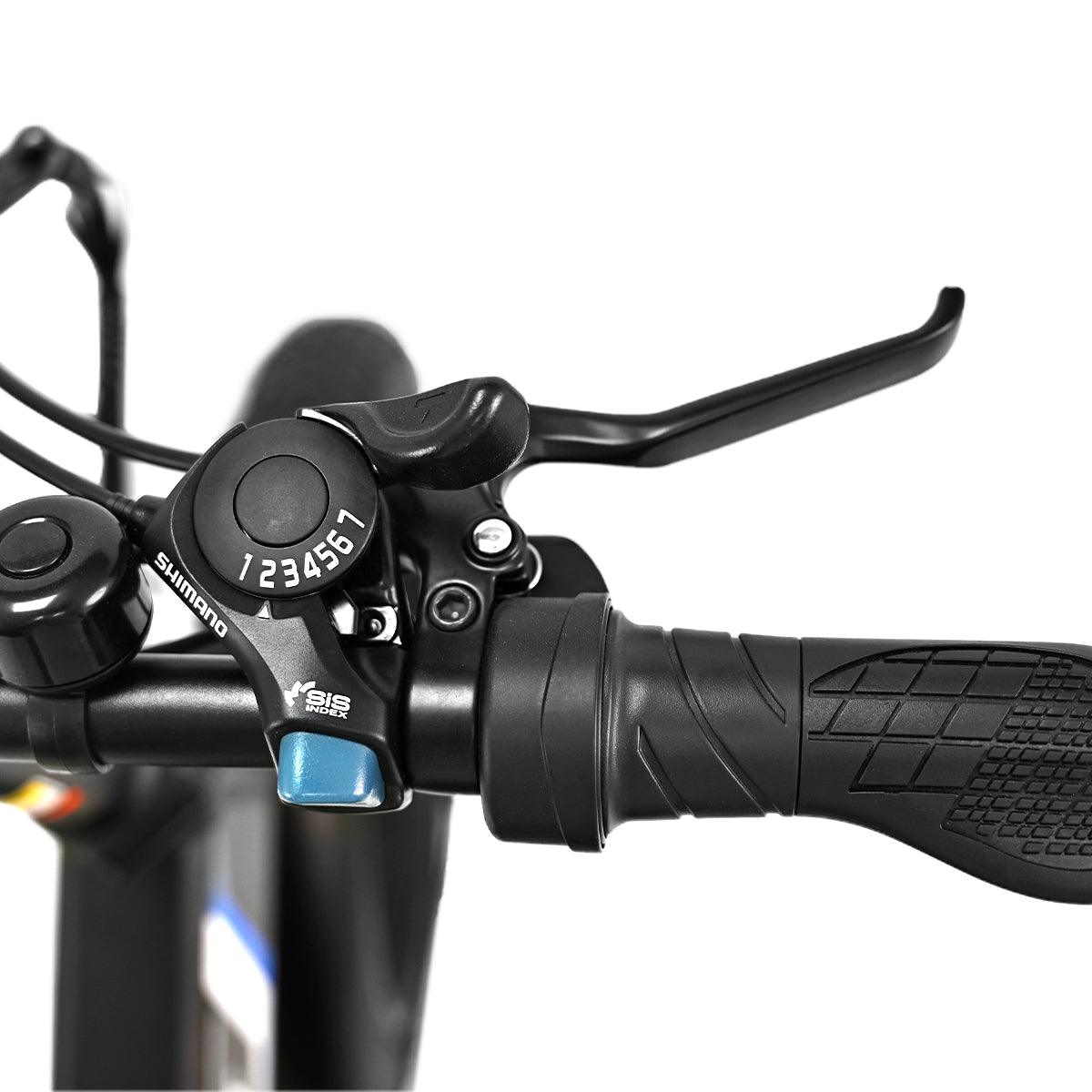

Transmission
Features a Shimano 7-speed gear system, offering seamless shifting and a wide range of gears to suit any terrain, from steep hills to flat roads. Enjoy a smooth, adaptable ride with every journey.

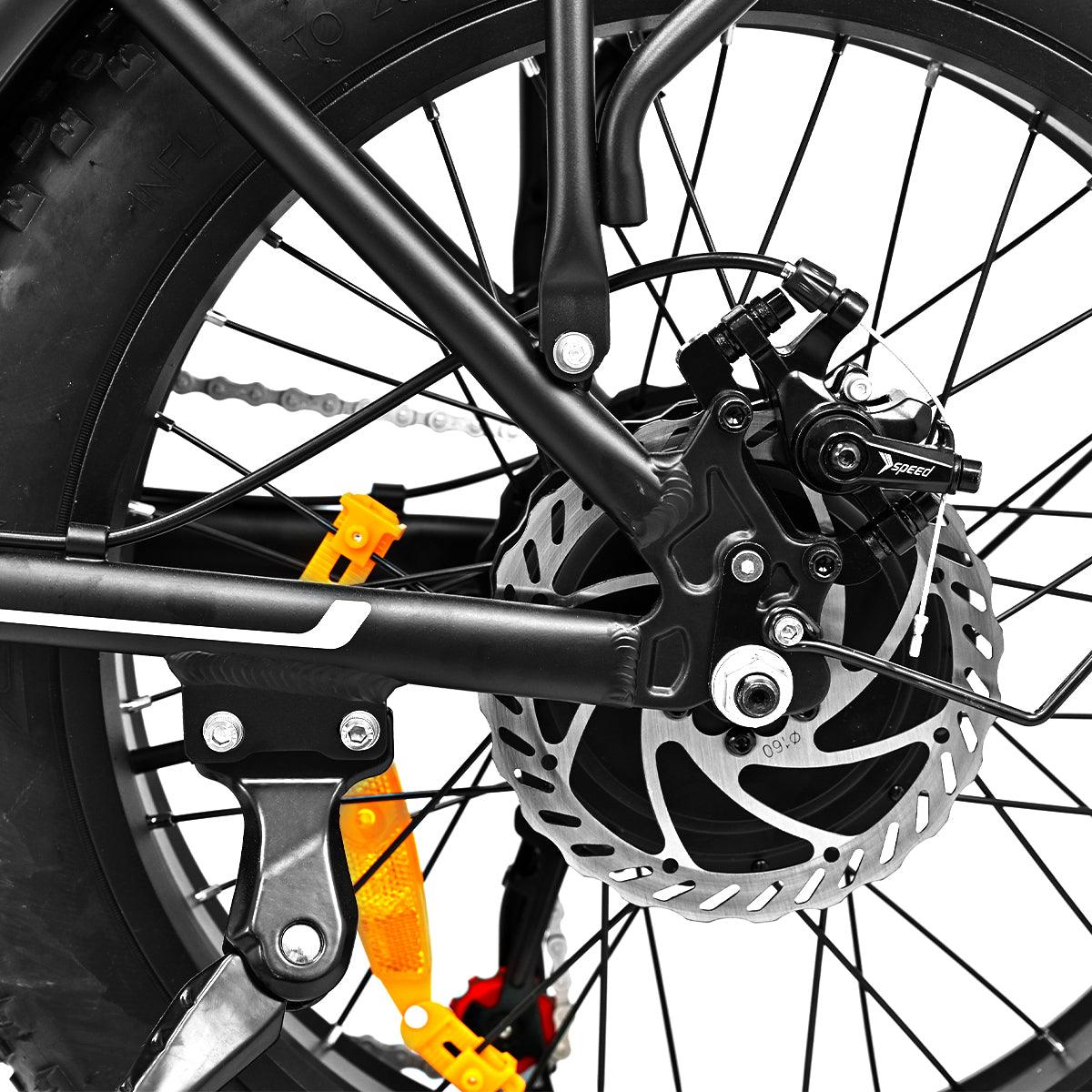

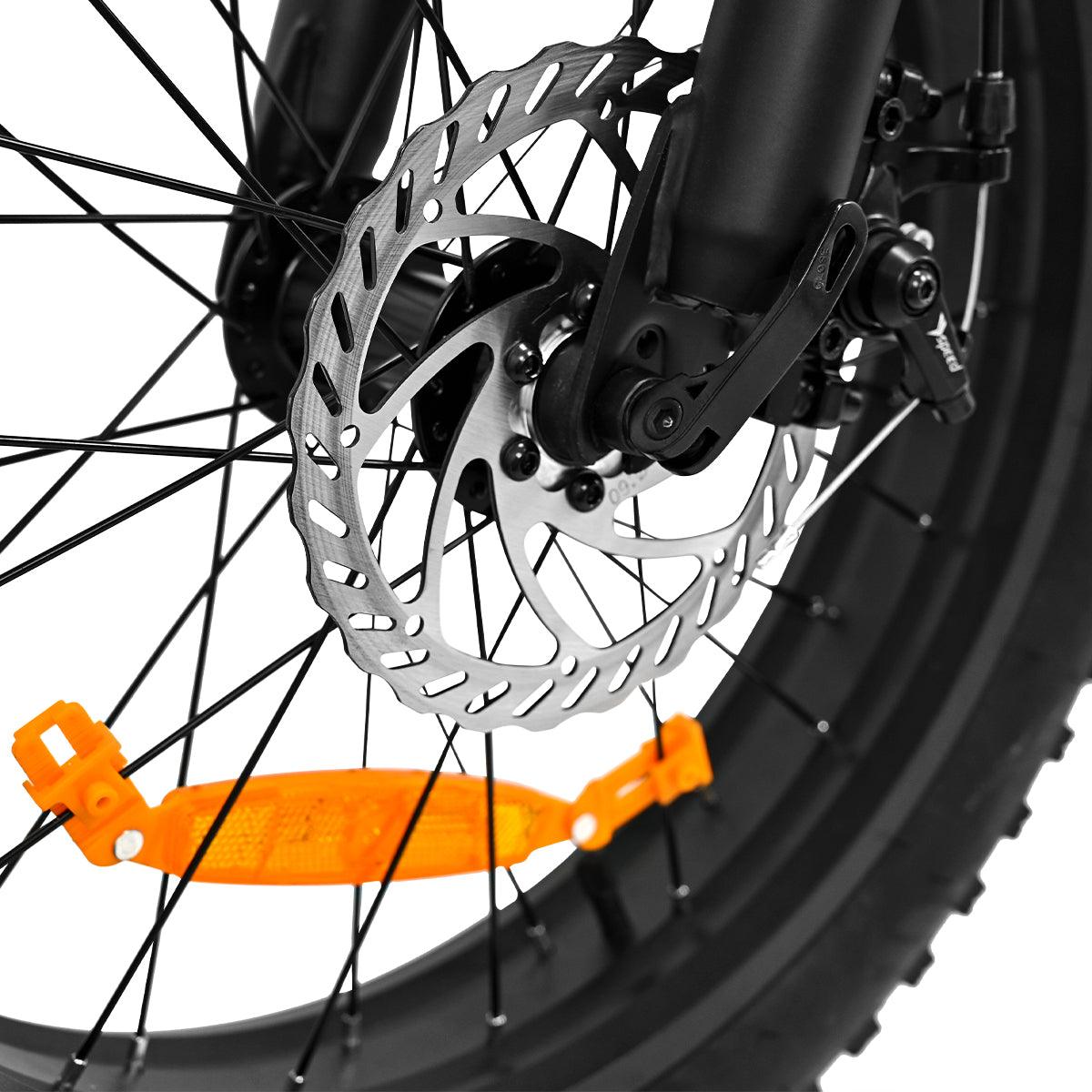

Brake
Equipped with mechanical disc brakes, providing reliable and responsive stopping power for enhanced safety and control in all riding conditions.

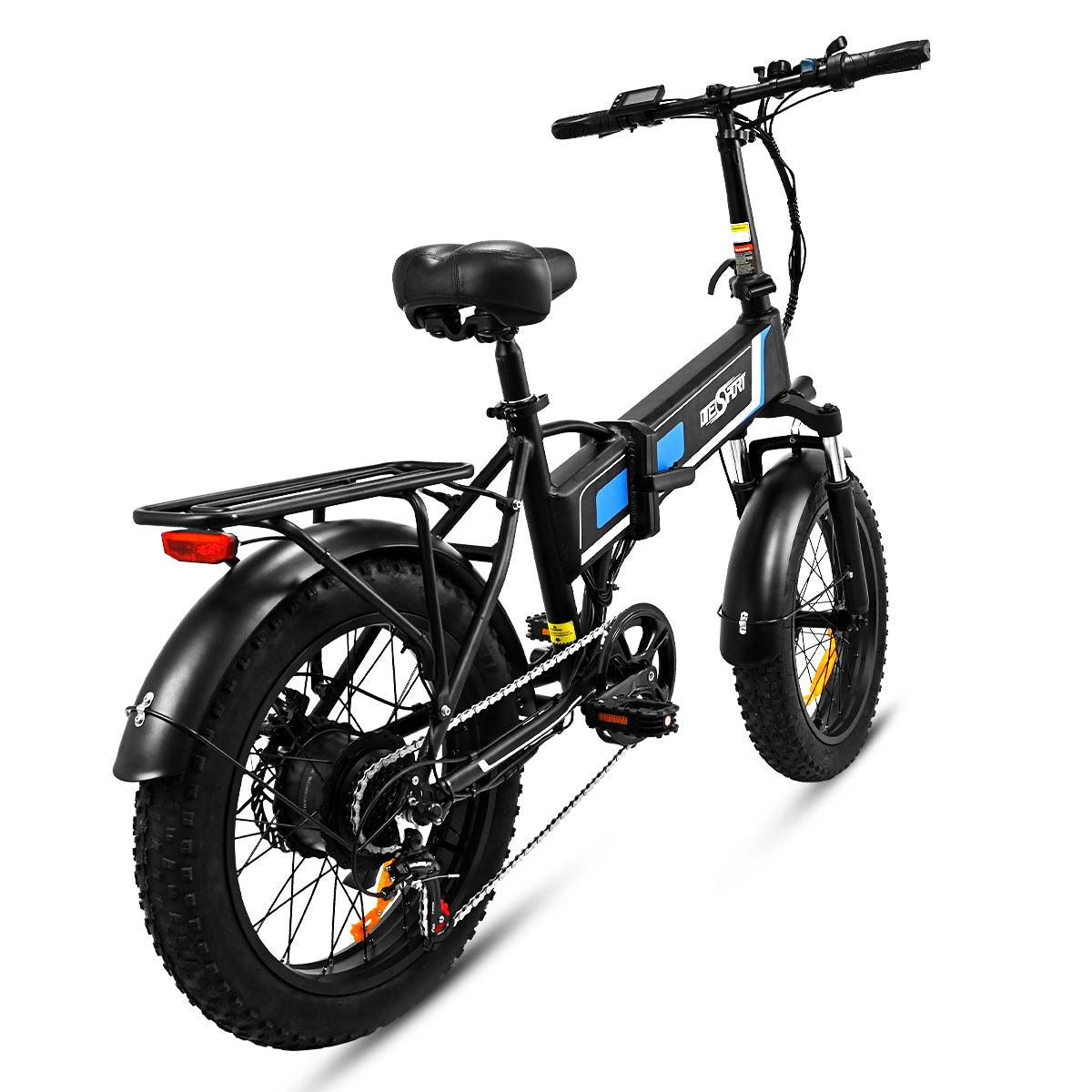

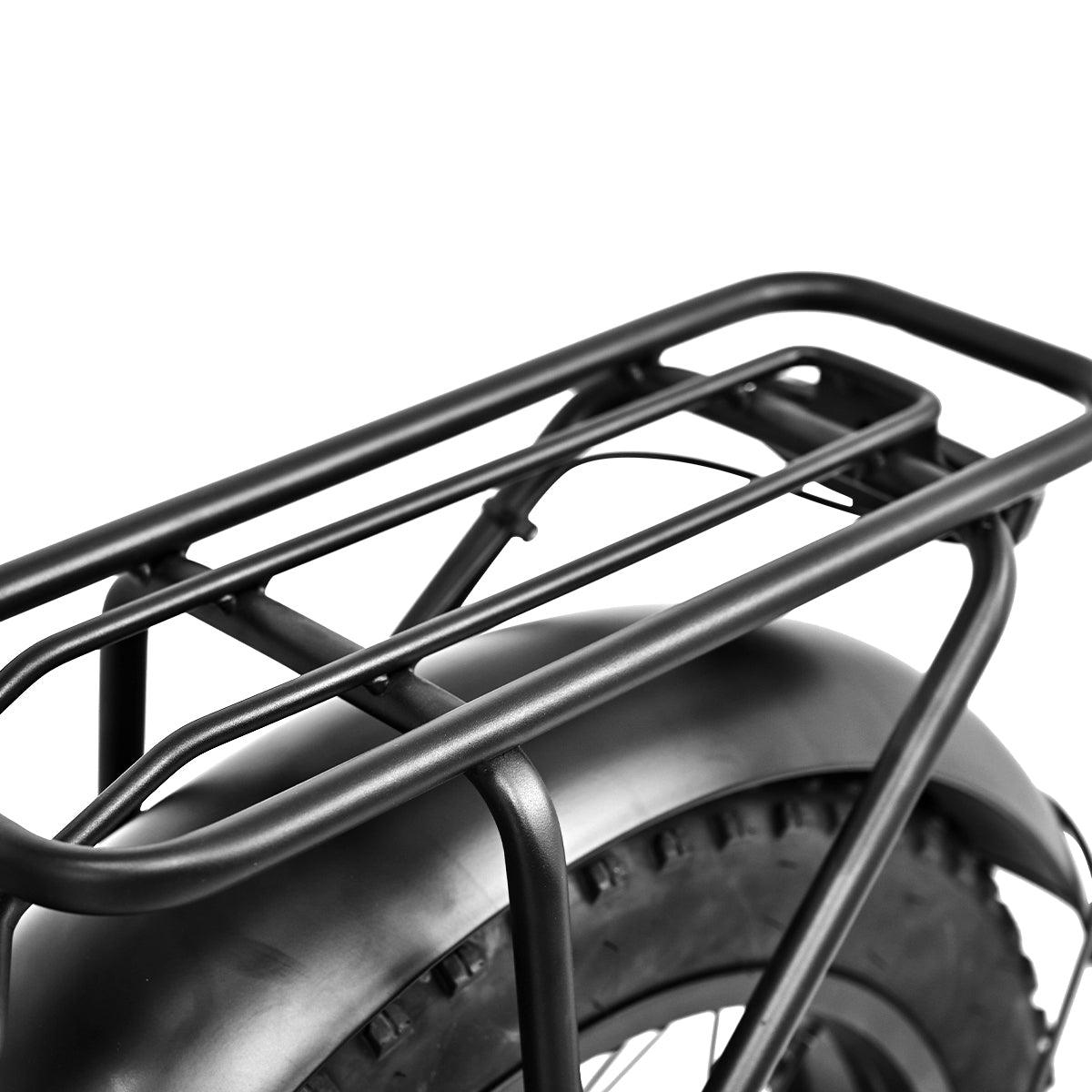

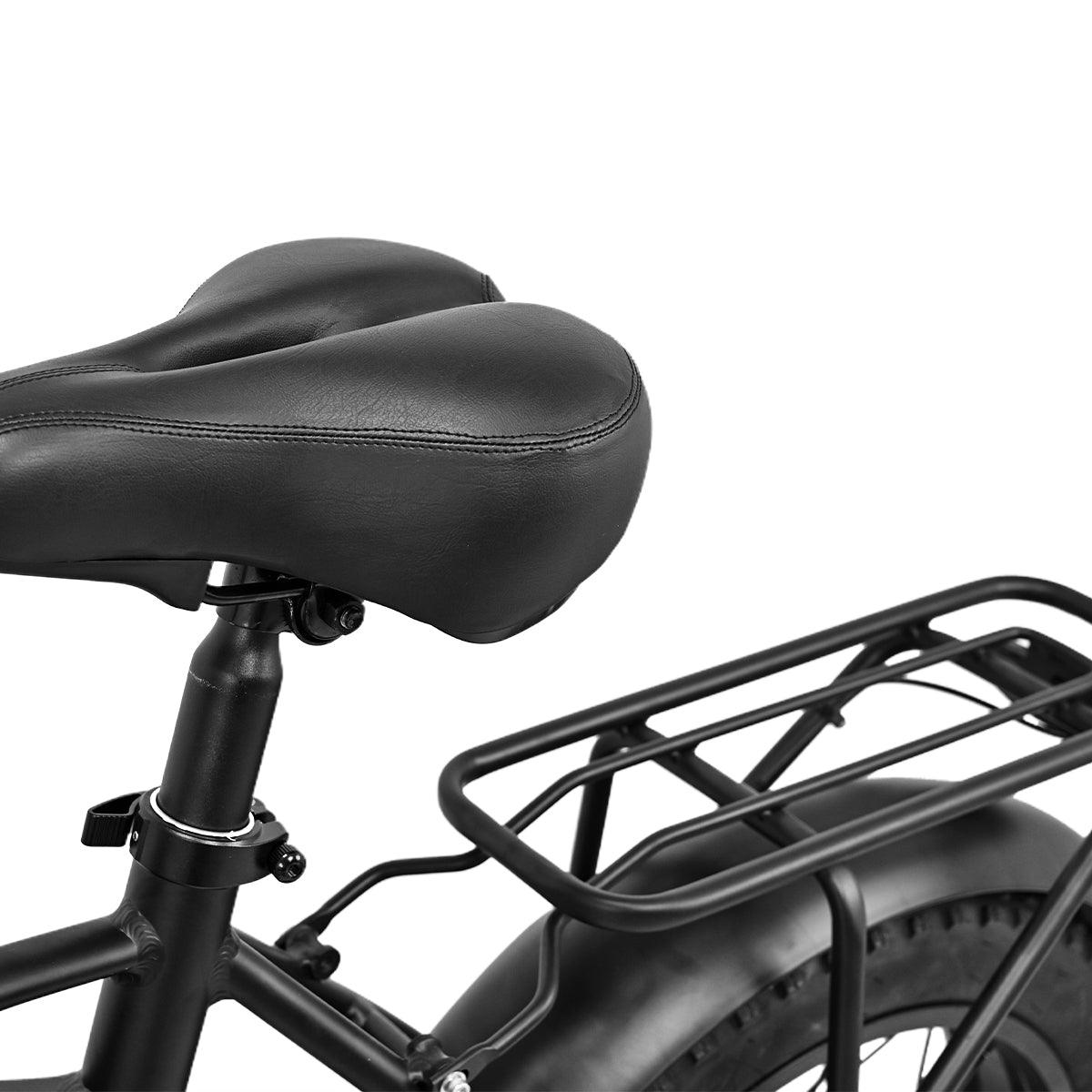

Rear Shelf
Comes with a rear rack, offering convenient storage for personal items or cargo, enhancing its utility for commuting, shopping, or leisurely outings.
