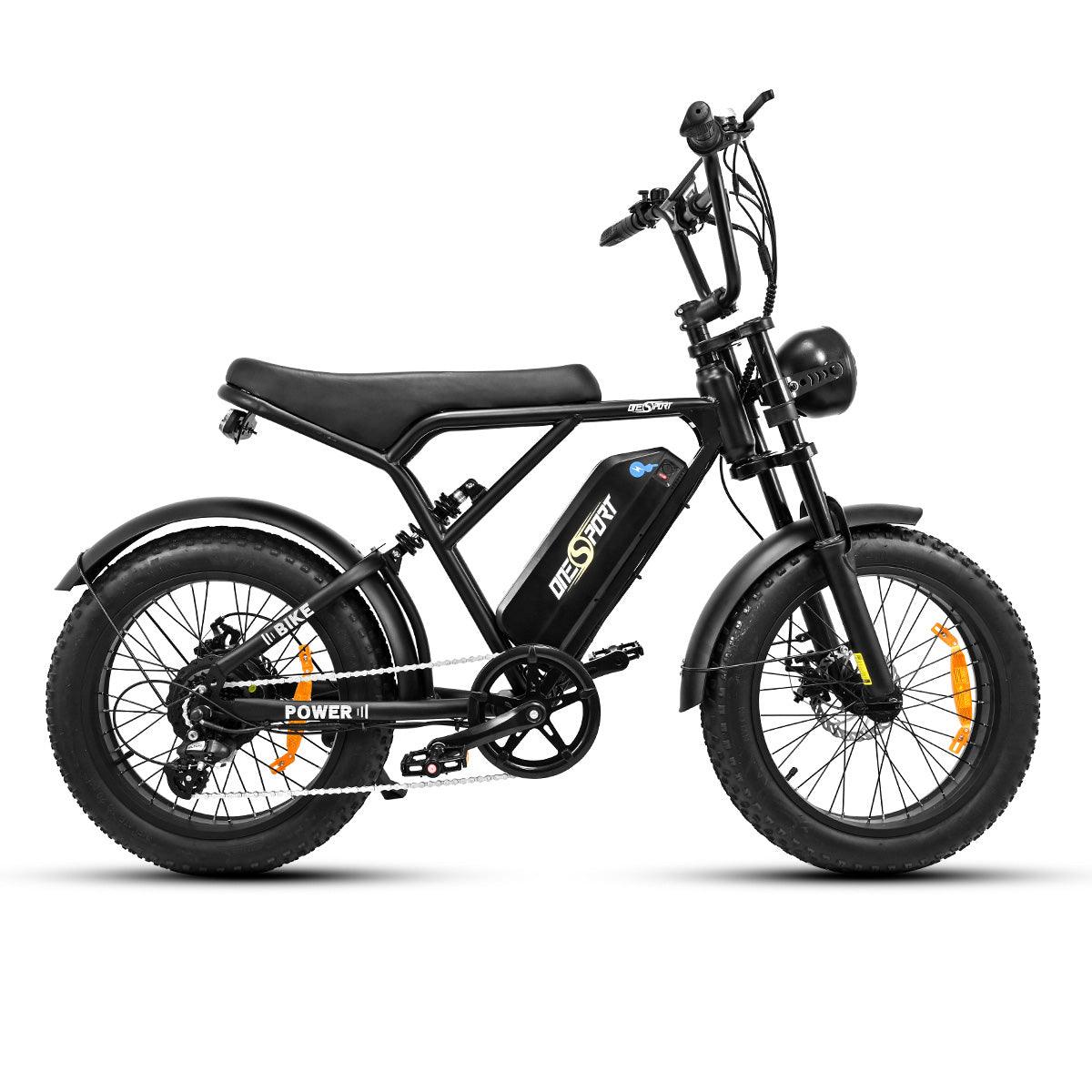

OneSport ONES3 E-Bike
OneSport ONES3 E-Bike
Couldn't load pickup availability

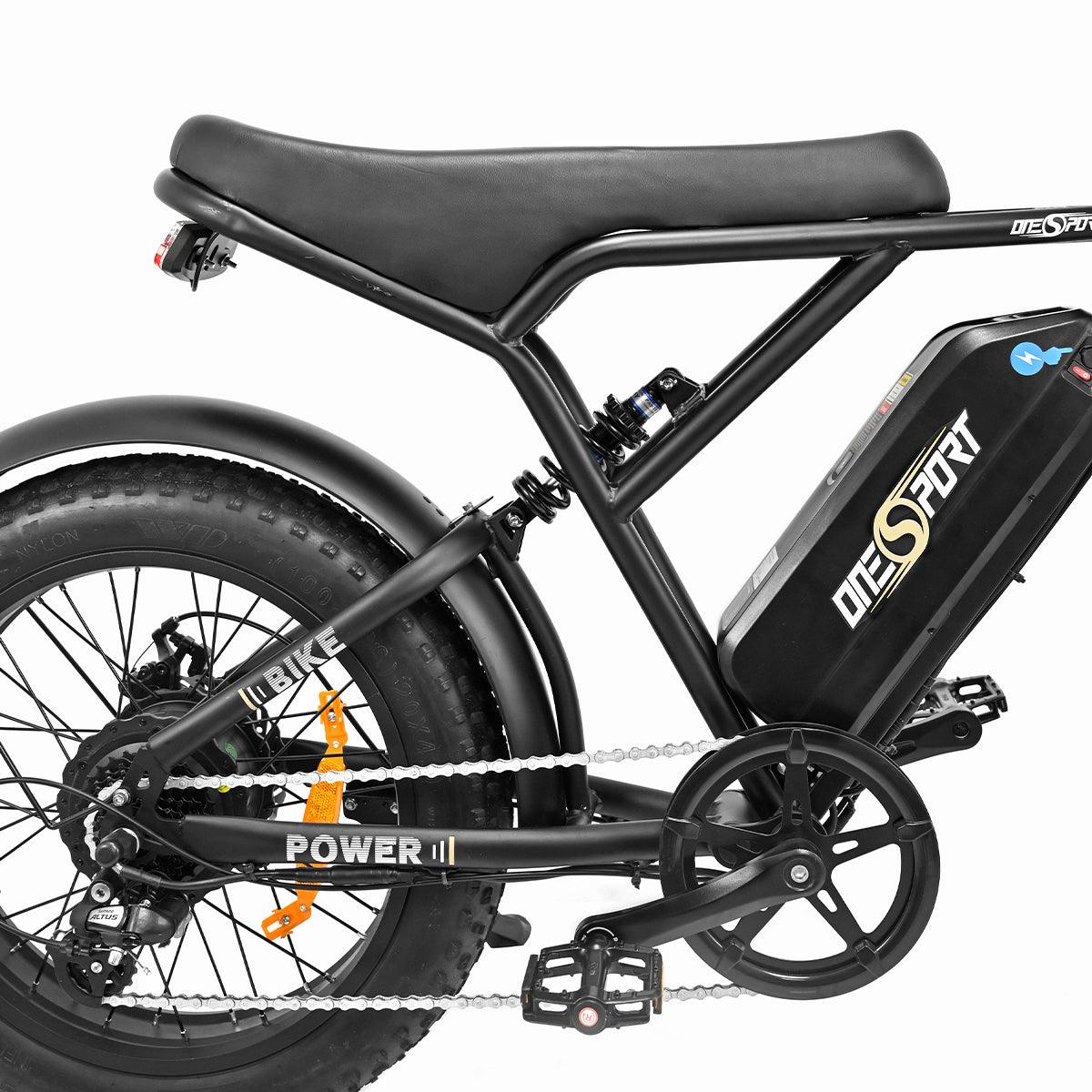

Rear Suspension
ONES3 is equipped with rear suspension, offering enhanced comfort and control on rough terrains. This feature absorbs shocks and bumps, providing a smoother ride and improved traction, ensuring a stable and enjoyable cycling experience, no matter where your adventures take you.

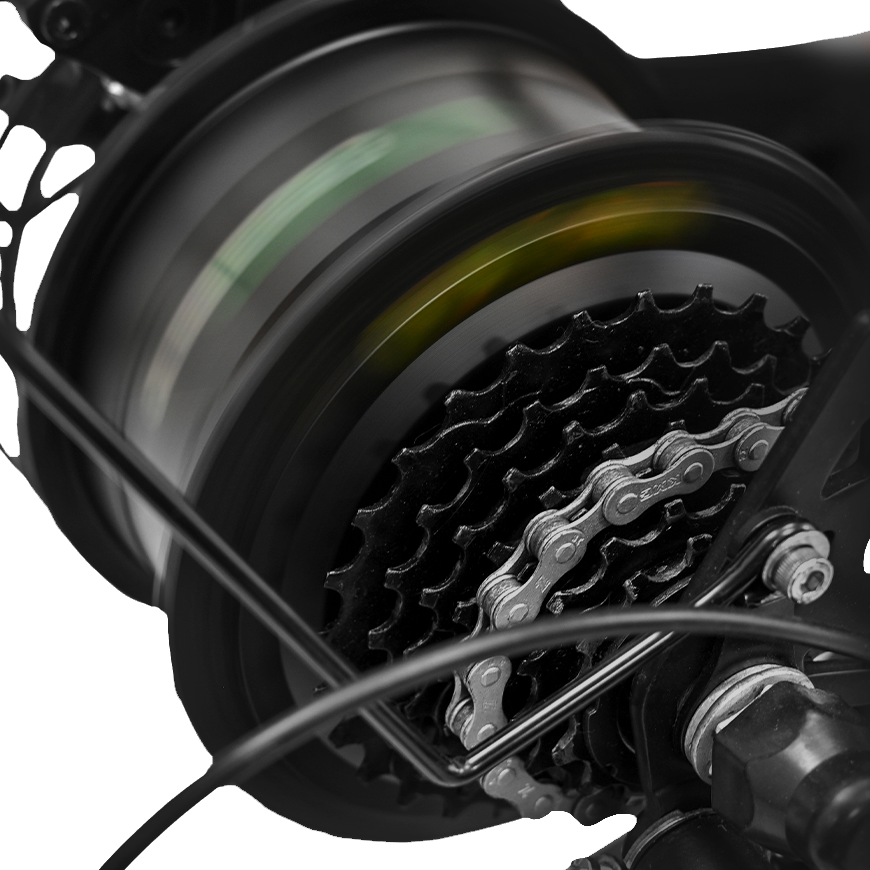

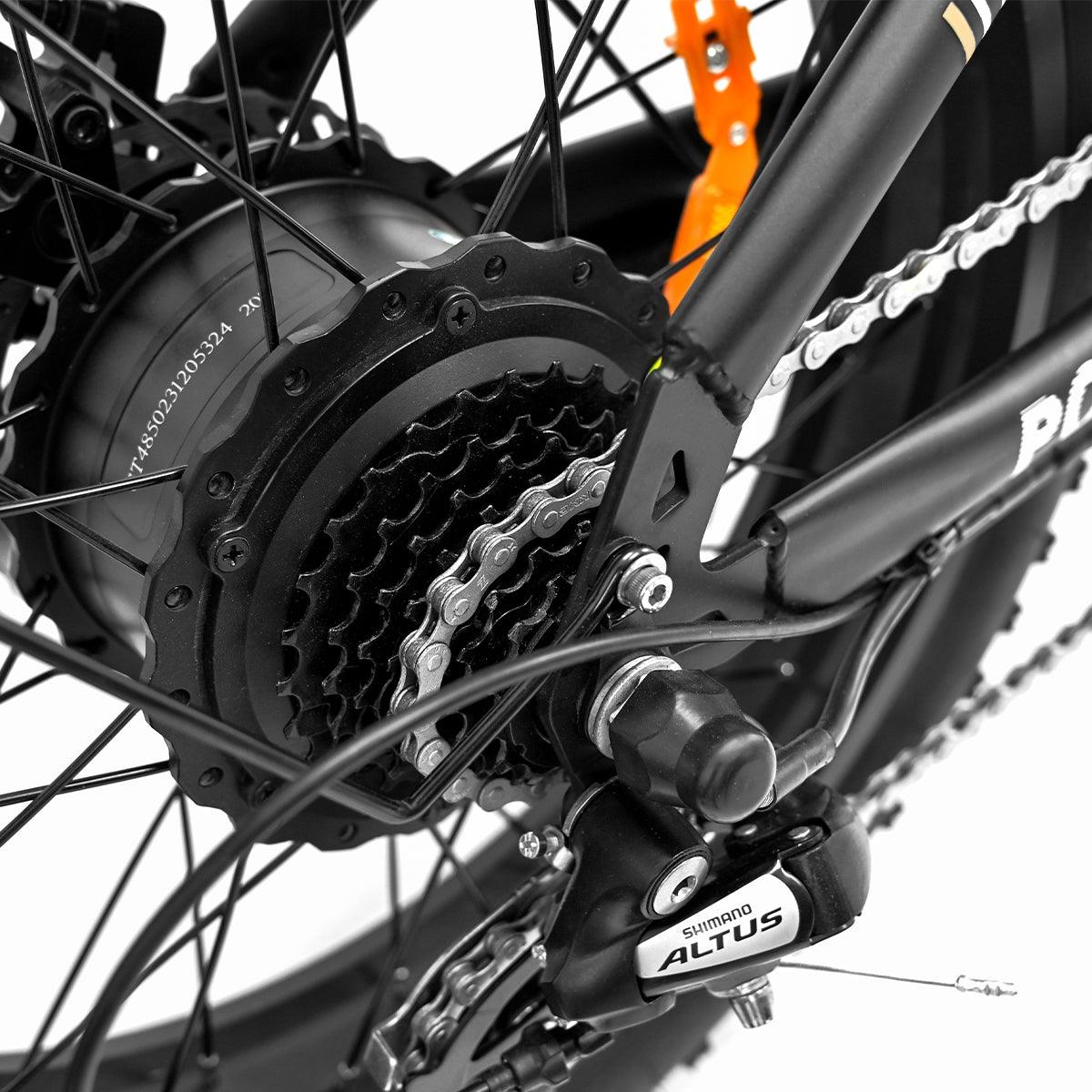

250W Brushless Motor
Features a 250W high-speed brushless motor, providing exceptional power and efficiency for faster acceleration and the ability to effortlessly conquer challenging terrains. Perfect for an exhilarating riding experience.

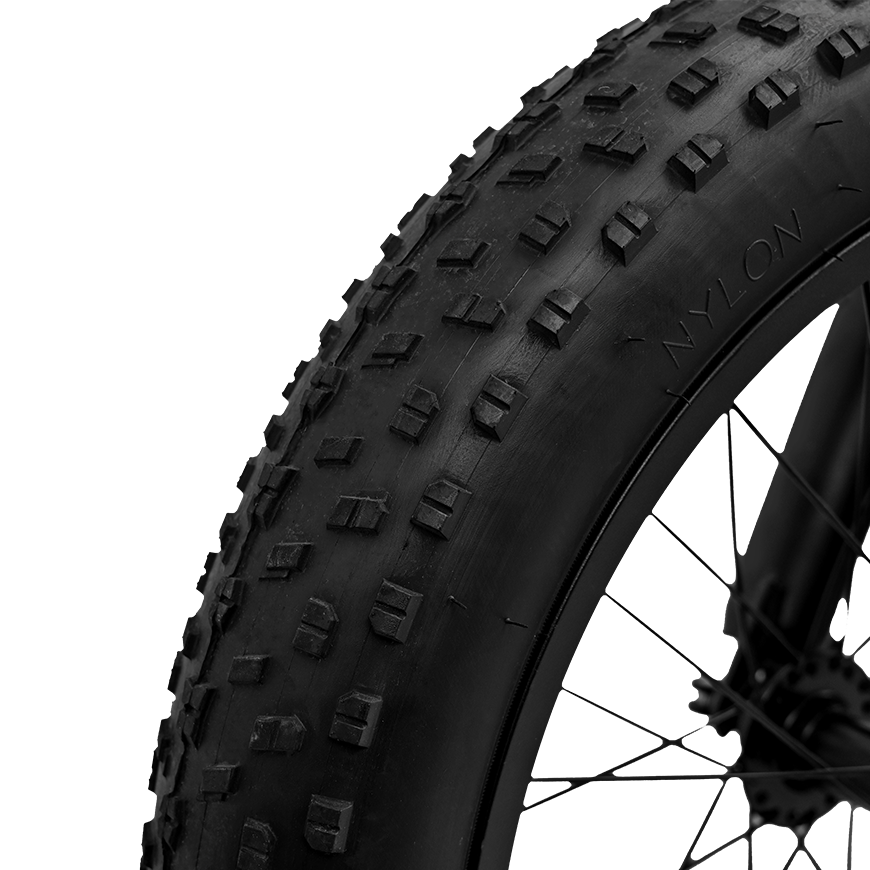

20*4.0 Inch Fat Tires
ONES3 features 20*4.0 inch fat tires, delivering superior traction and stability across all terrains. These wide tires cushion your ride, absorbing bumps and providing a comfortable, smooth experience on both urban streets and rugged trails. Ideal for adventurers and daily commuters alike, seeking reliability and comfort in their ride.
Body Material
Steel
Color
Black
Maximum Load
120KG
Maximum Speed
25KM/H
Range
50KM In Pure Electric Mode
Maximum Climbing Angle
30 Degree
Instrument Display
Multifunctional LCD Screen
Front Lighting
Include
Tail Light
Include
Braking Method
Front Disc Brake + Rear Disc Brake
Hub Form
Spoke Wheel
Tire Specifications
Pneumatic Tires
Front Fork
Shock Absorbing Front Fork
Gear
7 Speeds Transmission

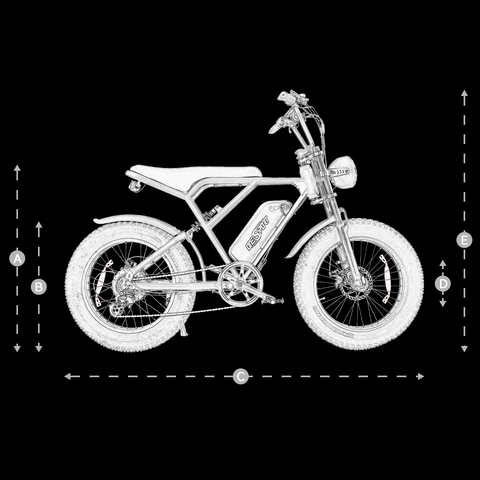

Length
1610MM
Rear Height
660MM
Front Height
1160MM
Packing Size
1680MM*300MM*850MM
Battery size
428.6MM*94.8MM*123.8MM
Tire Size
20 x 4.0 Inches
Net Weight/Gross Weight
33KG/41KG
Front Fork Travel
60MM
Saddle Height
830MM

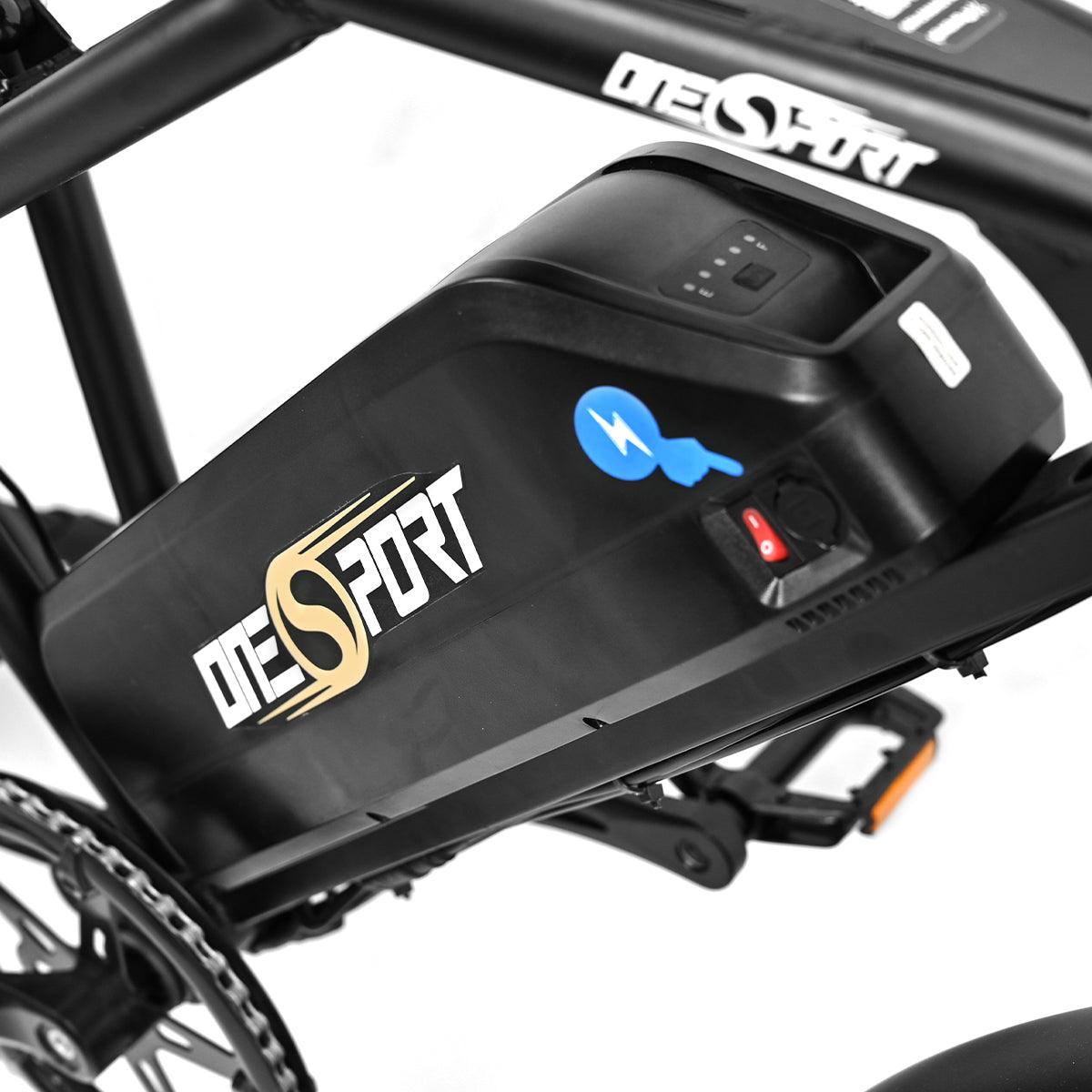

Battery Type
18650Lithium Ion Power Battery
Battery Capacity
15Ah
Battery Rated Voltage
48V
Motor Form
Assist Mode
Motor Type
20 Inches / High-speed Gear / Spoke Wheel Brush-less Motor
Motor Rated Power
250W~500W
Motor Rated No-Load Speed
380±10r/Min
Controller
9-MOSFET Controller
Charger Output
54.6V 2.0A
Charger Input
100~240V 50/60Hz 3.0A
Under voltage Protection Value
39V
Over Current Protection Value
20±1A
Charging Time
7.5-8 Hours
Proper Temperature
-10°C-45 °C
Waterproof Level
IP54
More details

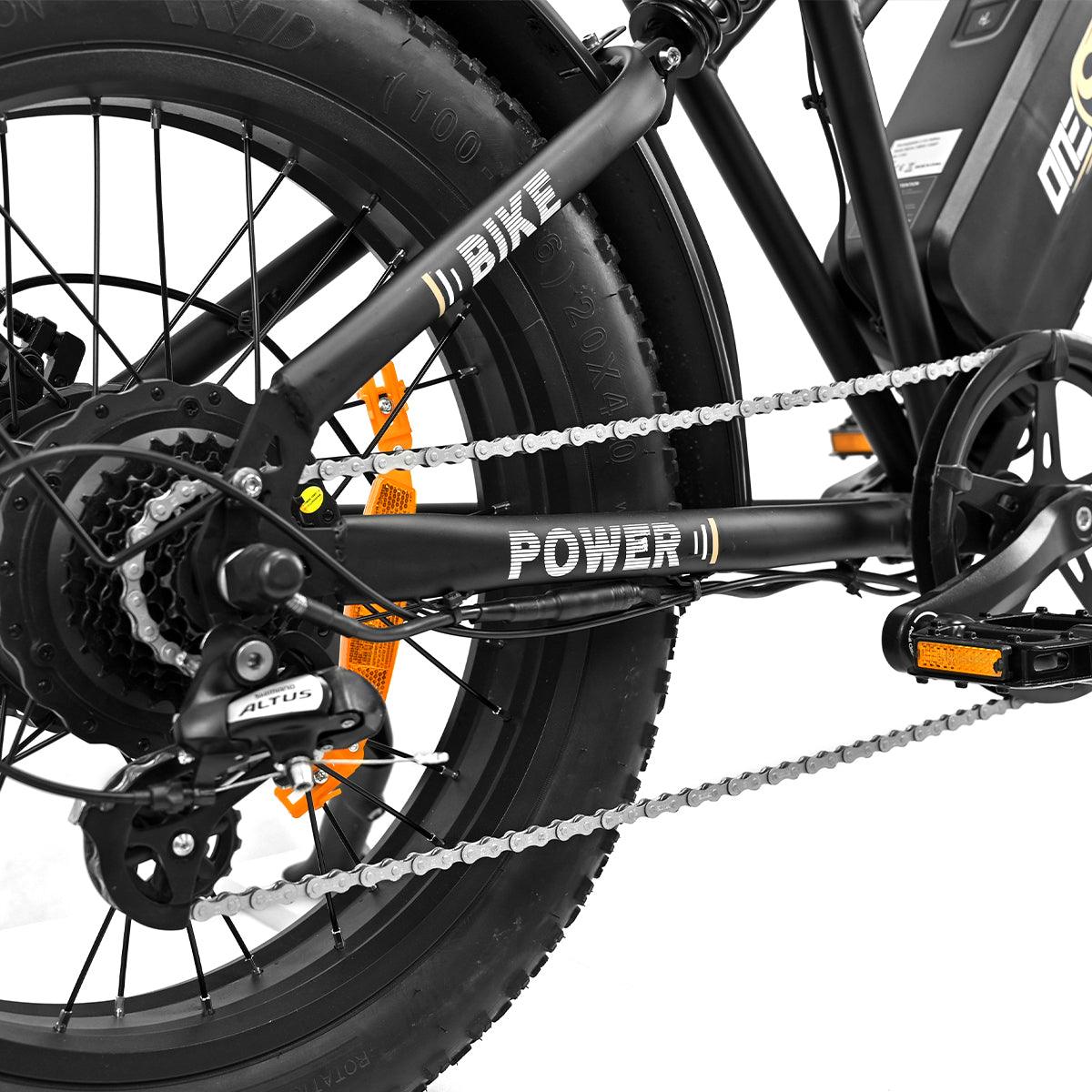

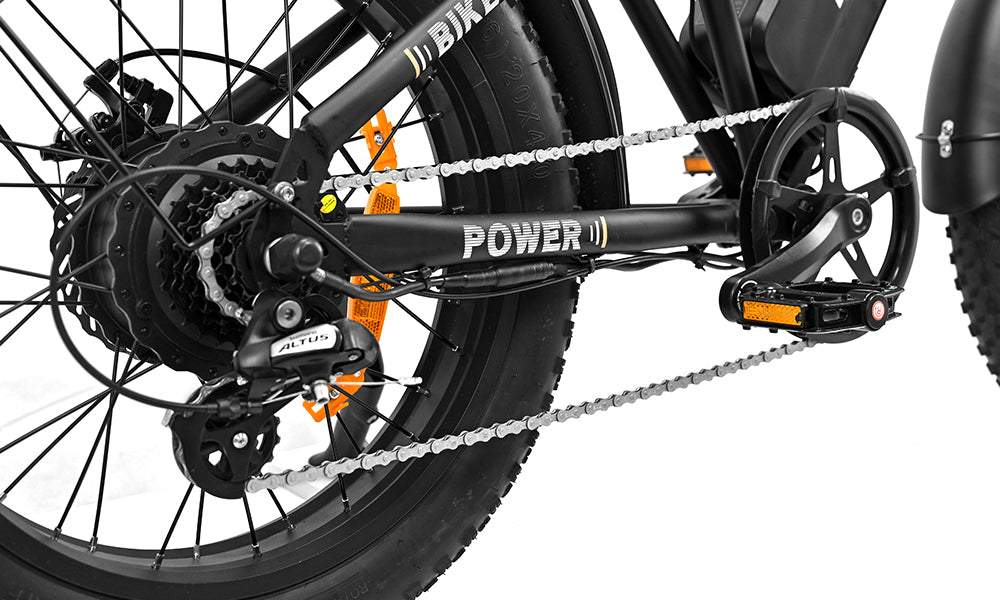

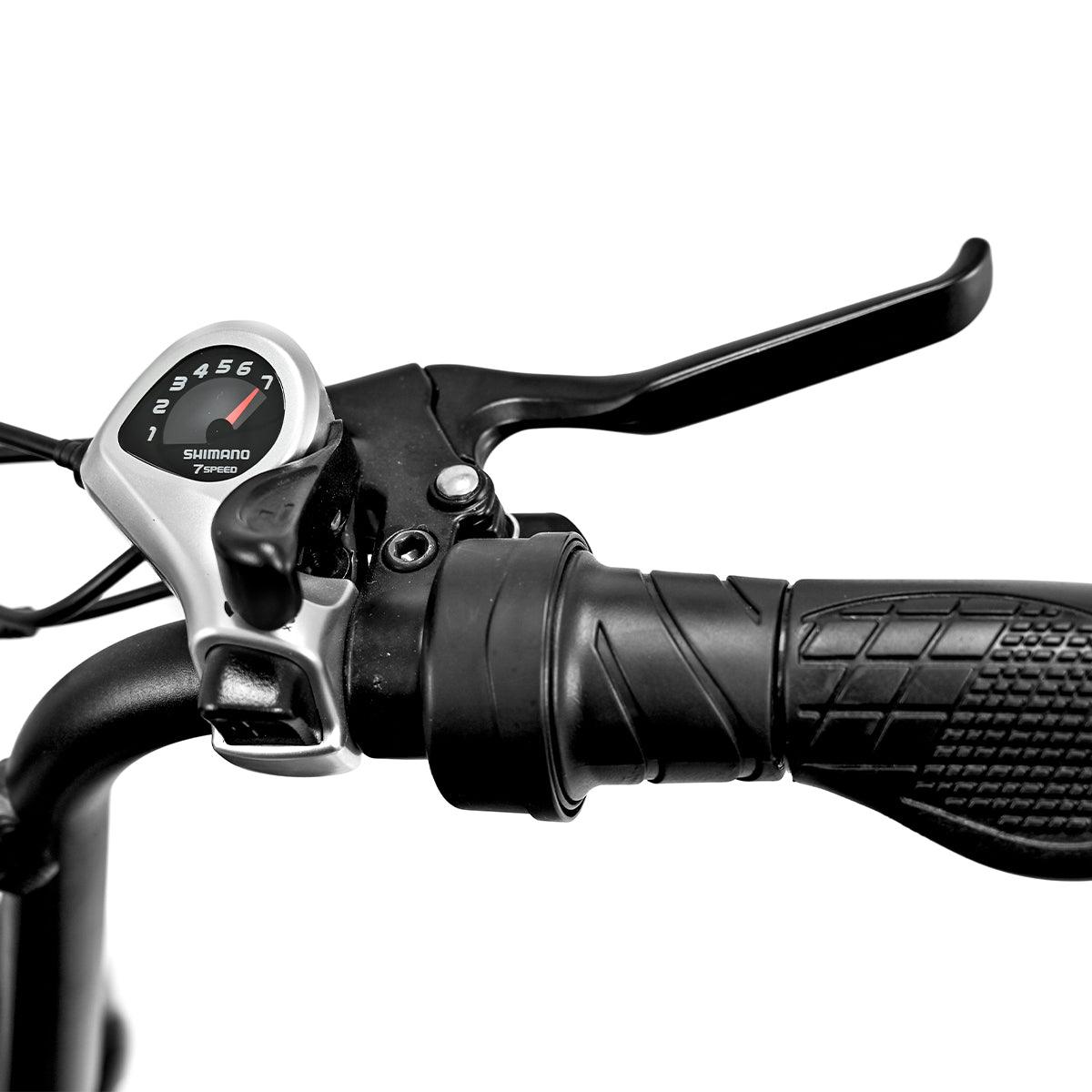

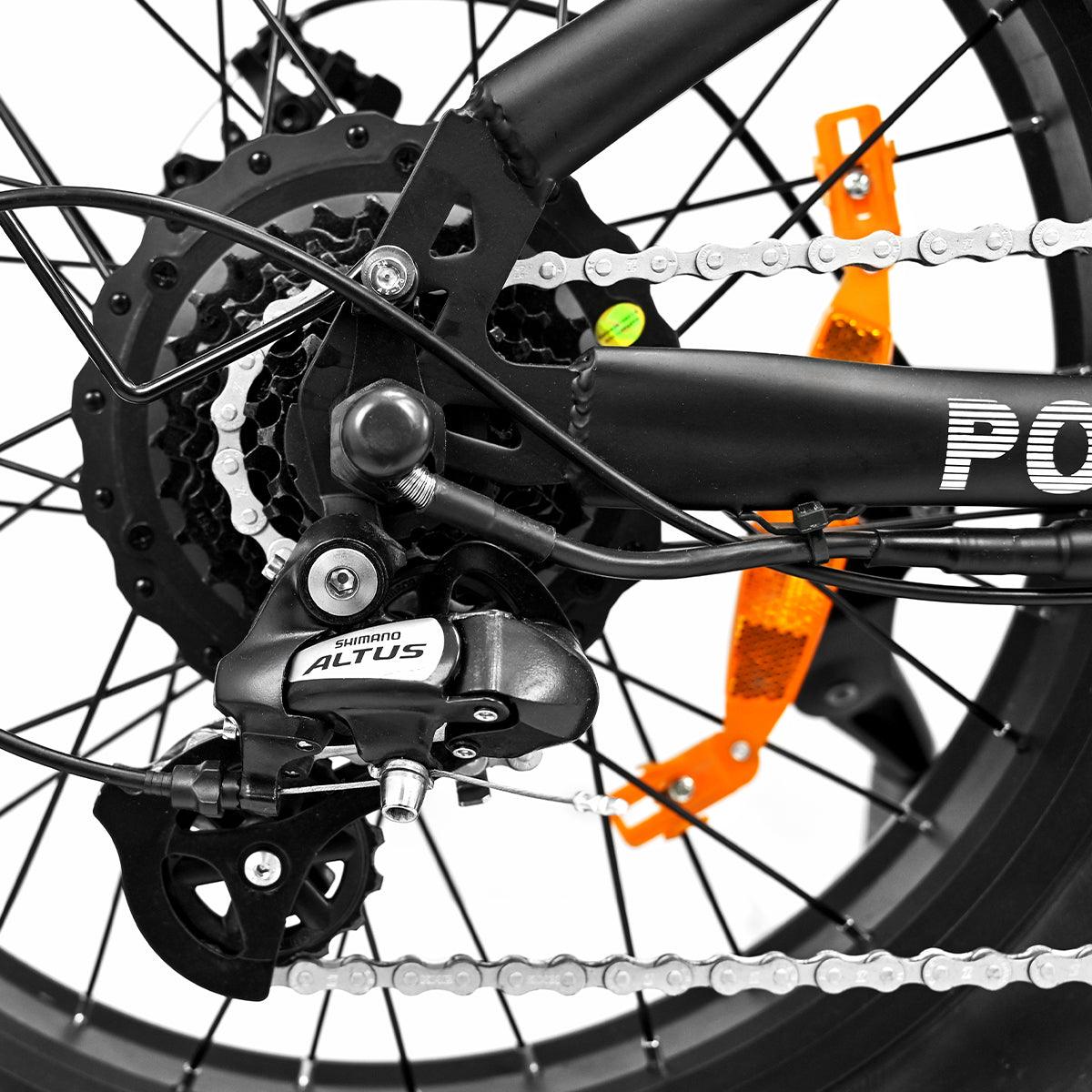

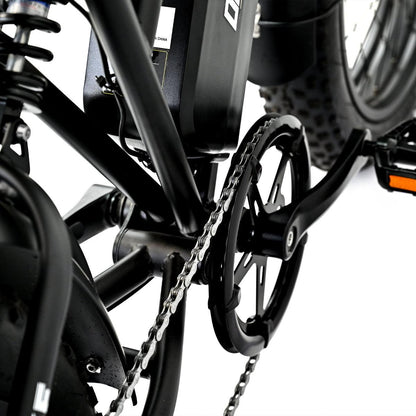

Transmission
Features a Shimano 7-speed gear system, offering seamless shifting and a wide range of gears to suit any terrain, from steep hills to flat roads. Enjoy a smooth, adaptable ride with every journey.

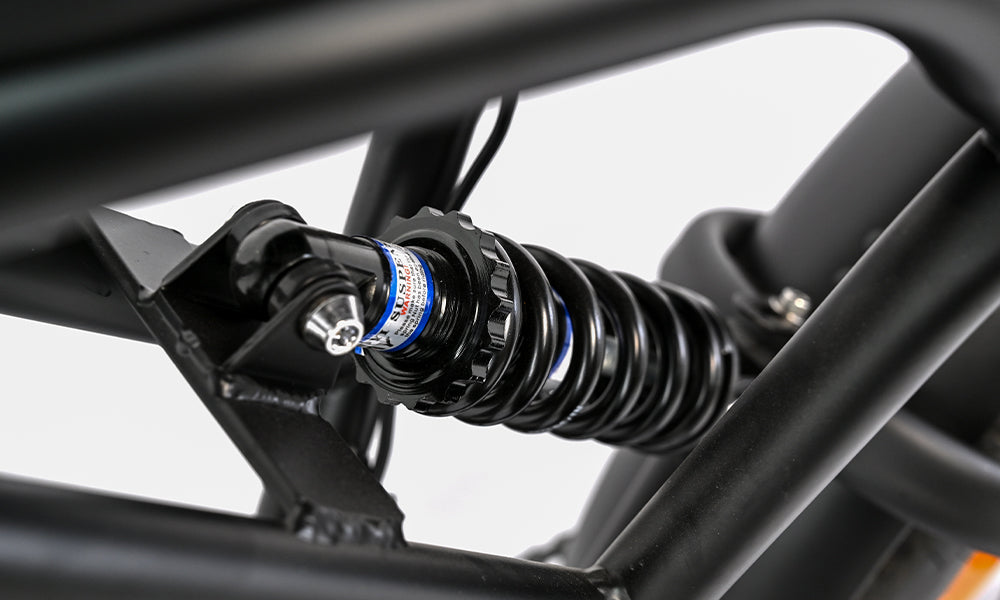

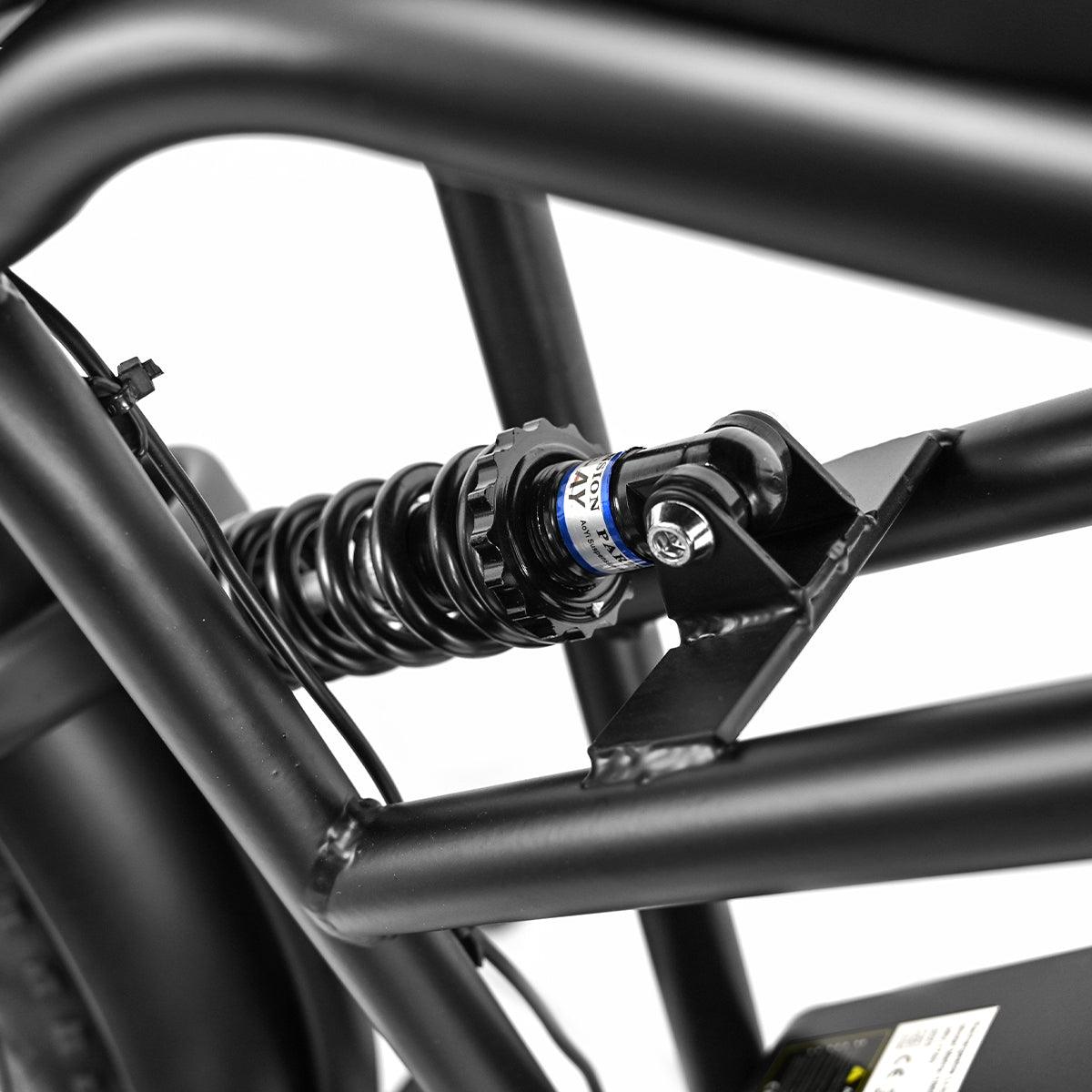

Central Suspension
Designed with a central suspension system, offering effective shock absorption for a smoother ride. It enhances comfort and control, especially on bumpy or uneven terrains.

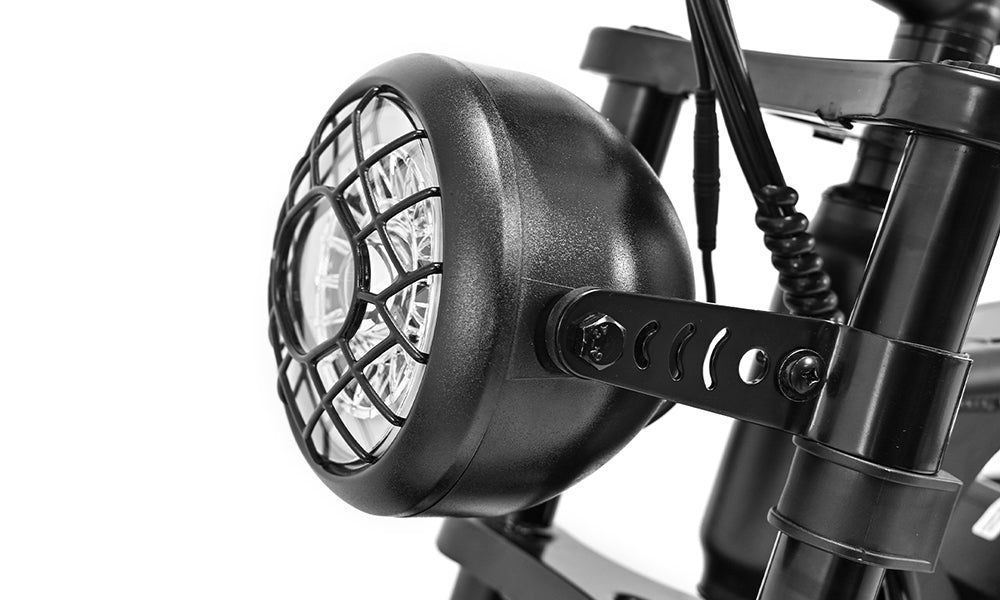

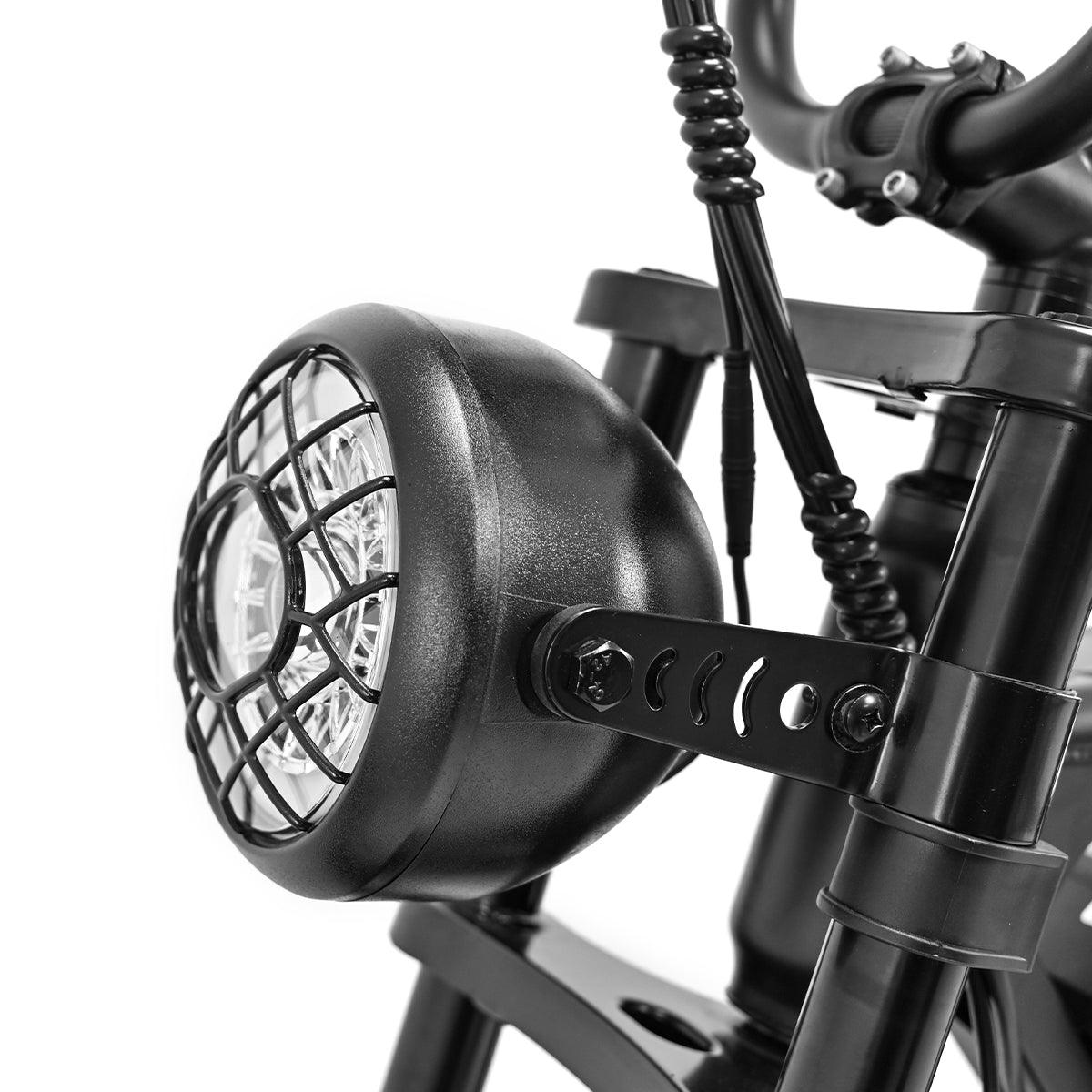

Lamp
Equipped with a front light, enhancing visibility and safety during your rides, especially in low-light conditions or at night. It ensures a safer, more confident cycling experience.

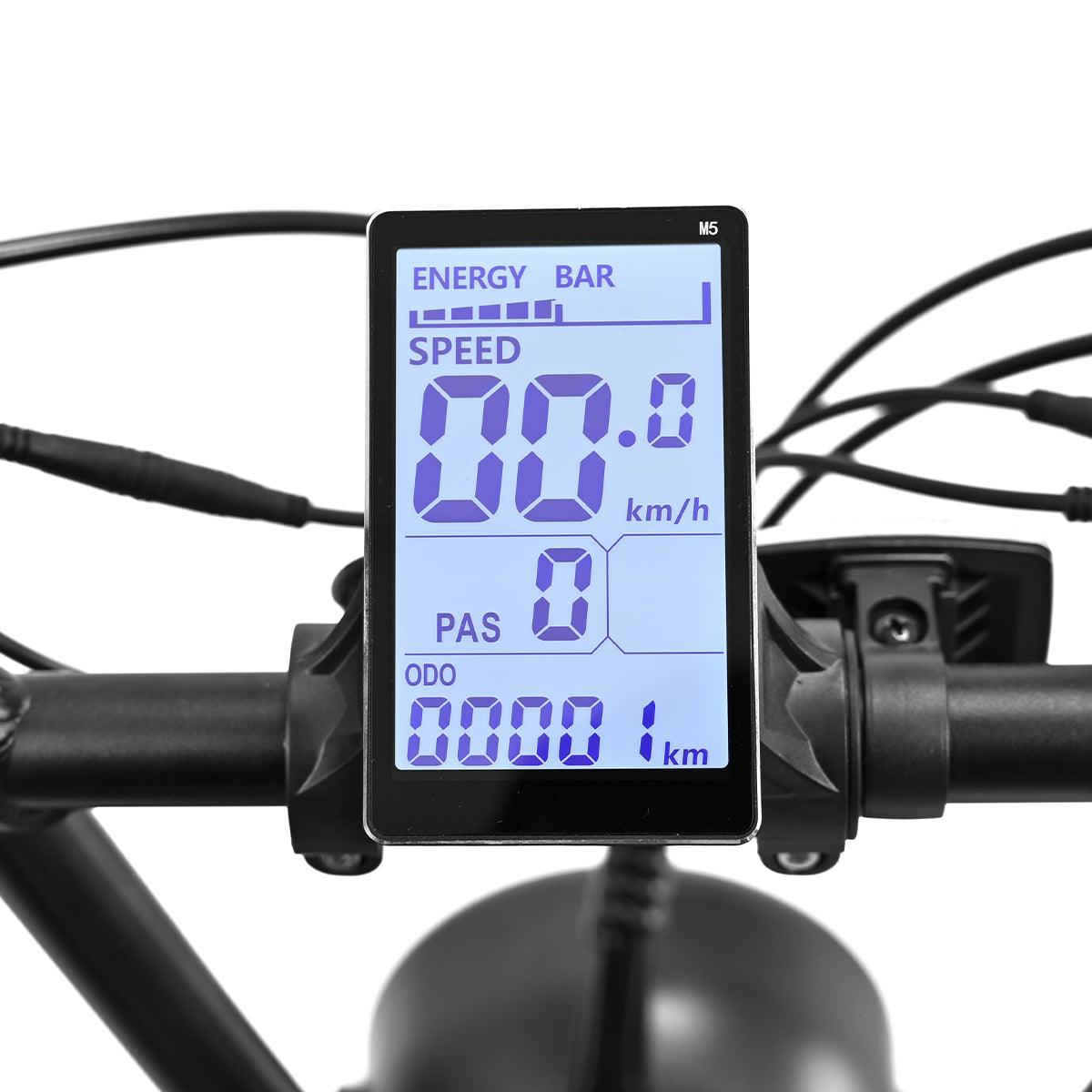

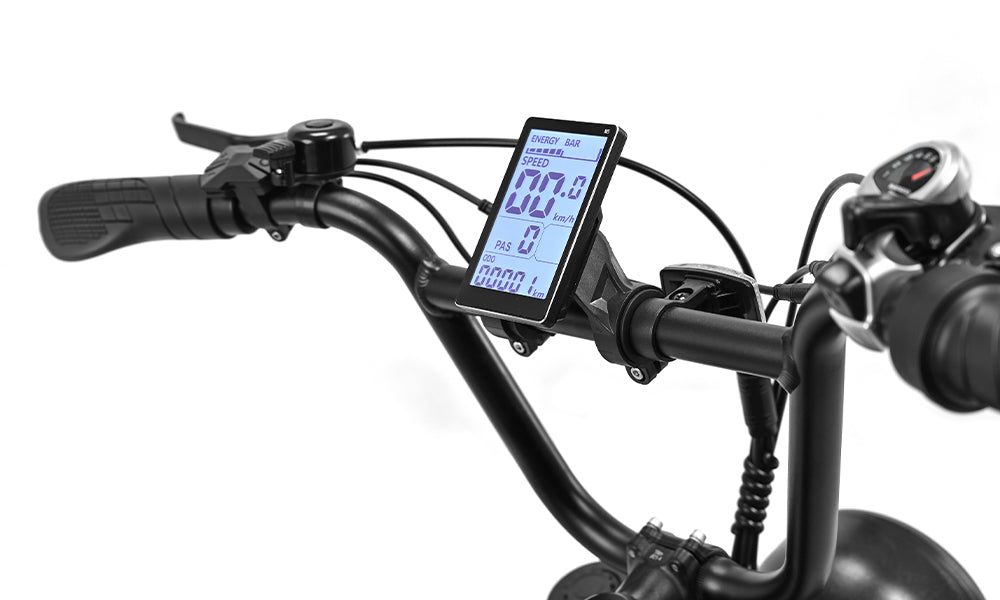

Screen
Equipped with a liquid LCD display, offers clear, easy-to-read information at a glance, enhancing your riding experience with real-time data on speed, battery life, and more.

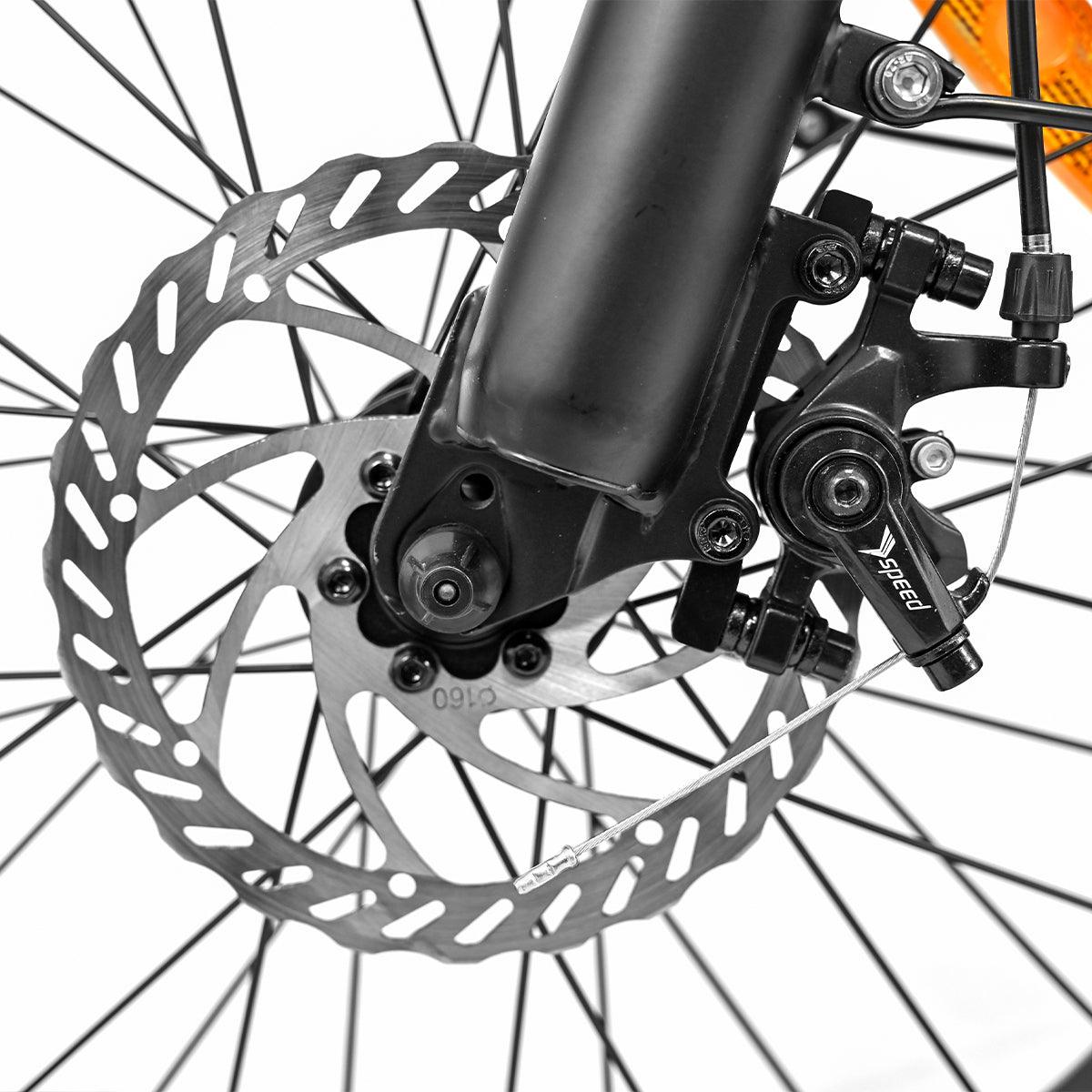

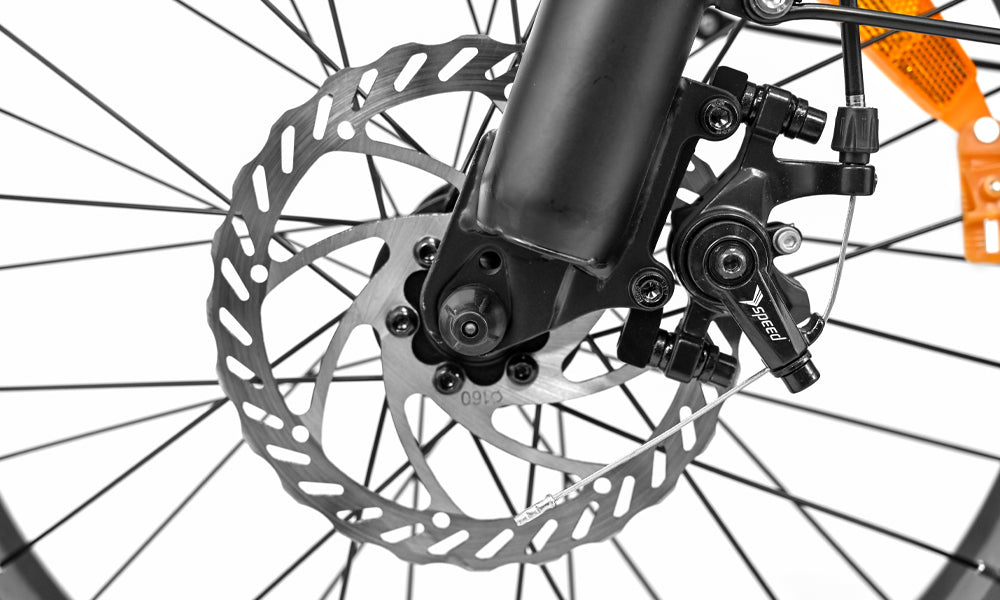

Brake
Equipped with mechanical disc brakes, providing reliable and responsive stopping power for enhanced safety and control in all riding conditions.

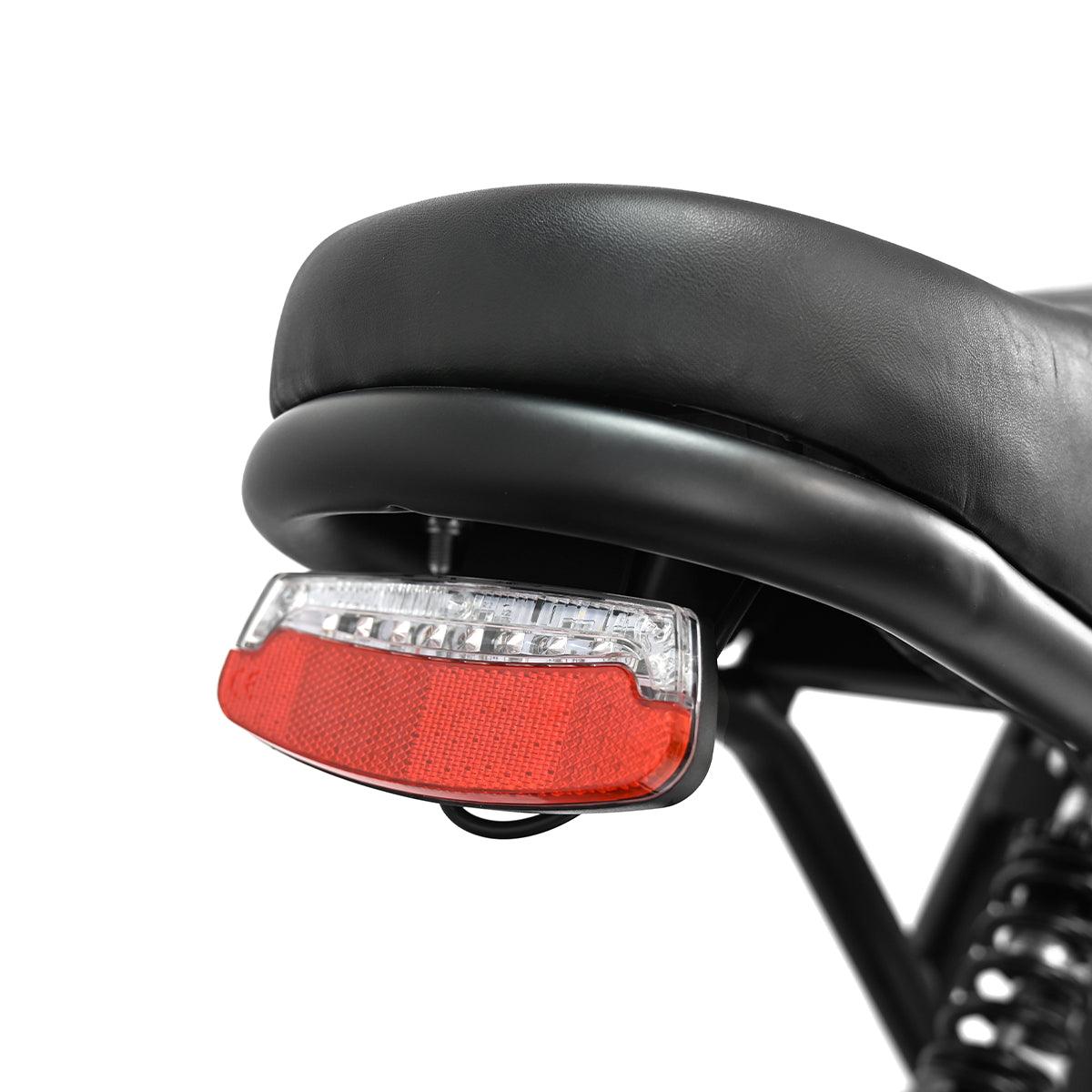

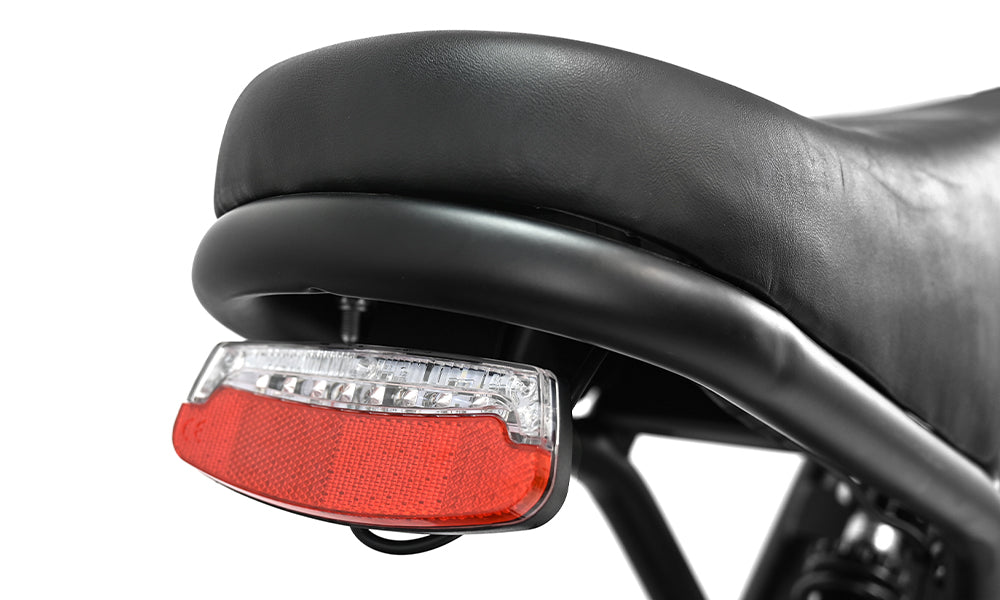

Tail Light
Equipped with a power-cut tail light, designed for enhanced safety. This feature ensures that the tail light is automatically activated when you brake, significantly increasing visibility to others on the road, especially in low-light conditions.
