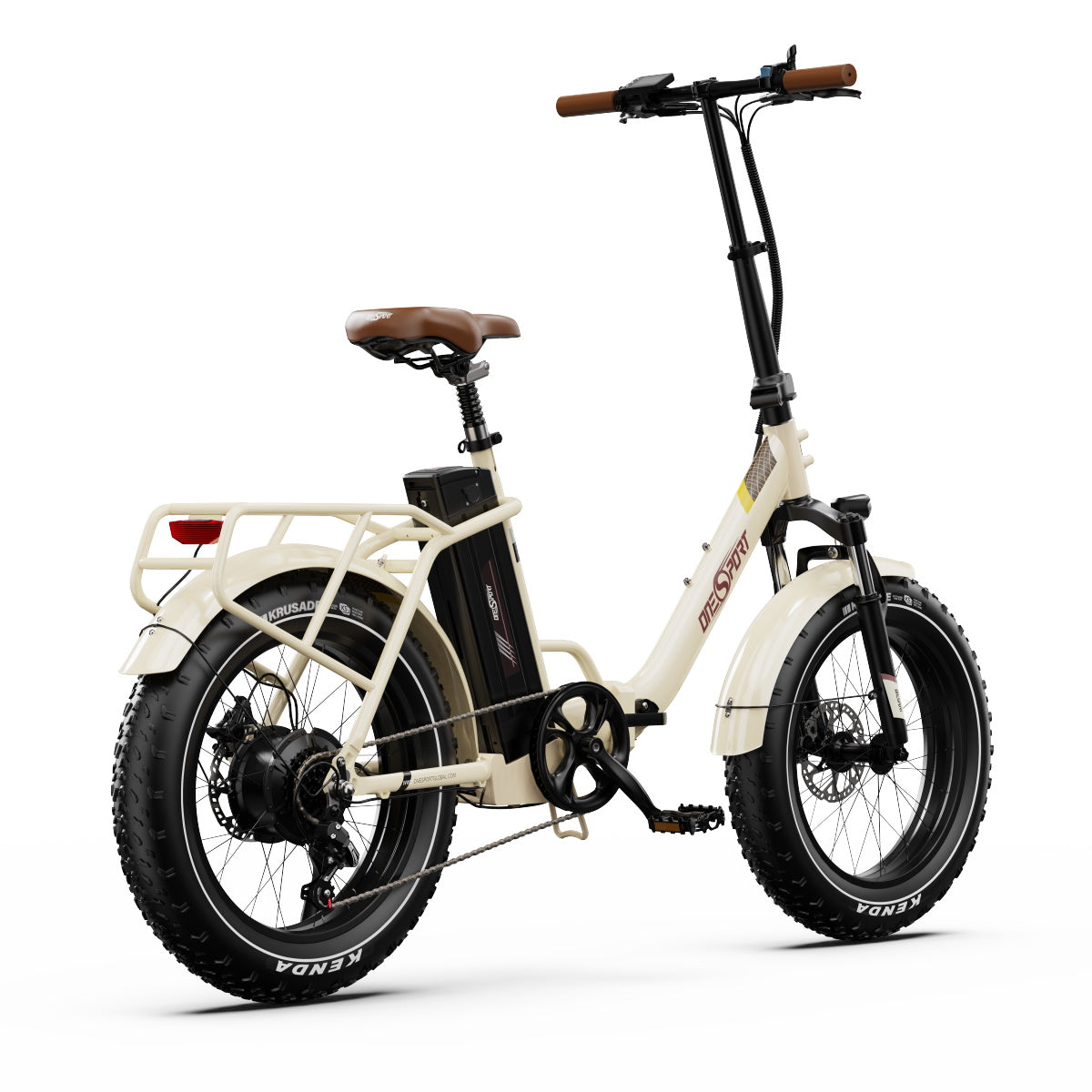

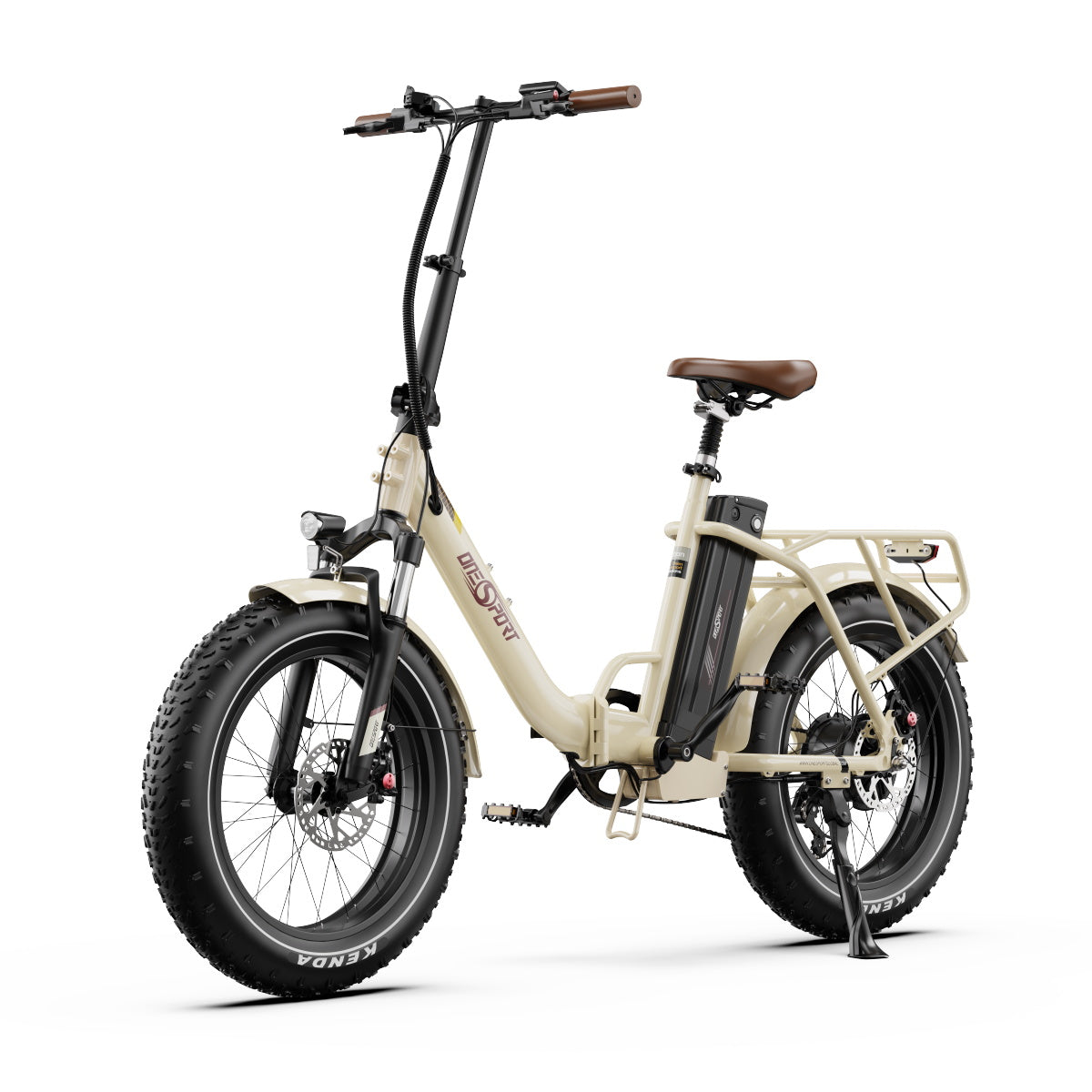

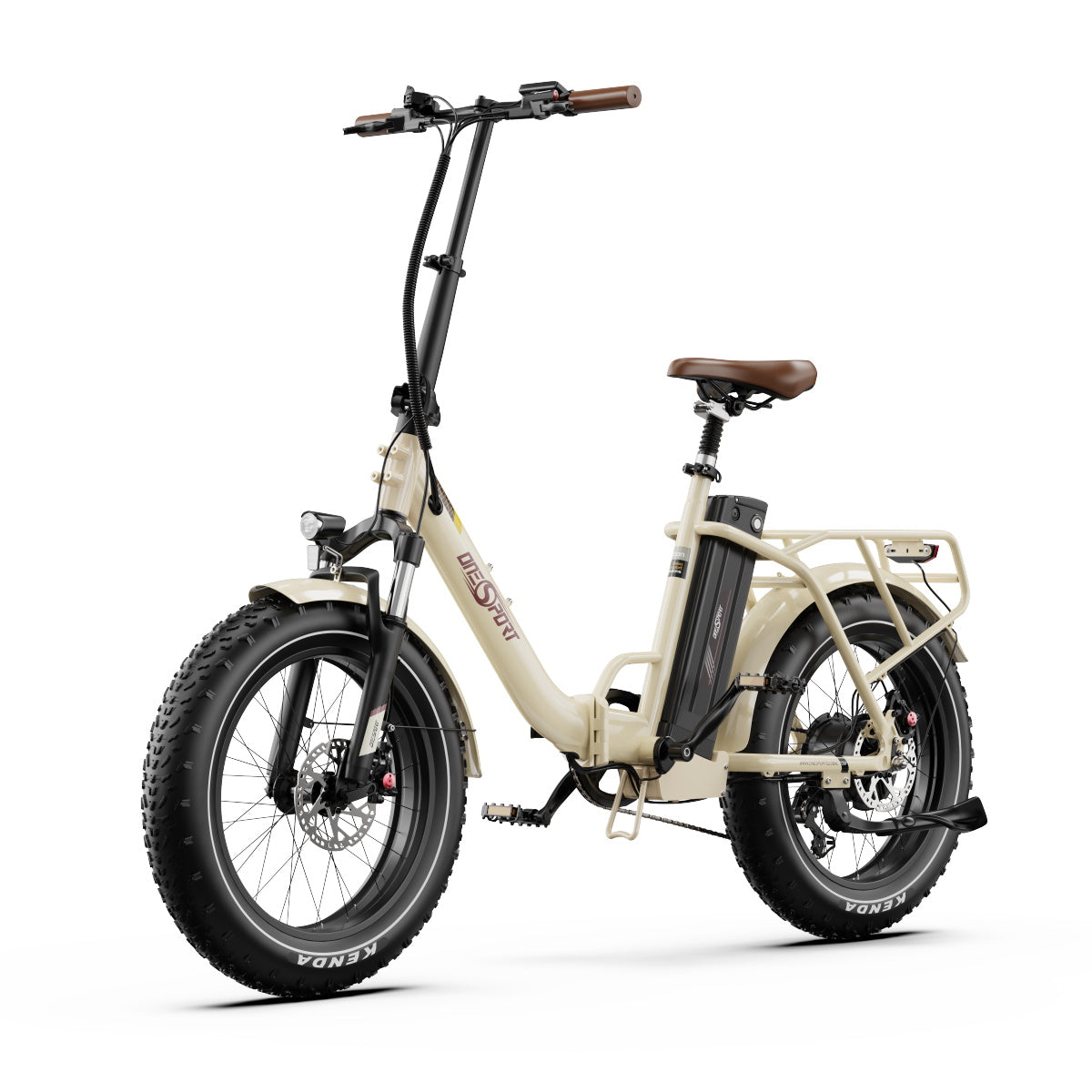

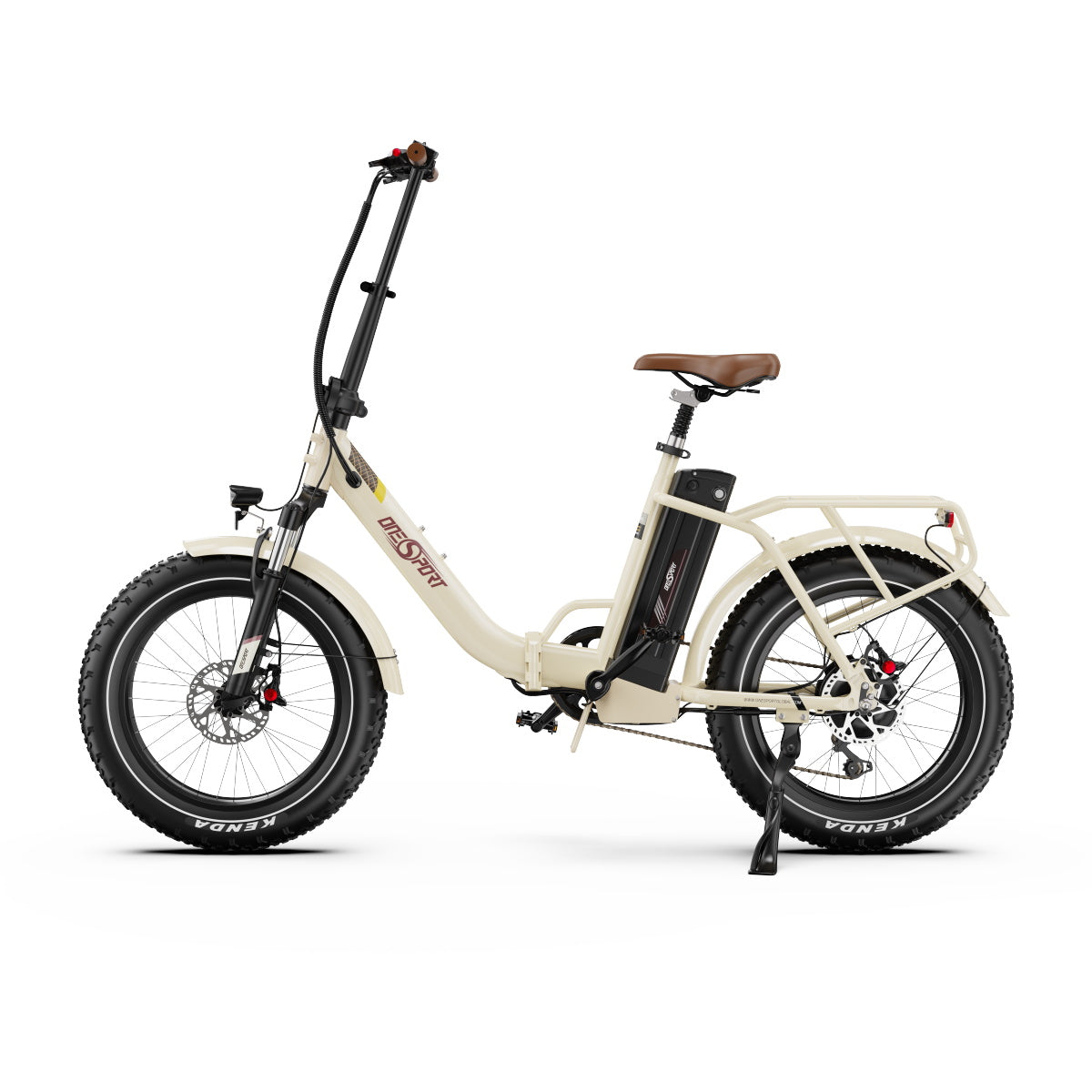

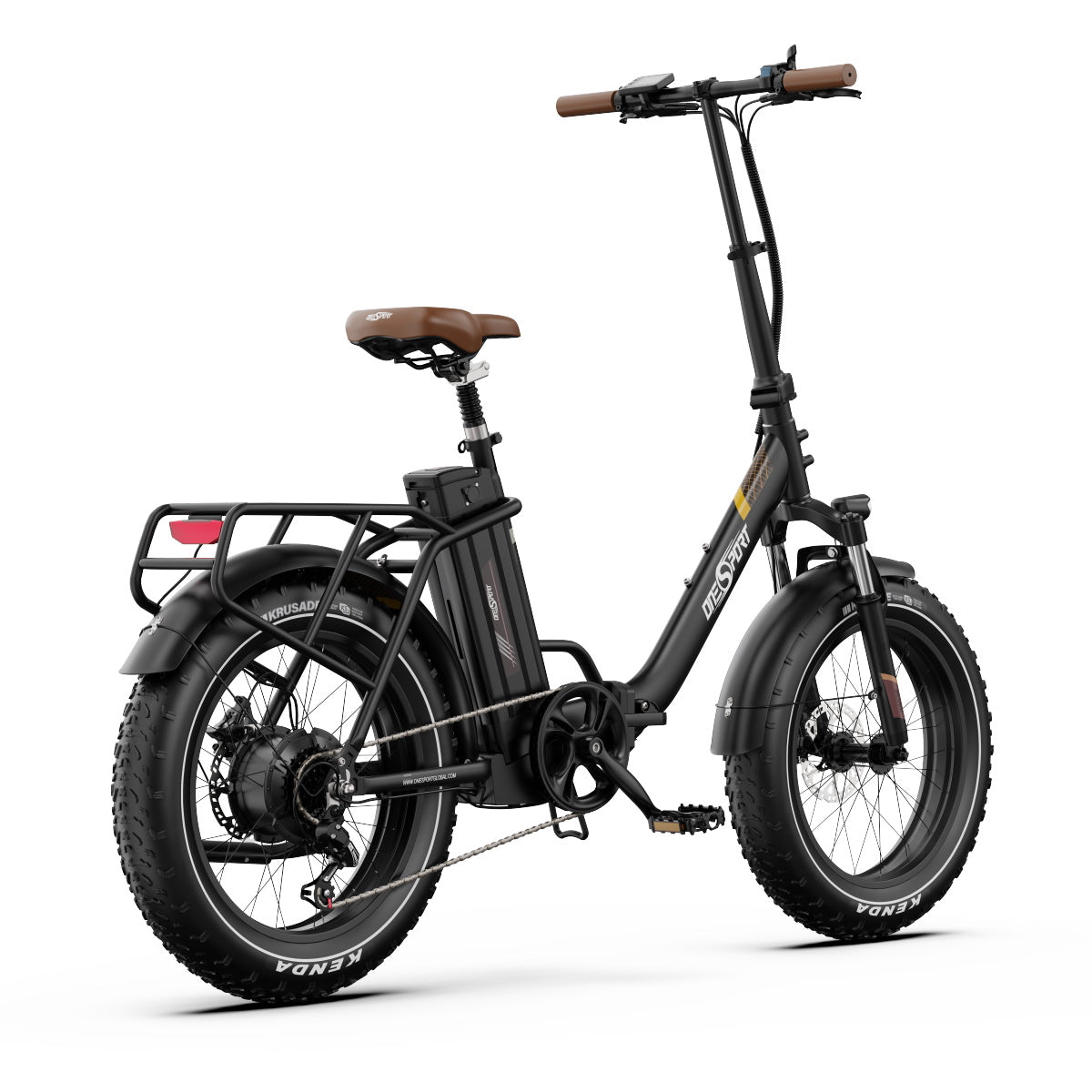

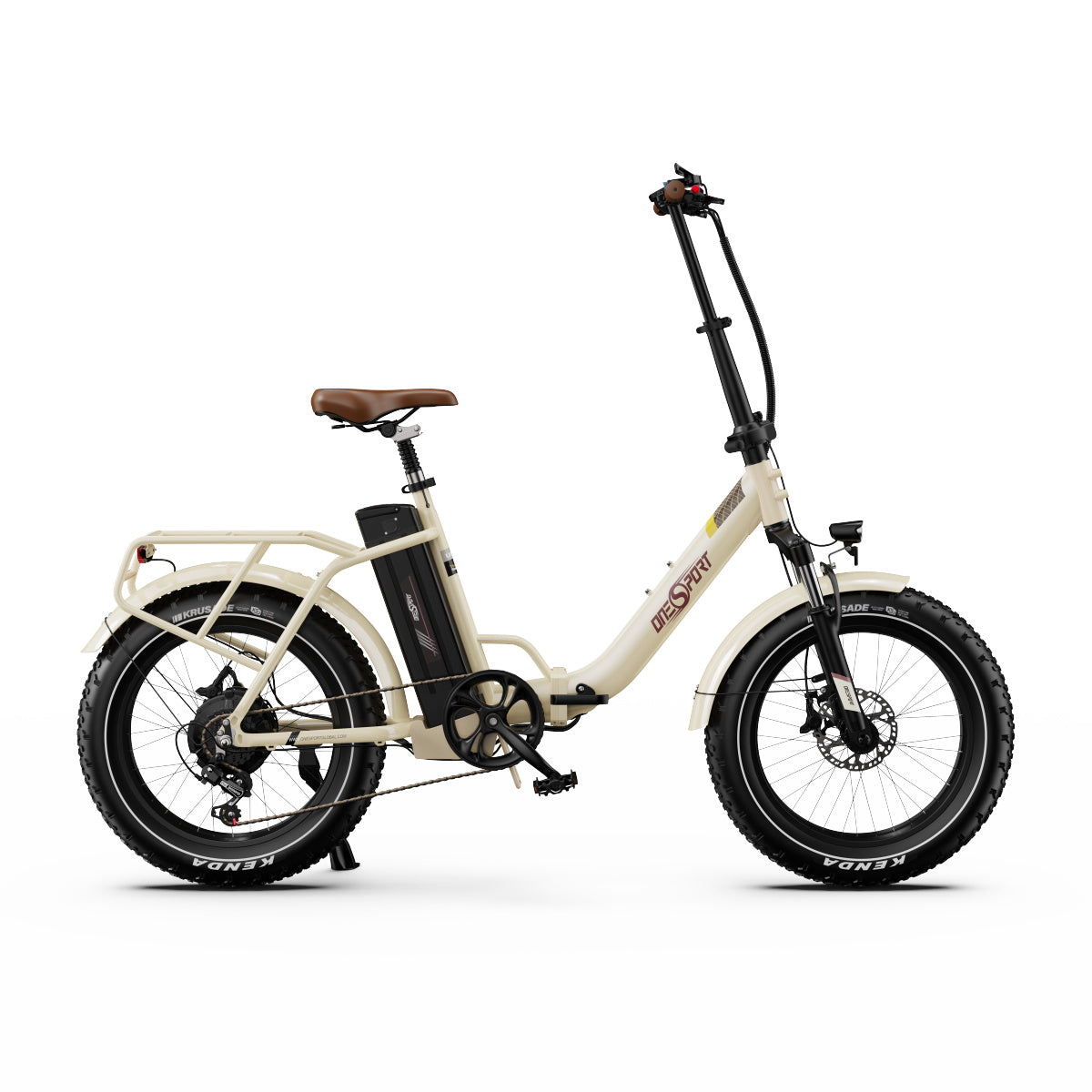

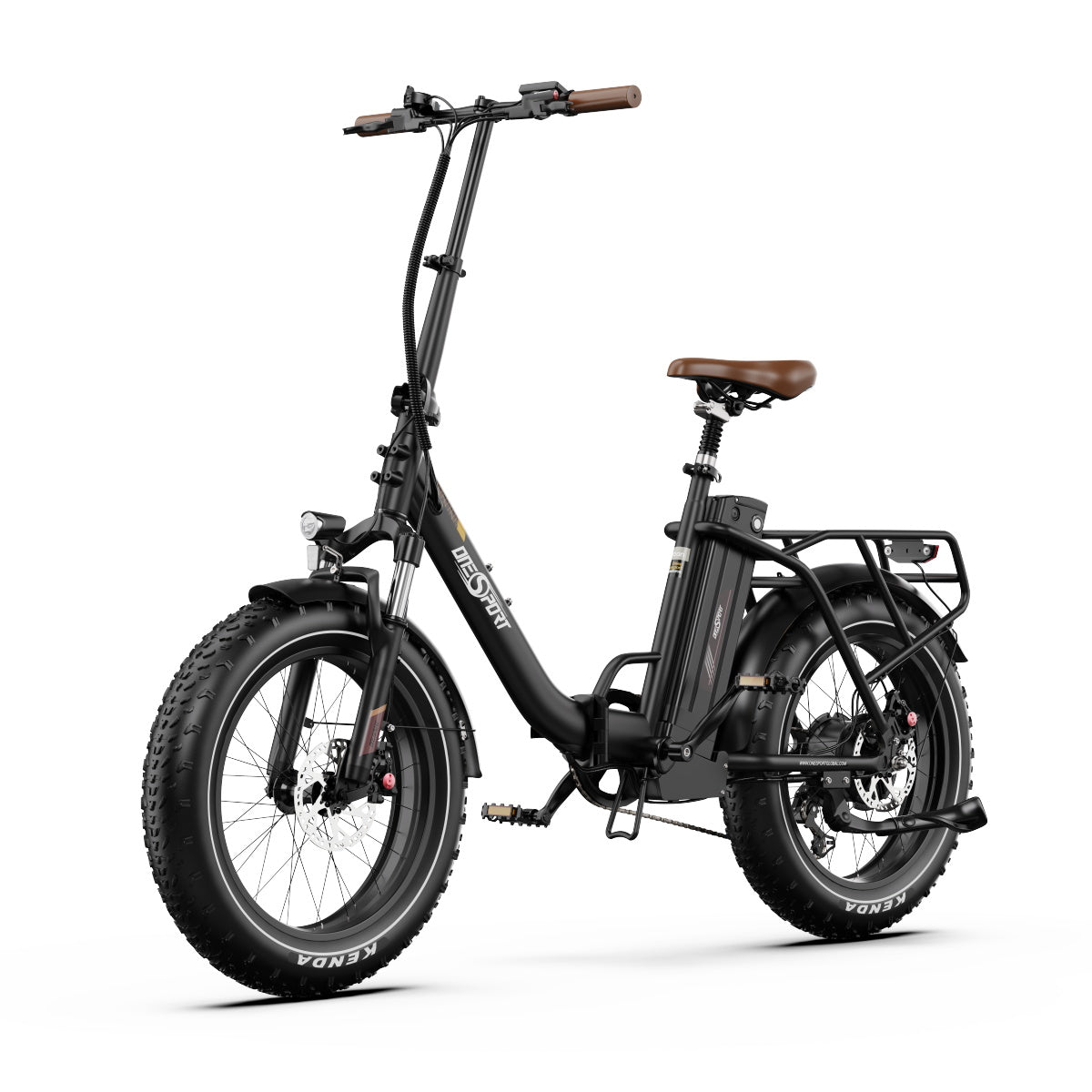

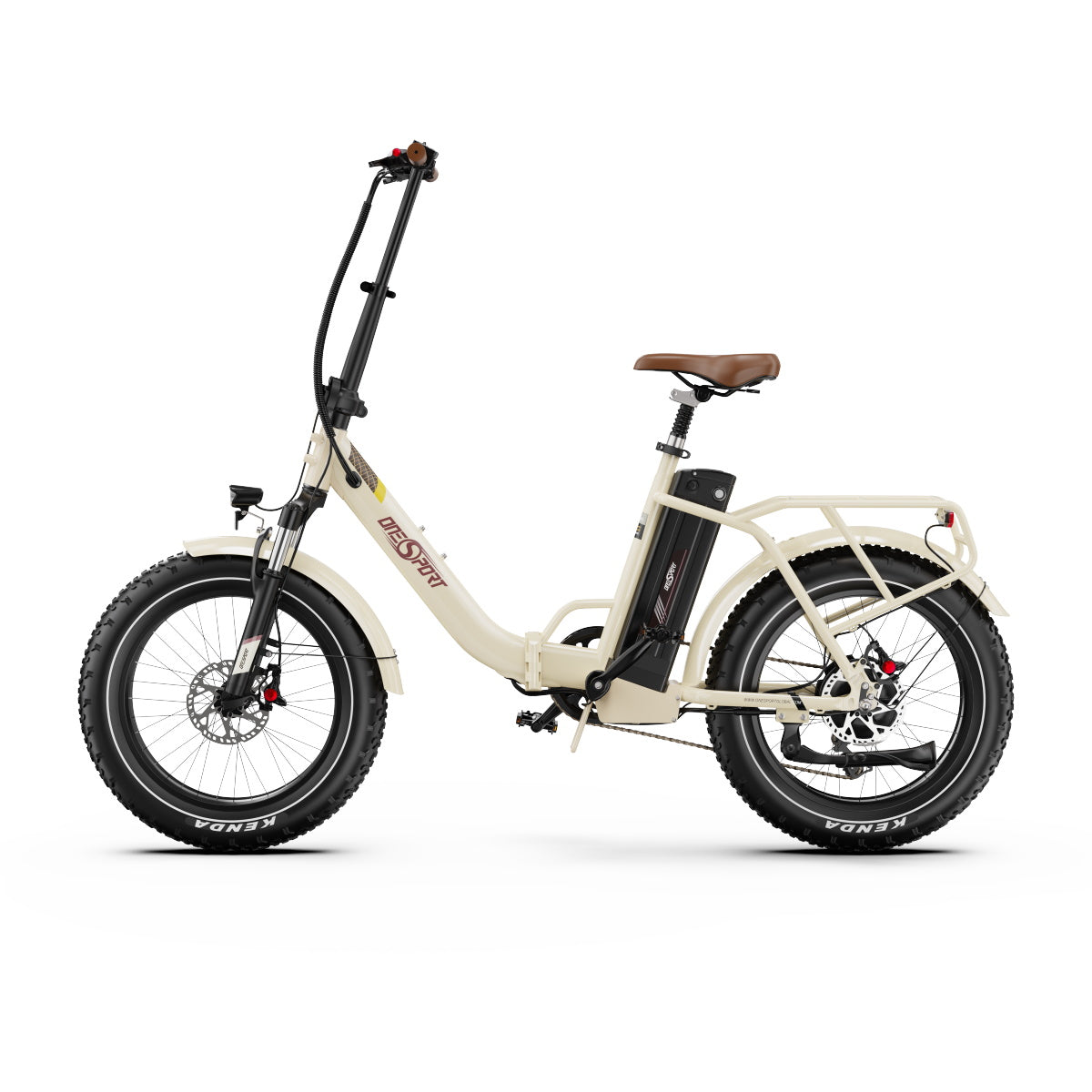

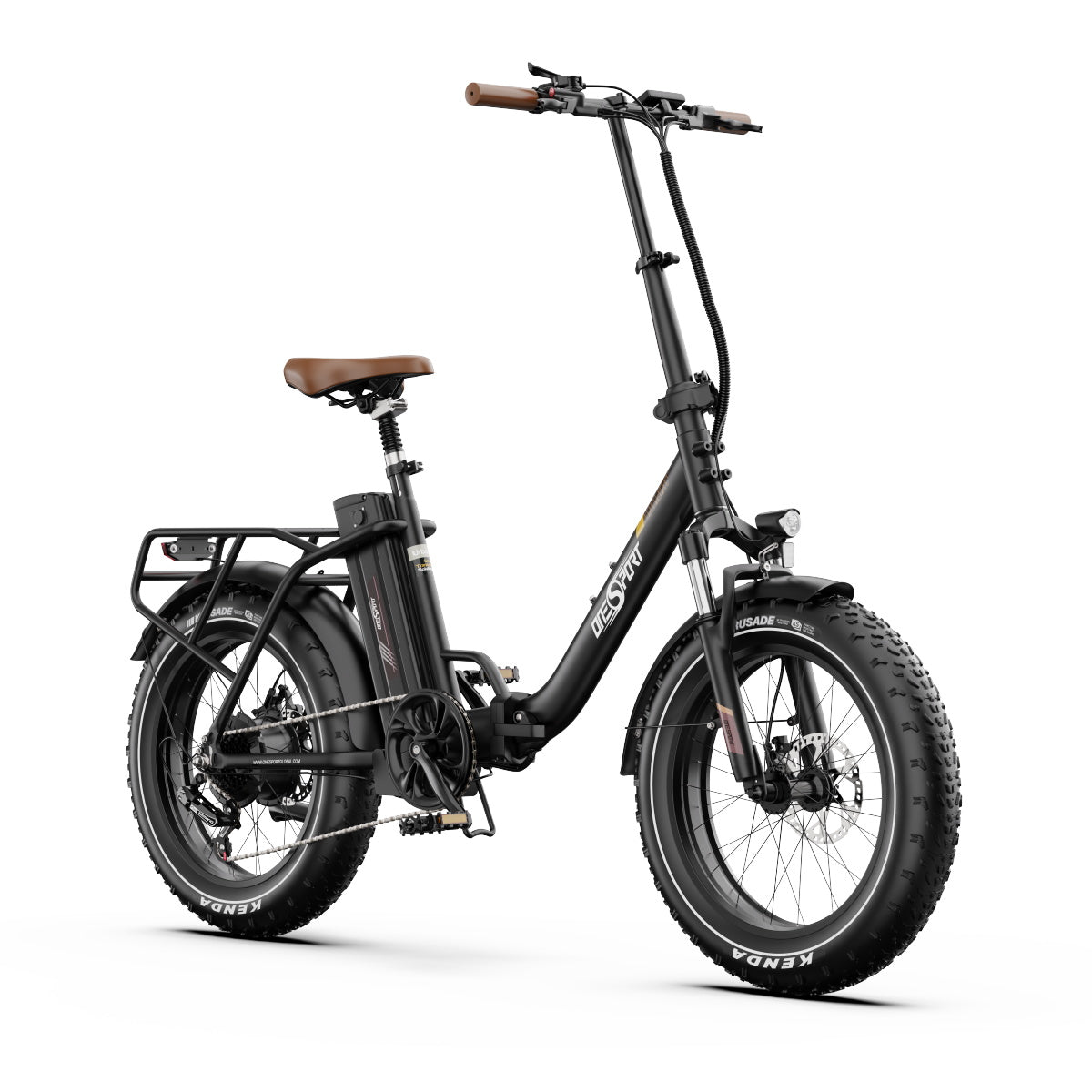

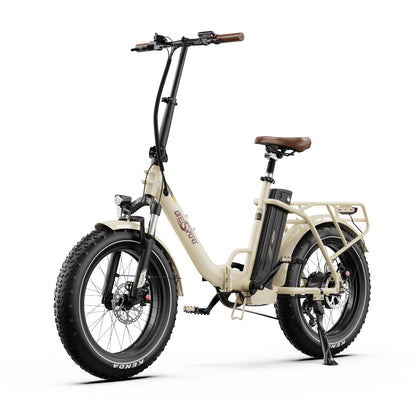

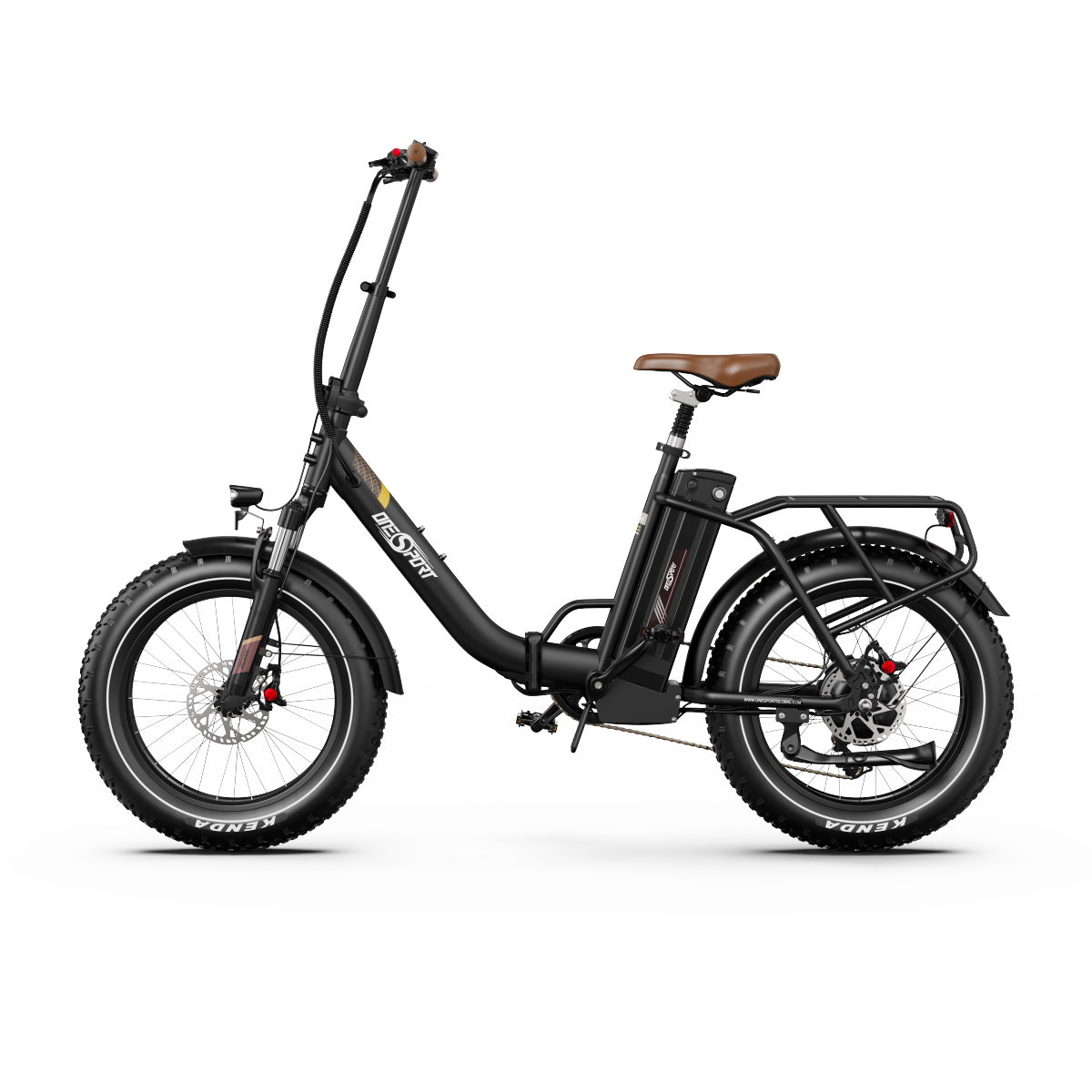

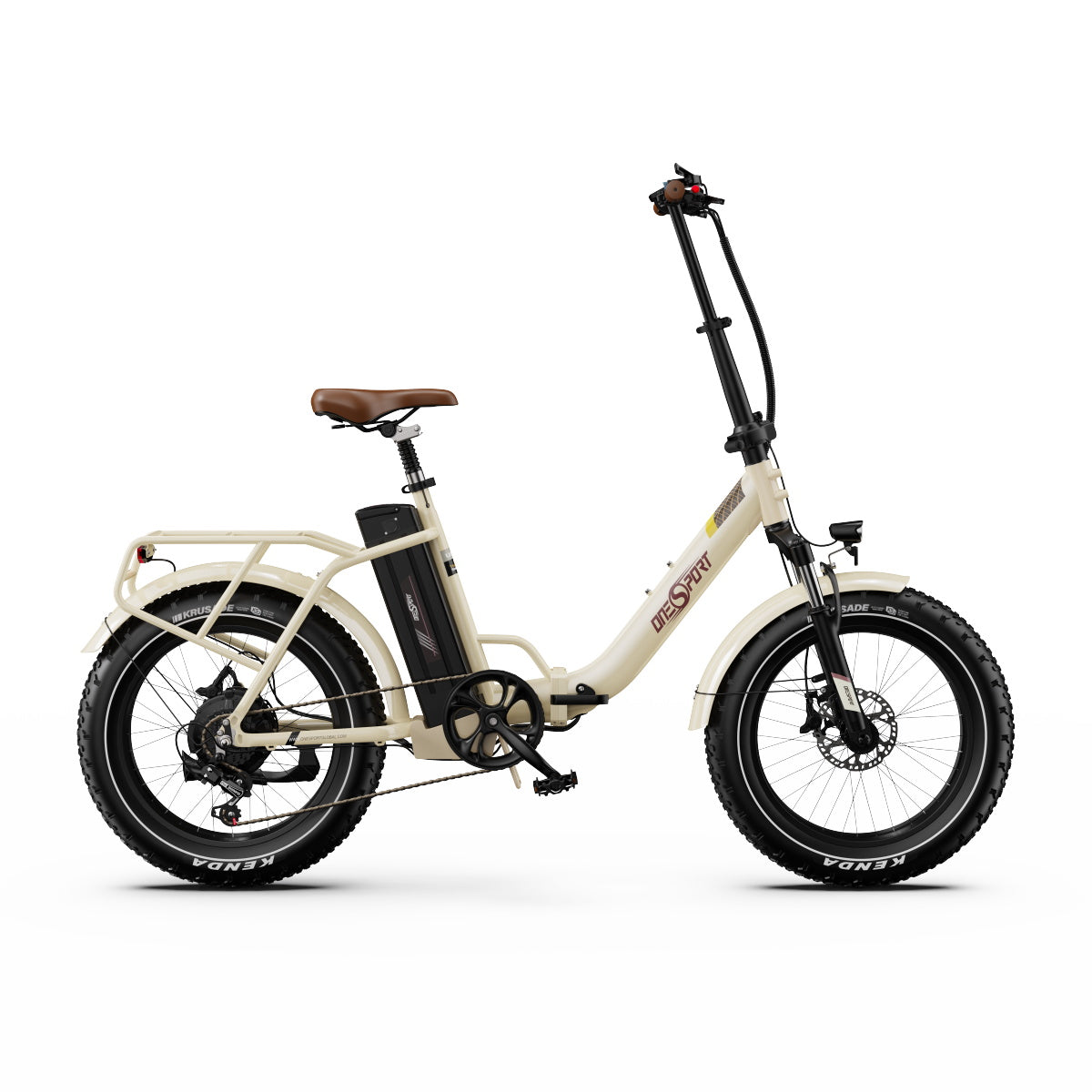

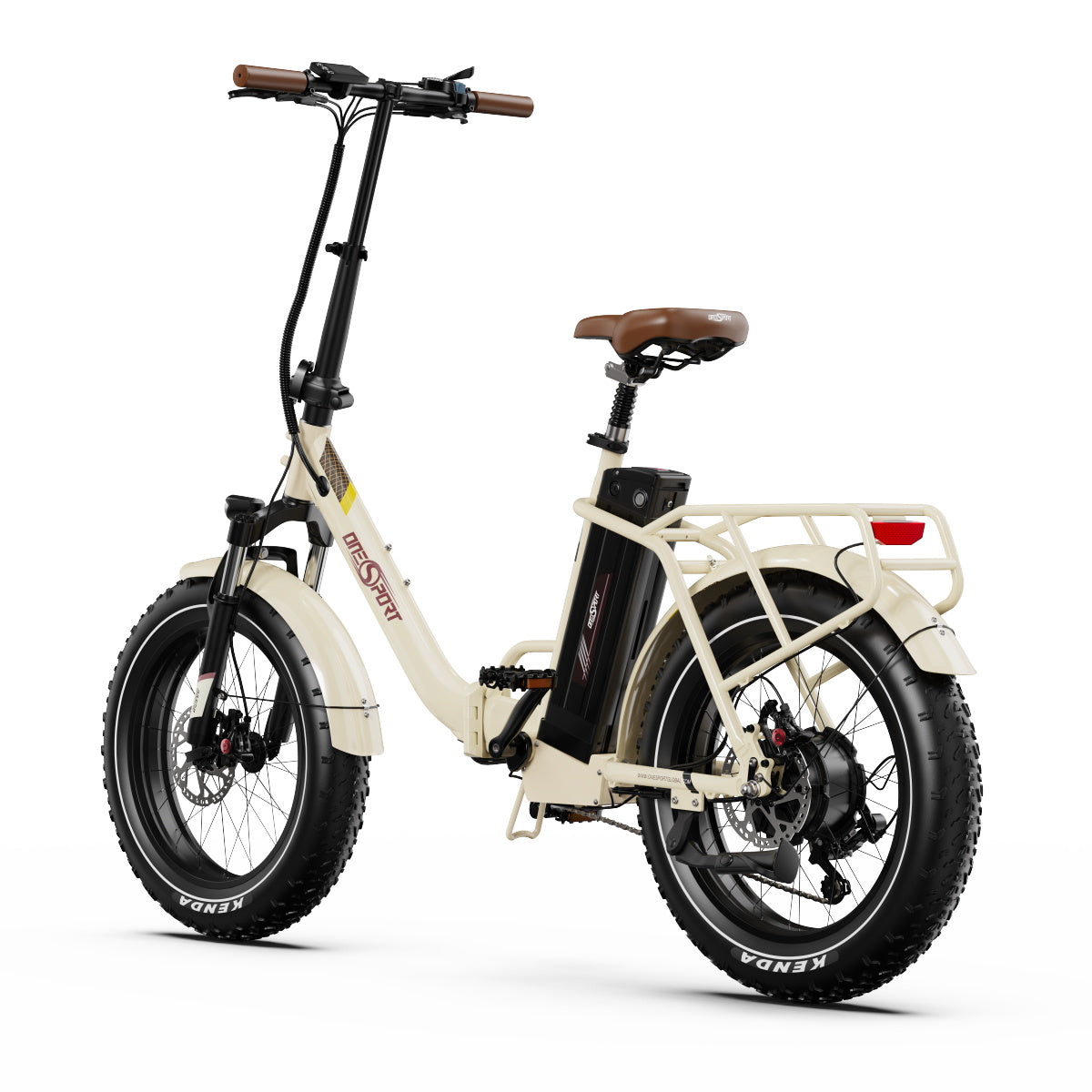

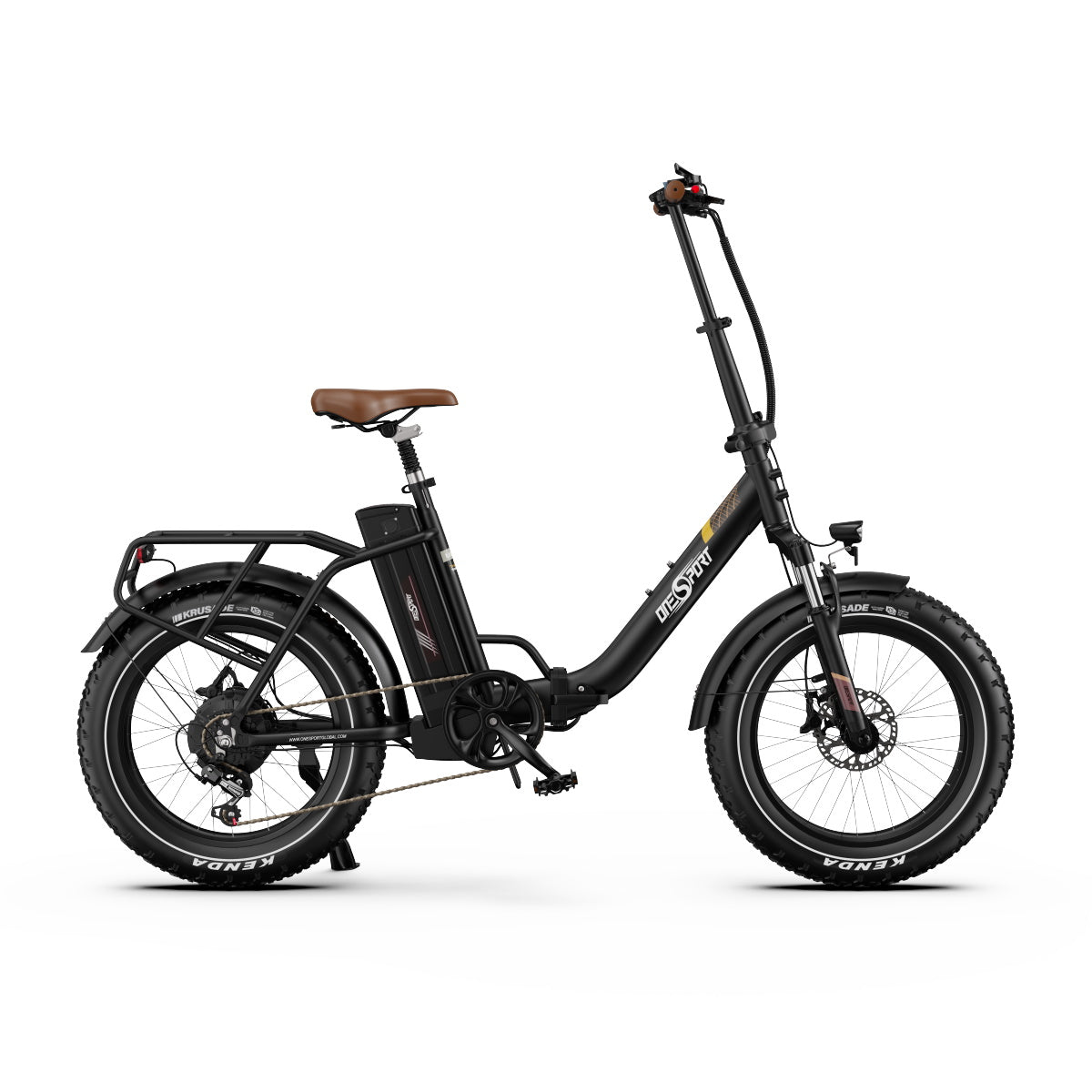

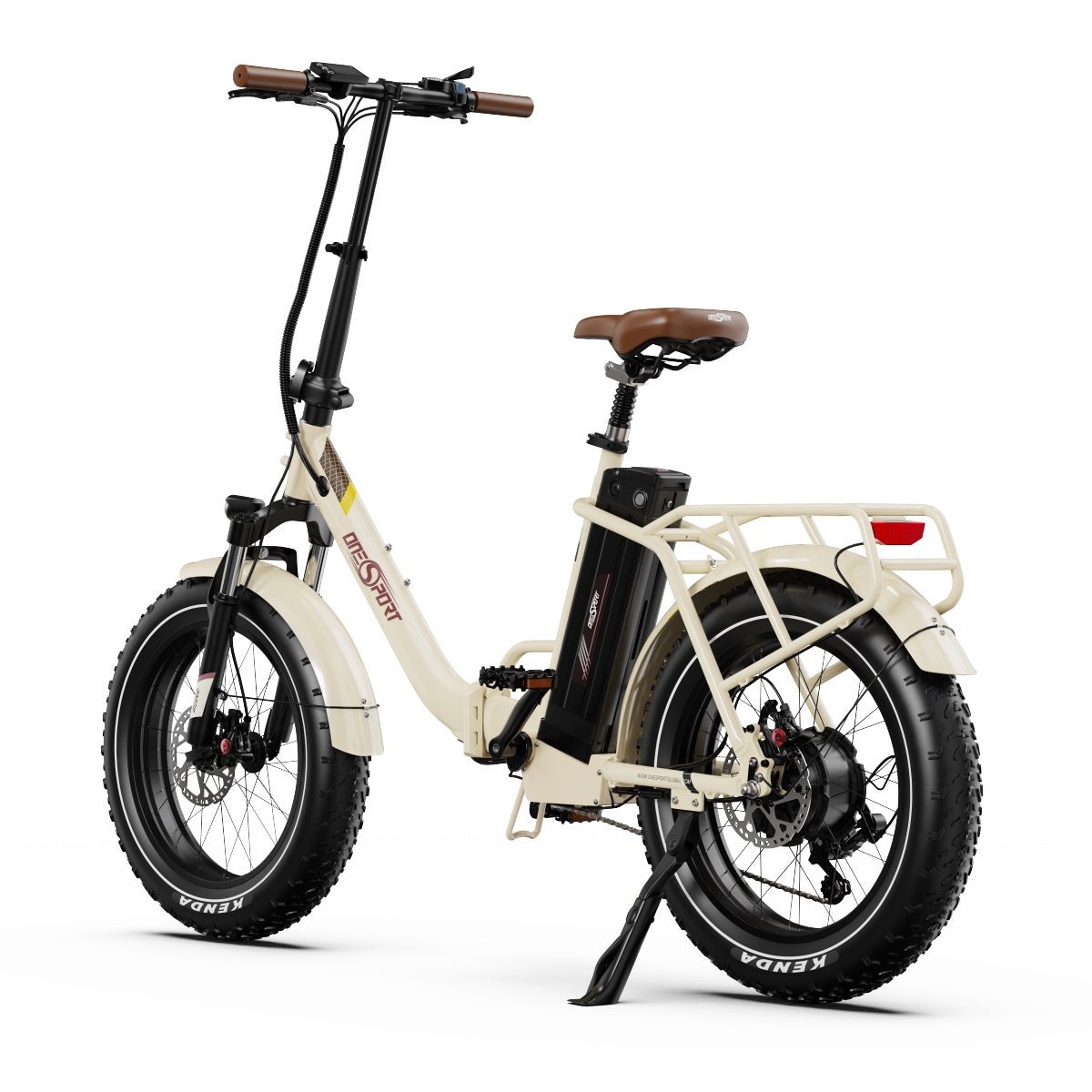

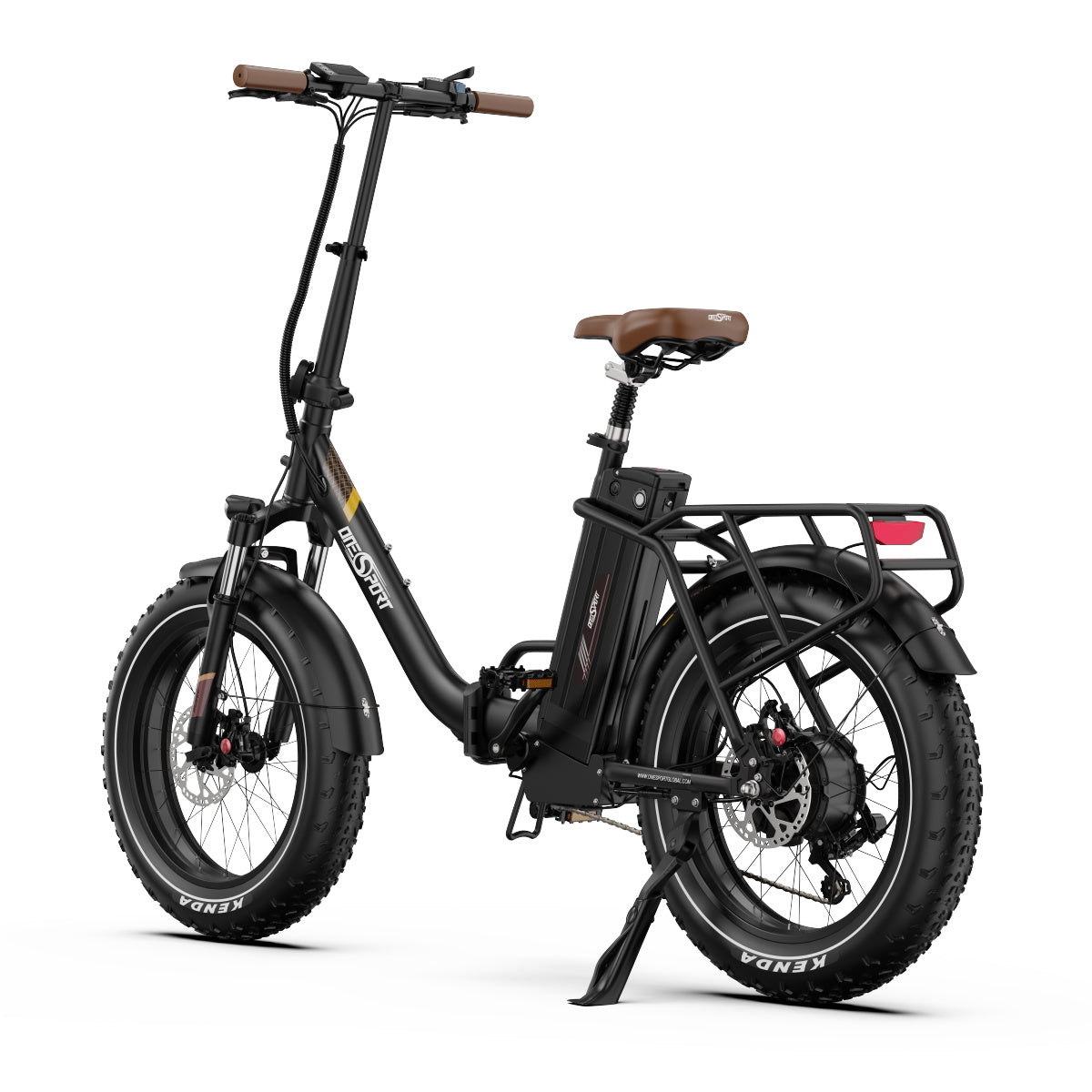

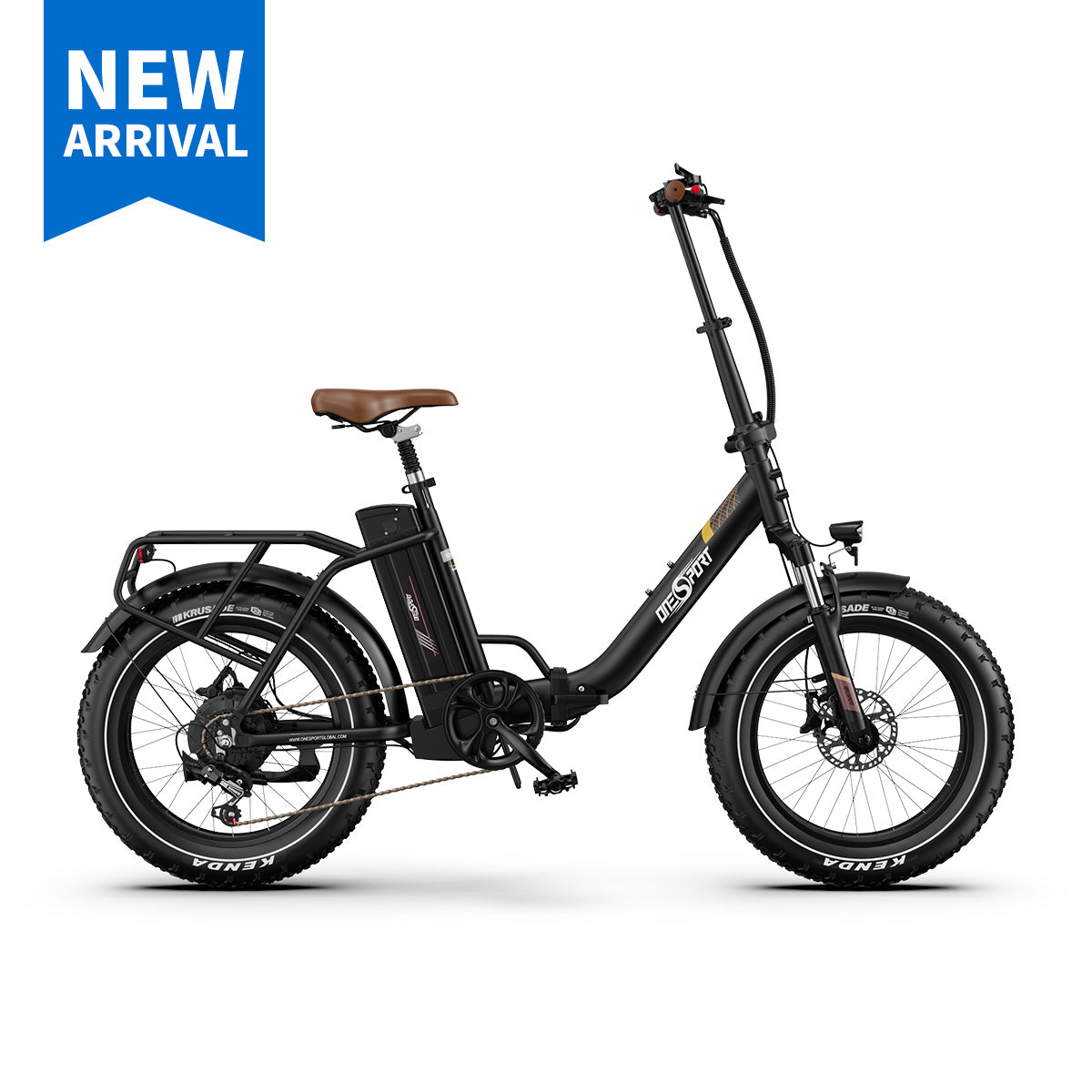

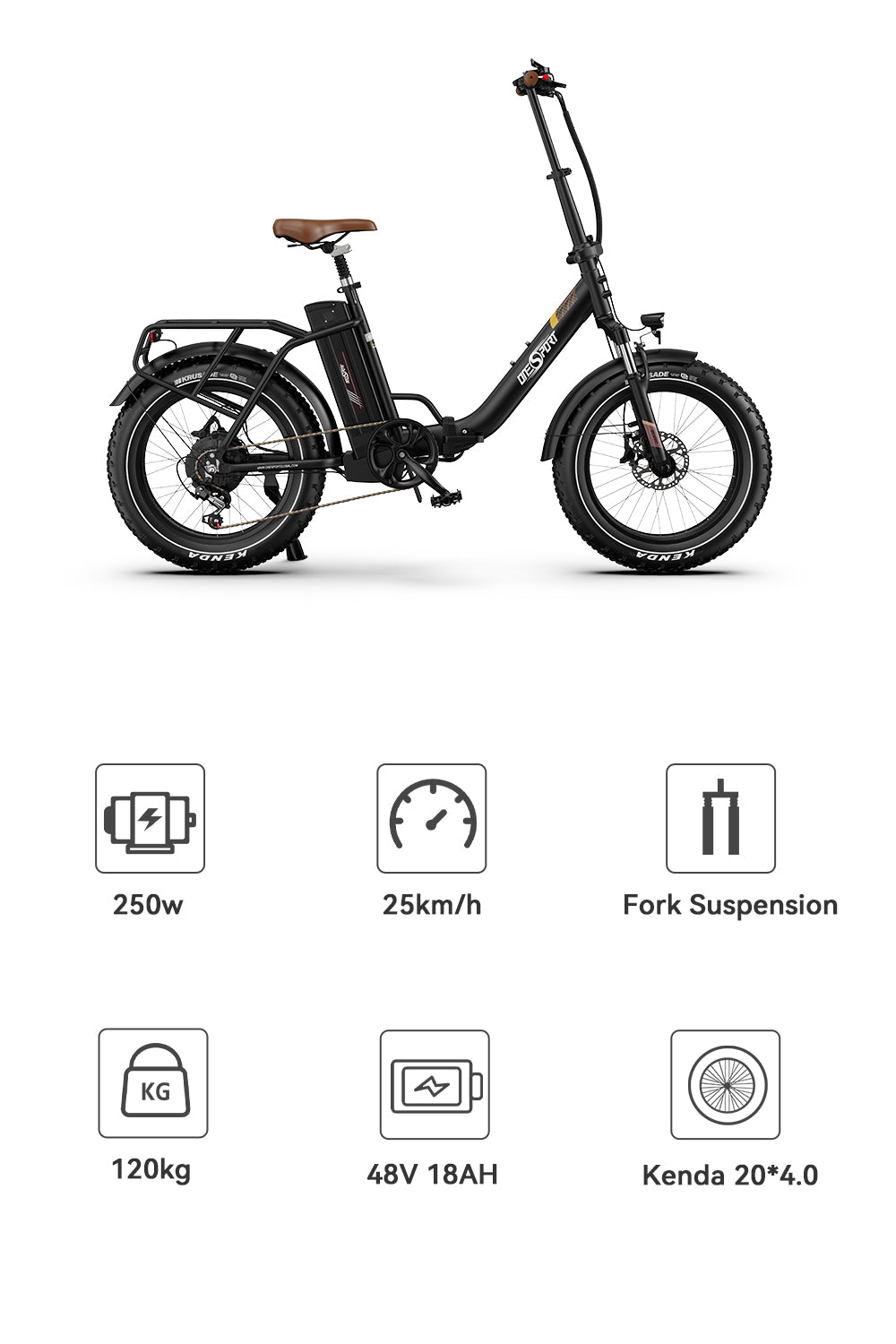

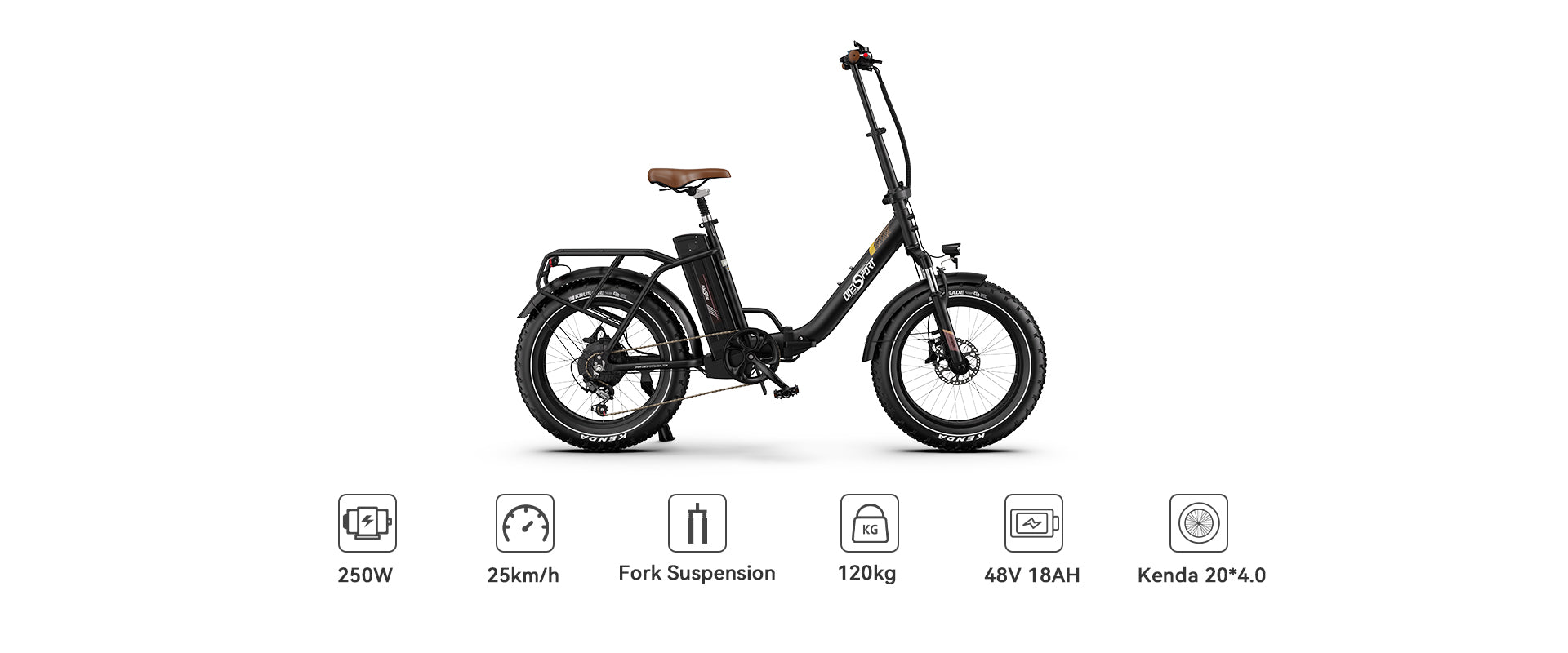

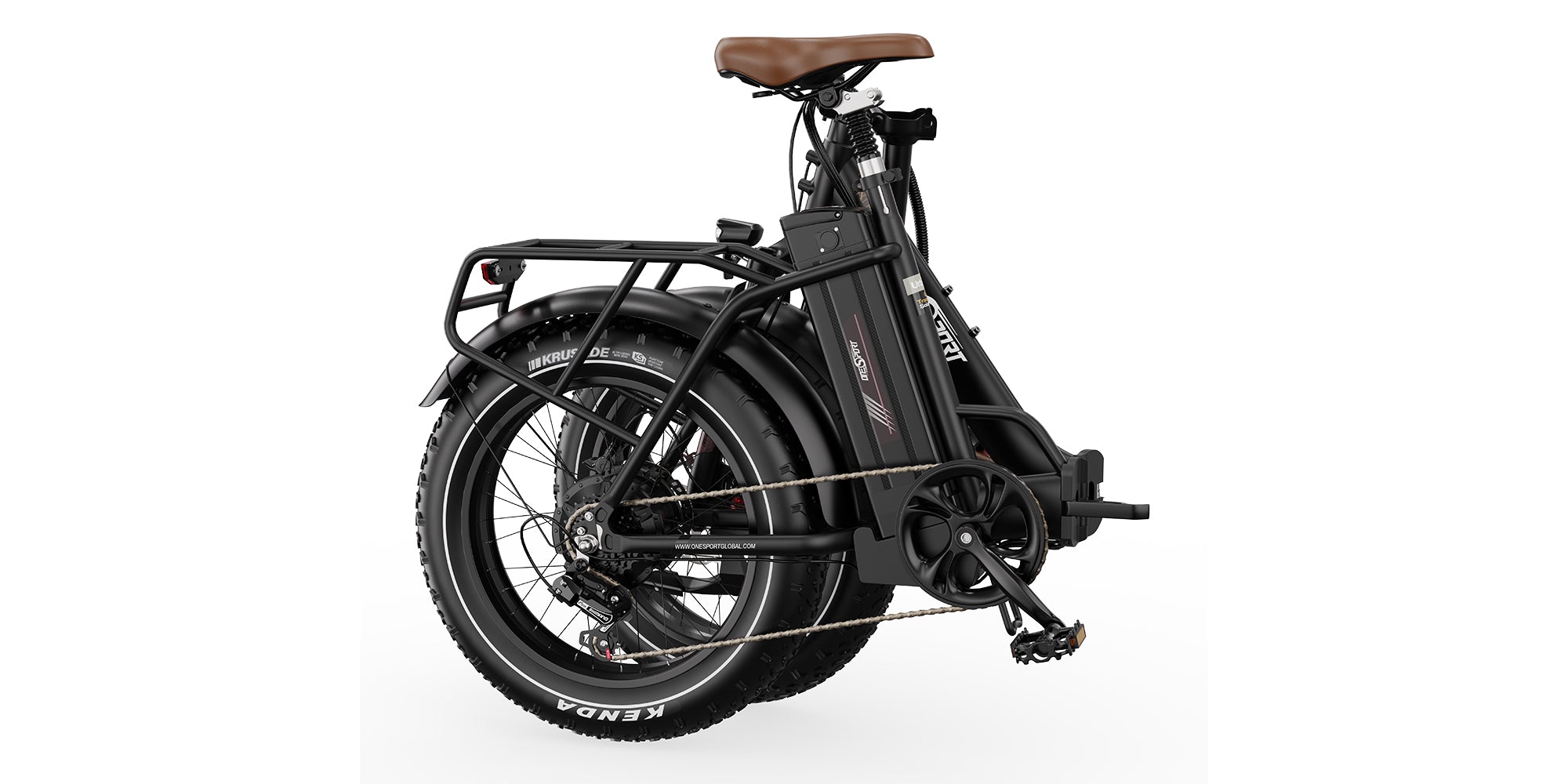

OneSport OT16Max Detailed specifications
Body Material
Aluminum alloy

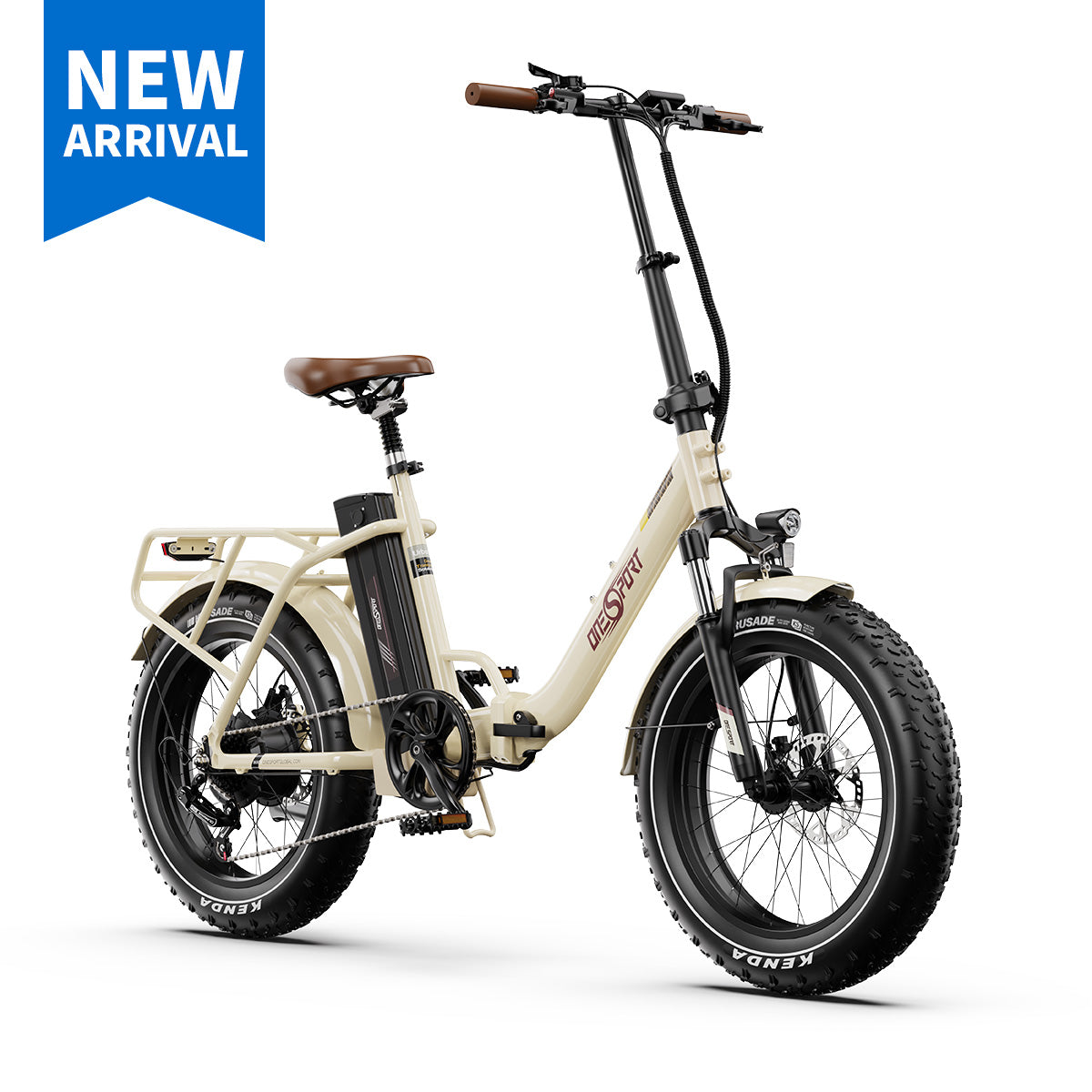

Color
Black-Brown, Off-White
Maximum Load
120KG
Maximum Speed
25KM/H
Range
60km in pure electric mode, 120Km in power-assisted mode
Maximum Climbing Angle
30 Degree
Instrument Display
0-4 level pedal assist
Front Lighting
Include
Tail Light
Include
Front Fender
Include
Rear Fender
Include

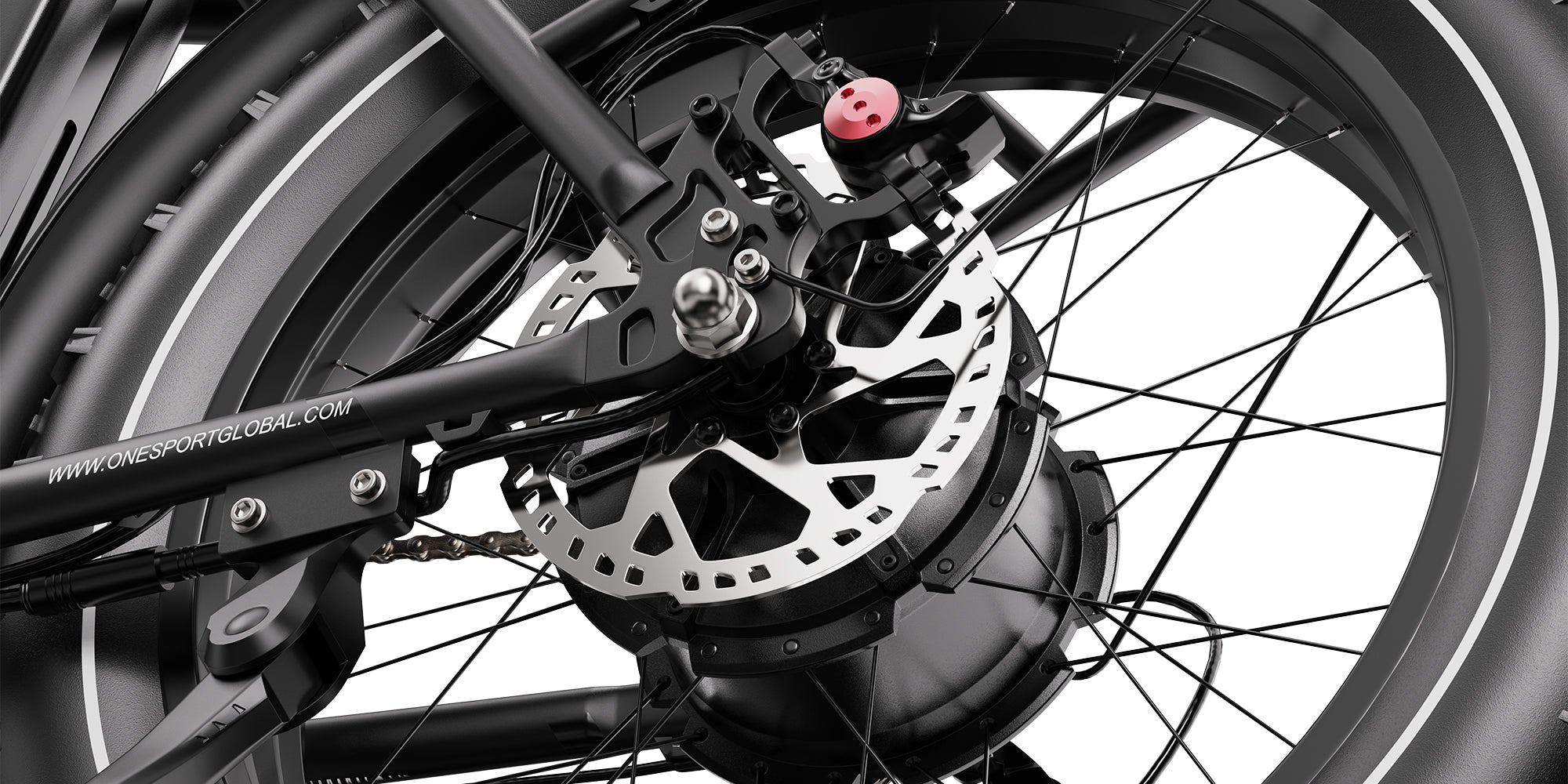

Braking Method
Left and right power-off brake handles, front and rear disc oil brakes
Hub Form
Geared brushless motor
Tire Specifications
Road Tires with reflective strips

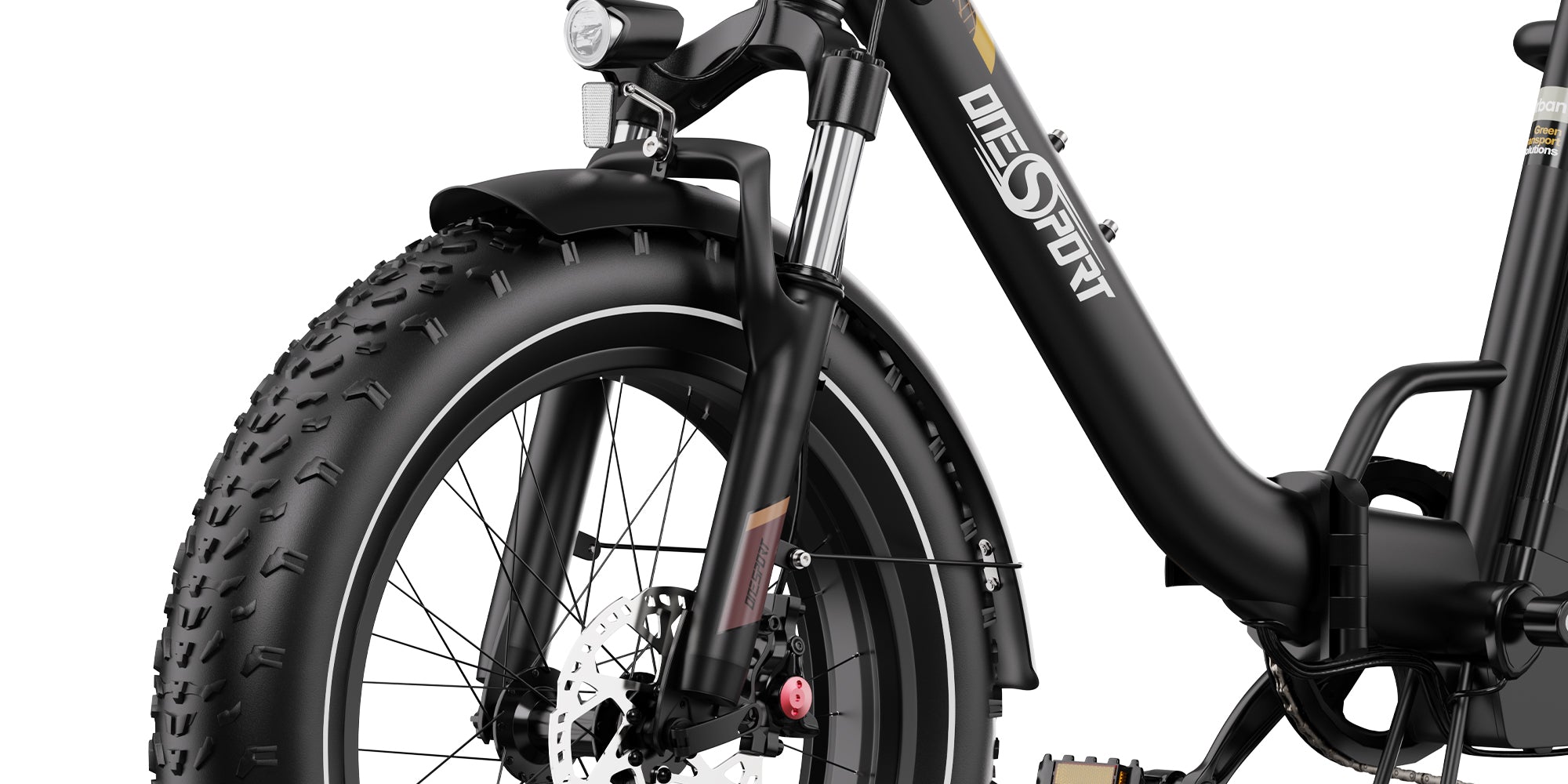

Front Fork
Aluminum front fork

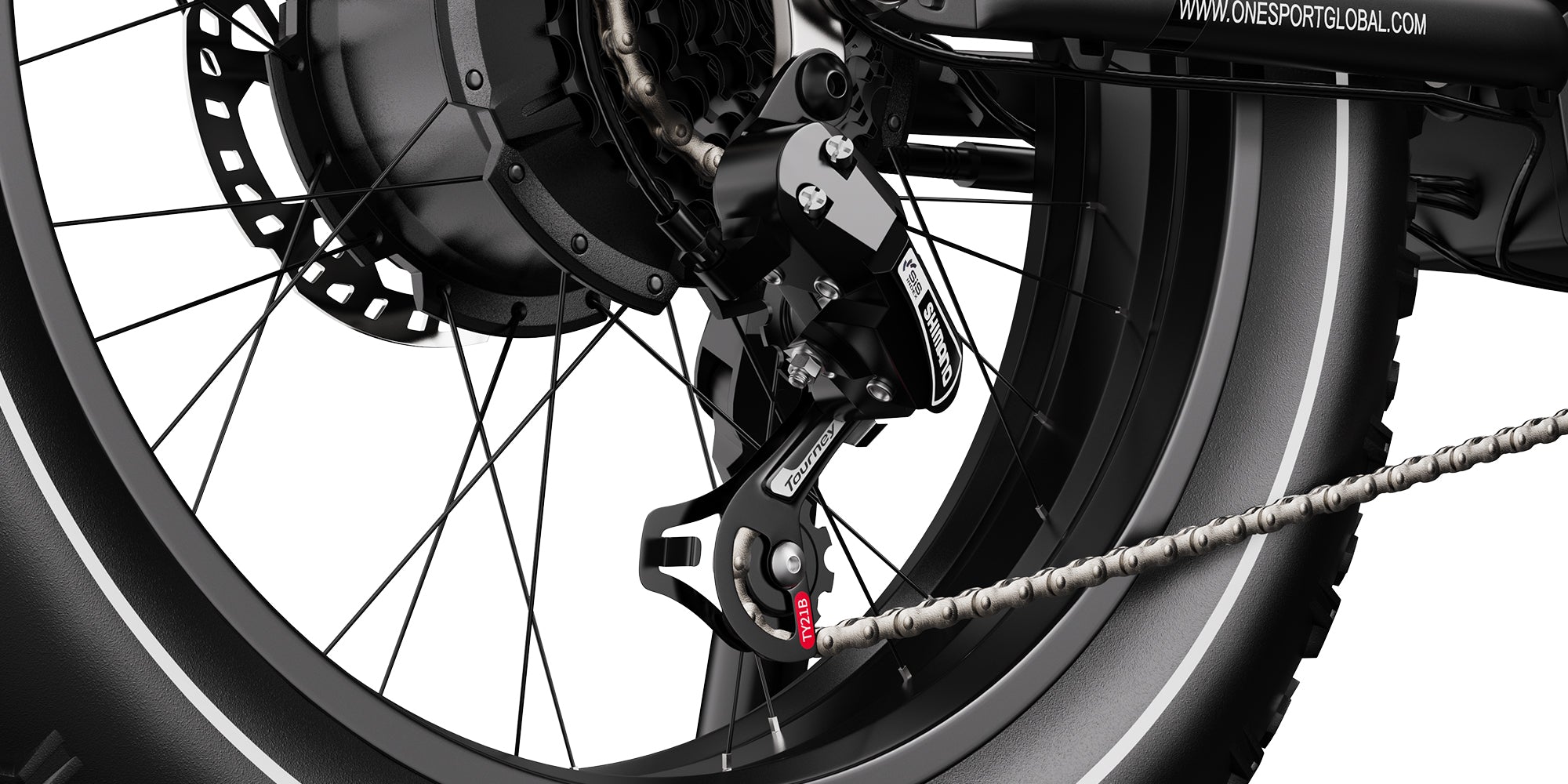

Gear
SHIMANO 1*7 speed
Rear Shelf
The aluminium rear shelf is non-detachable
Length
1760MM
Rear Height
571MM
Front Height
1250MM
Packing Size
1520*300*730mm
Tire Size
20*3 inches
Net Weight/Gross Weight
31.45Kg/38.83Kg
Battery Size
413*78*110mm
Saddle Height
89-103cm
Brake Pad Diameter
180MM*2.3MM

Battery Capacity
18Ah
Battery Rated Voltage
48V
Motor Form
Pedal assist mode
Motor Rated Power
Rated power: 250W, peak power: 500W
Torque
45Nm
Charger Output
54.6V 2.0A
Charging Time
8-9 Hours
Proper Temperature
-10°C-40 °C(Not recommended for use in harsh conditions)
Waterproof Level
IPX5
