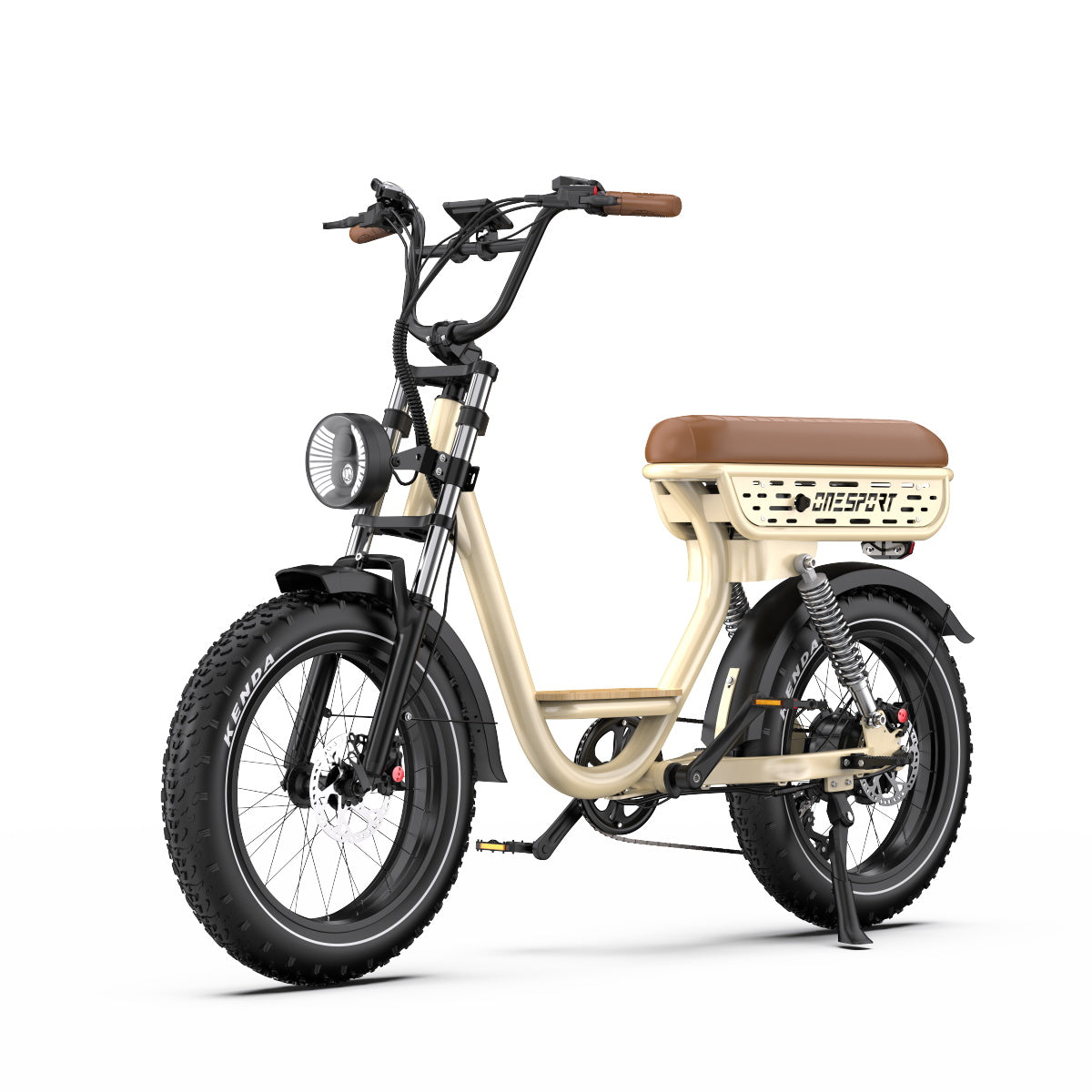

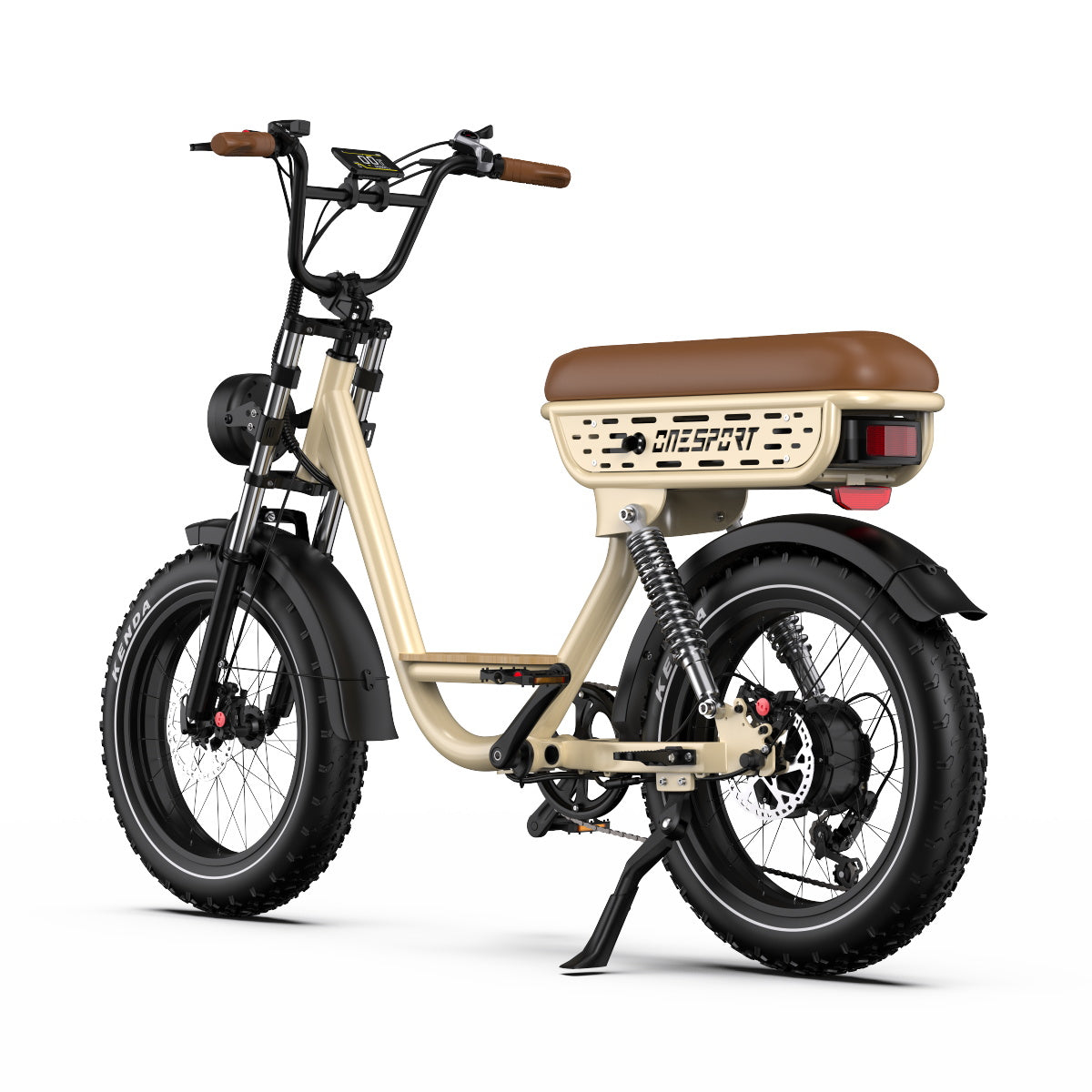

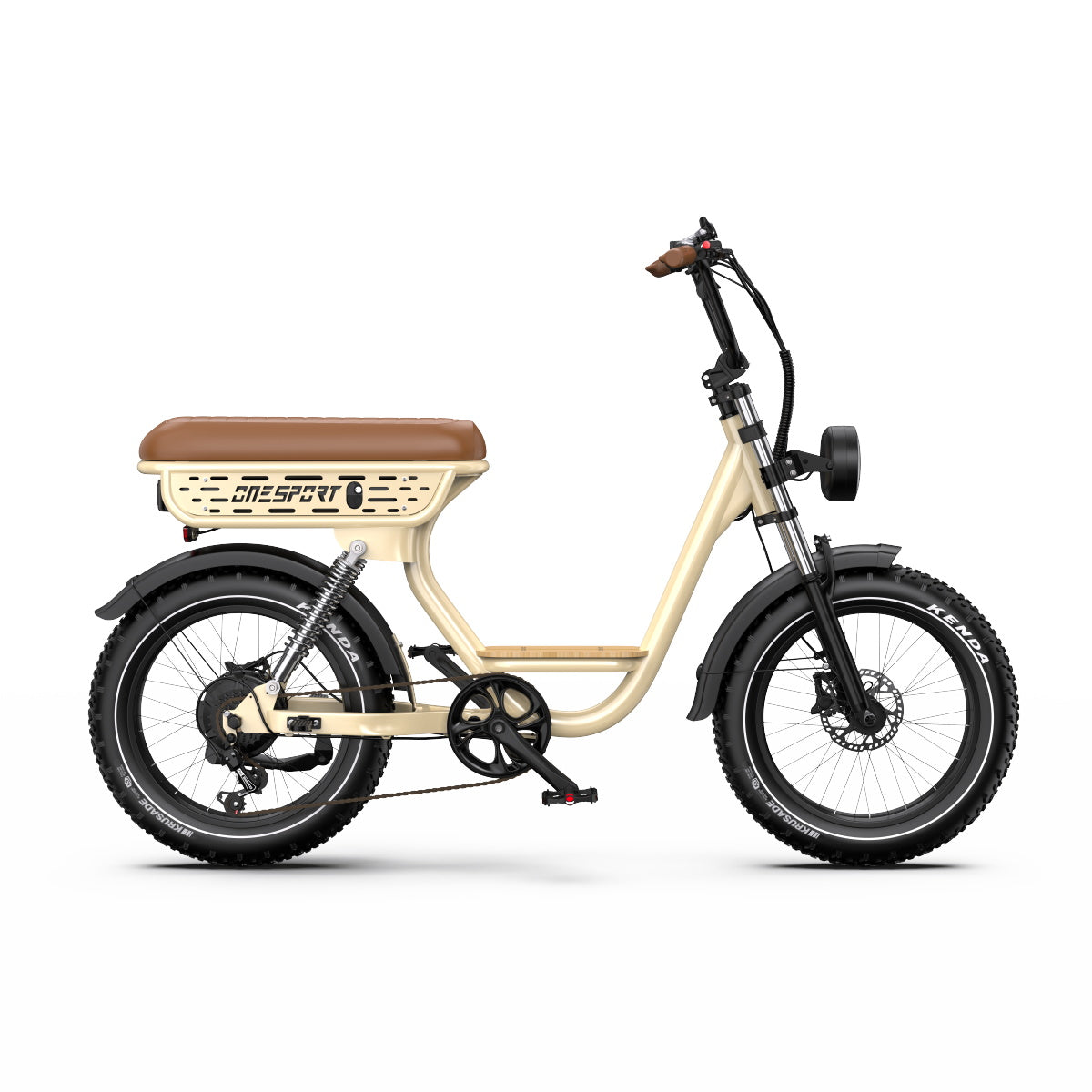

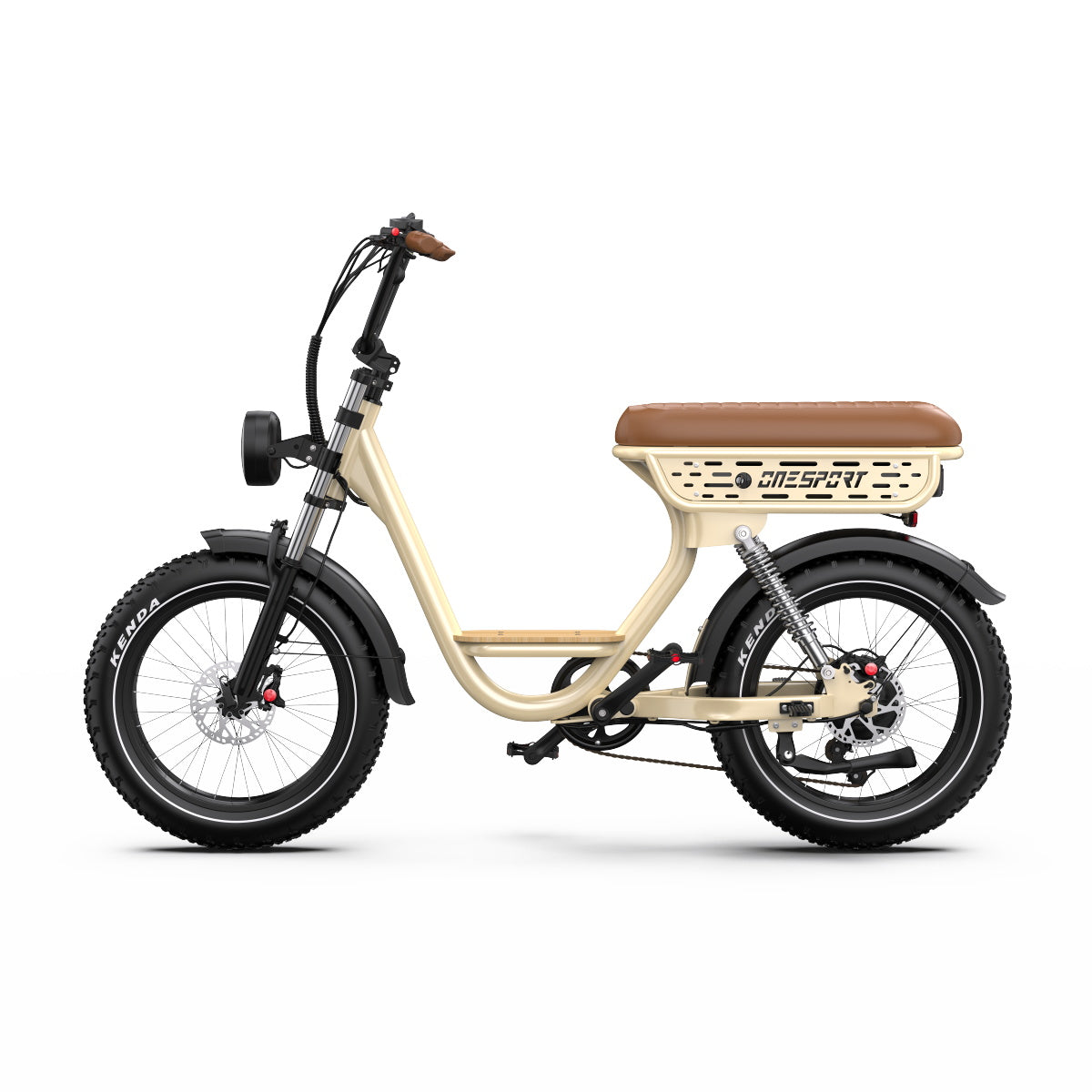

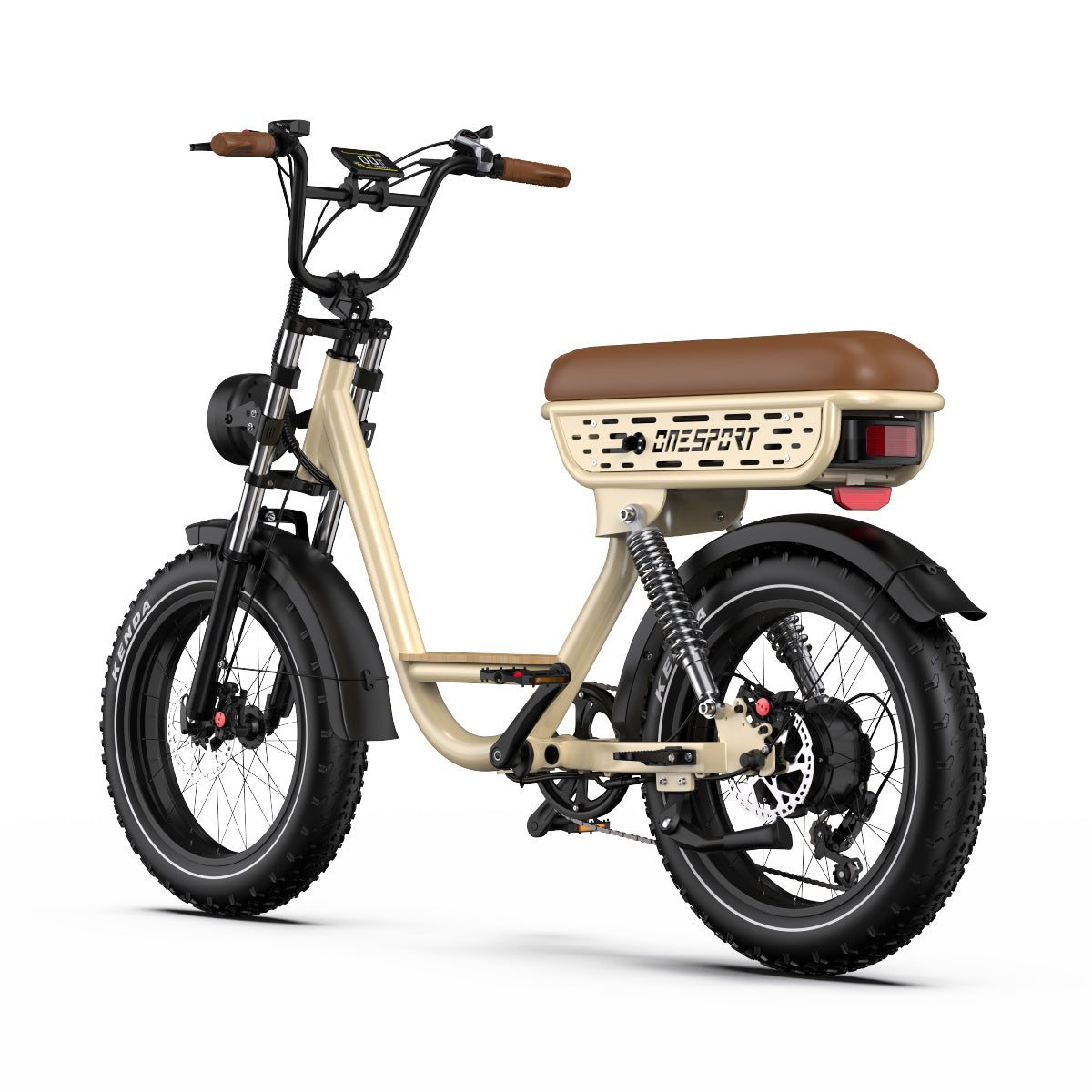

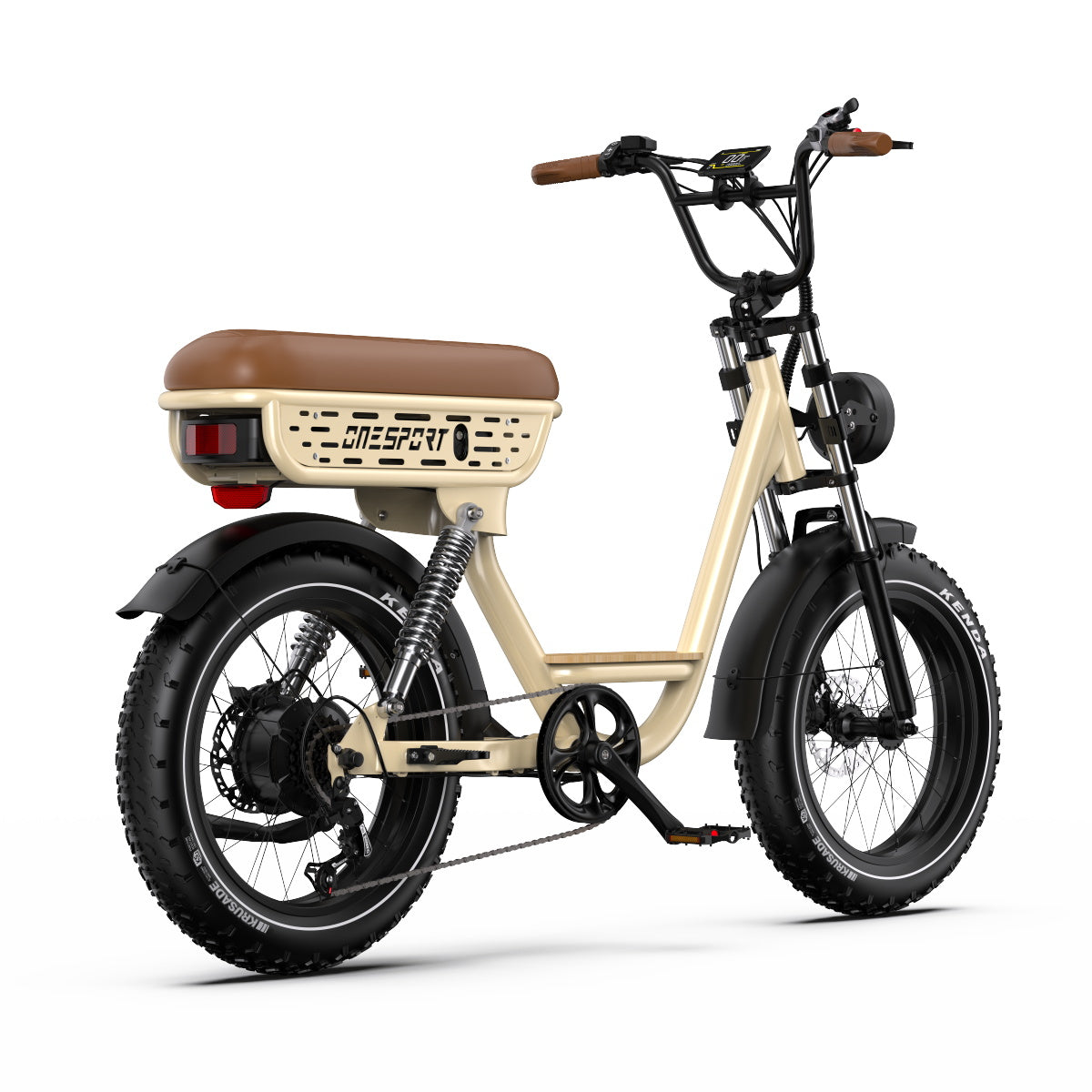

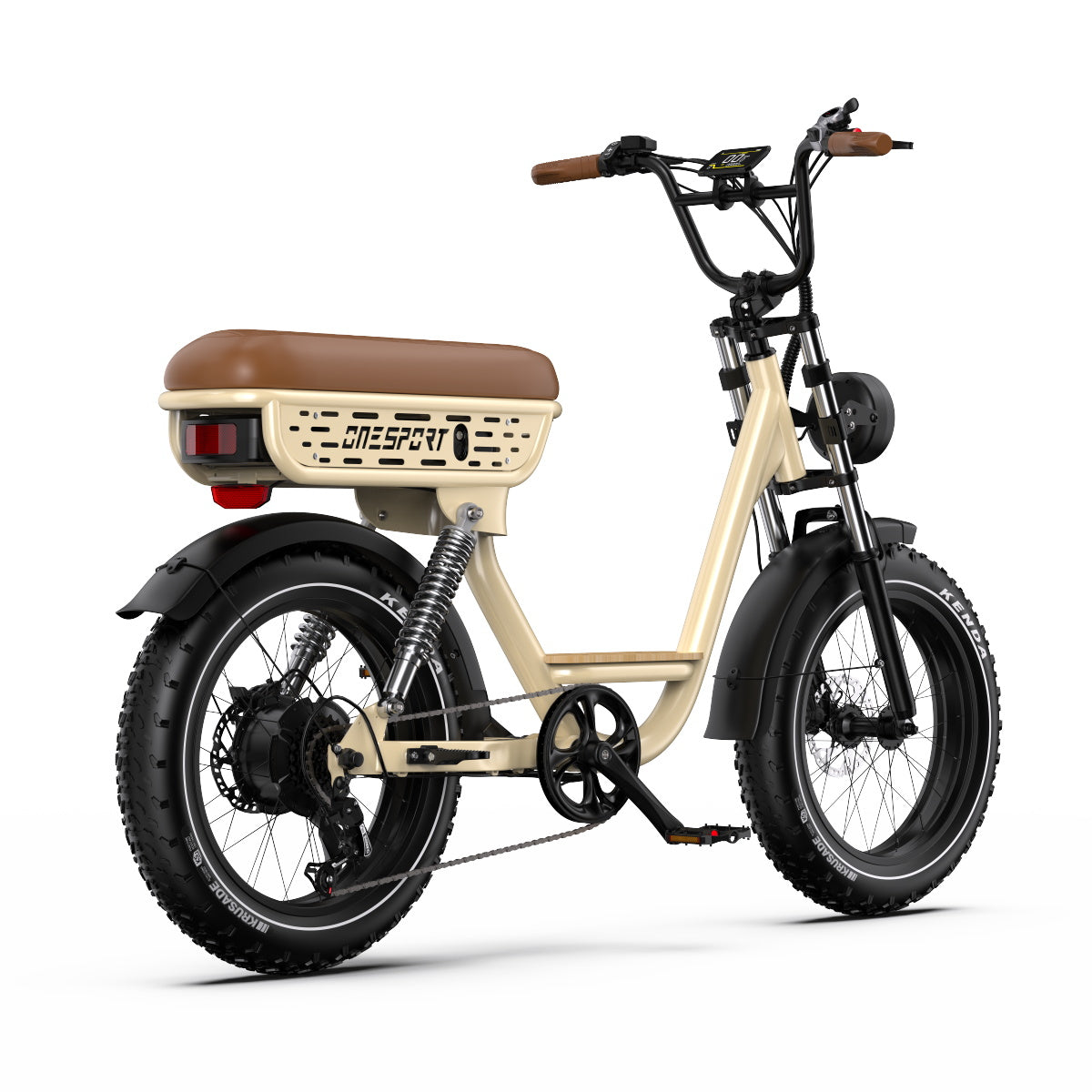

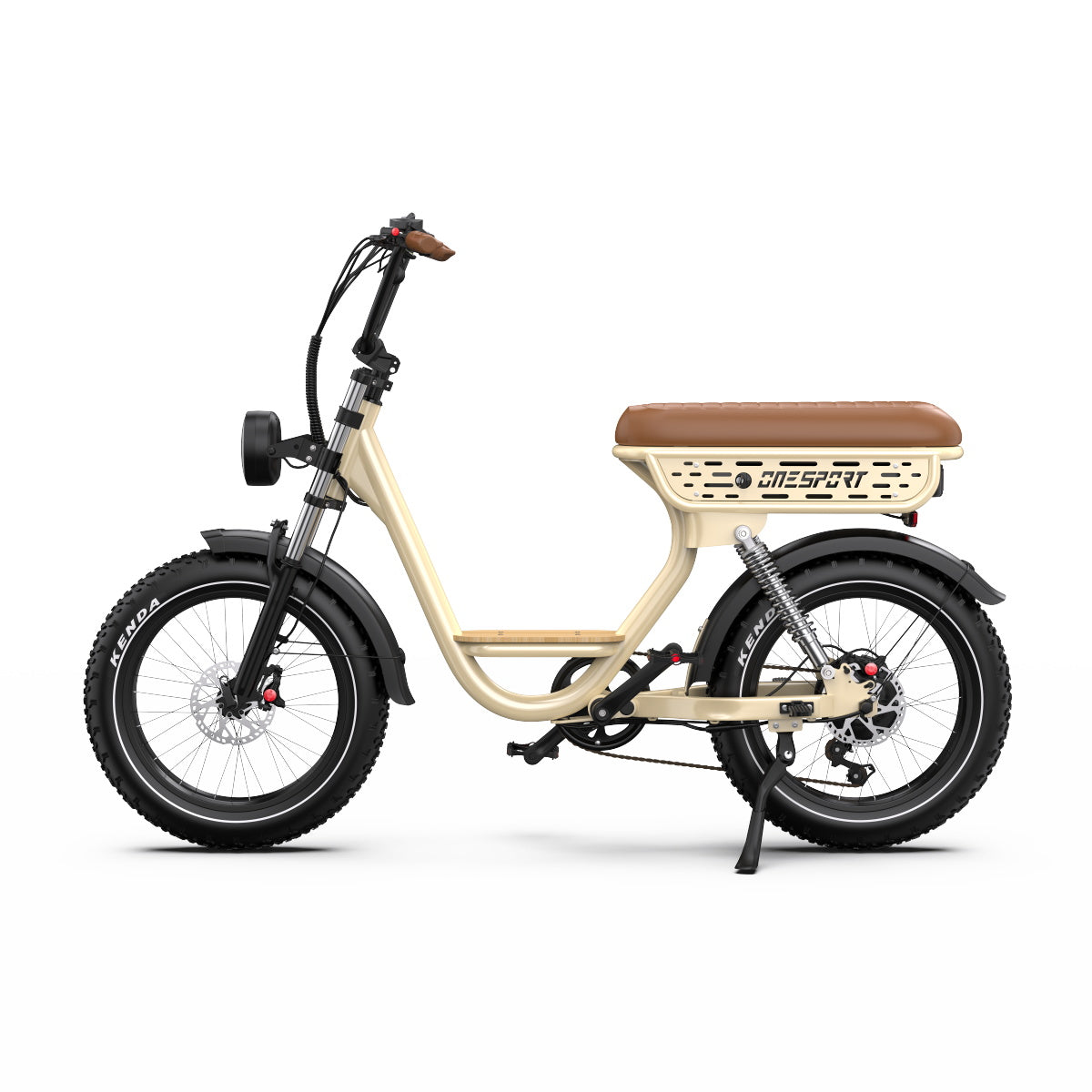

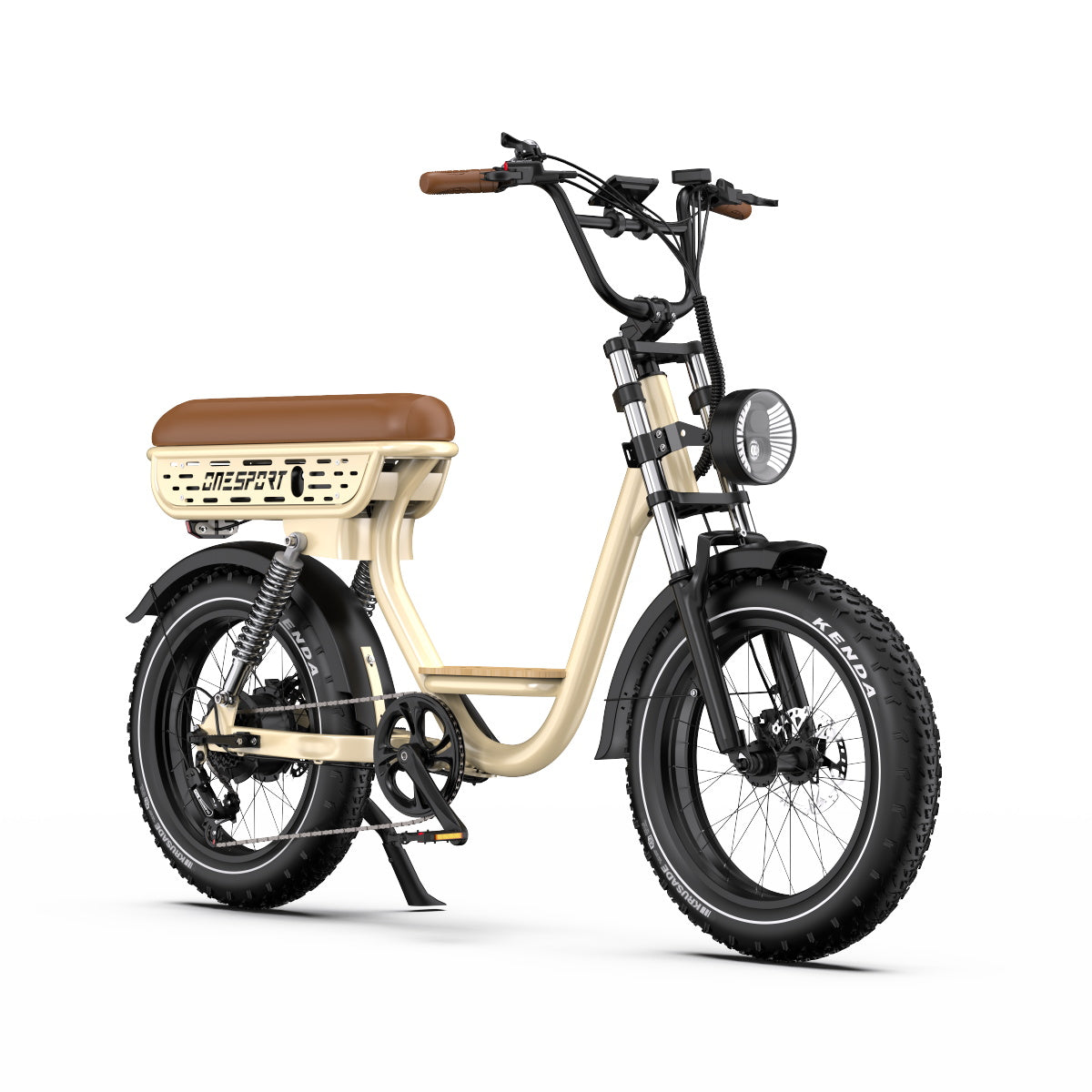

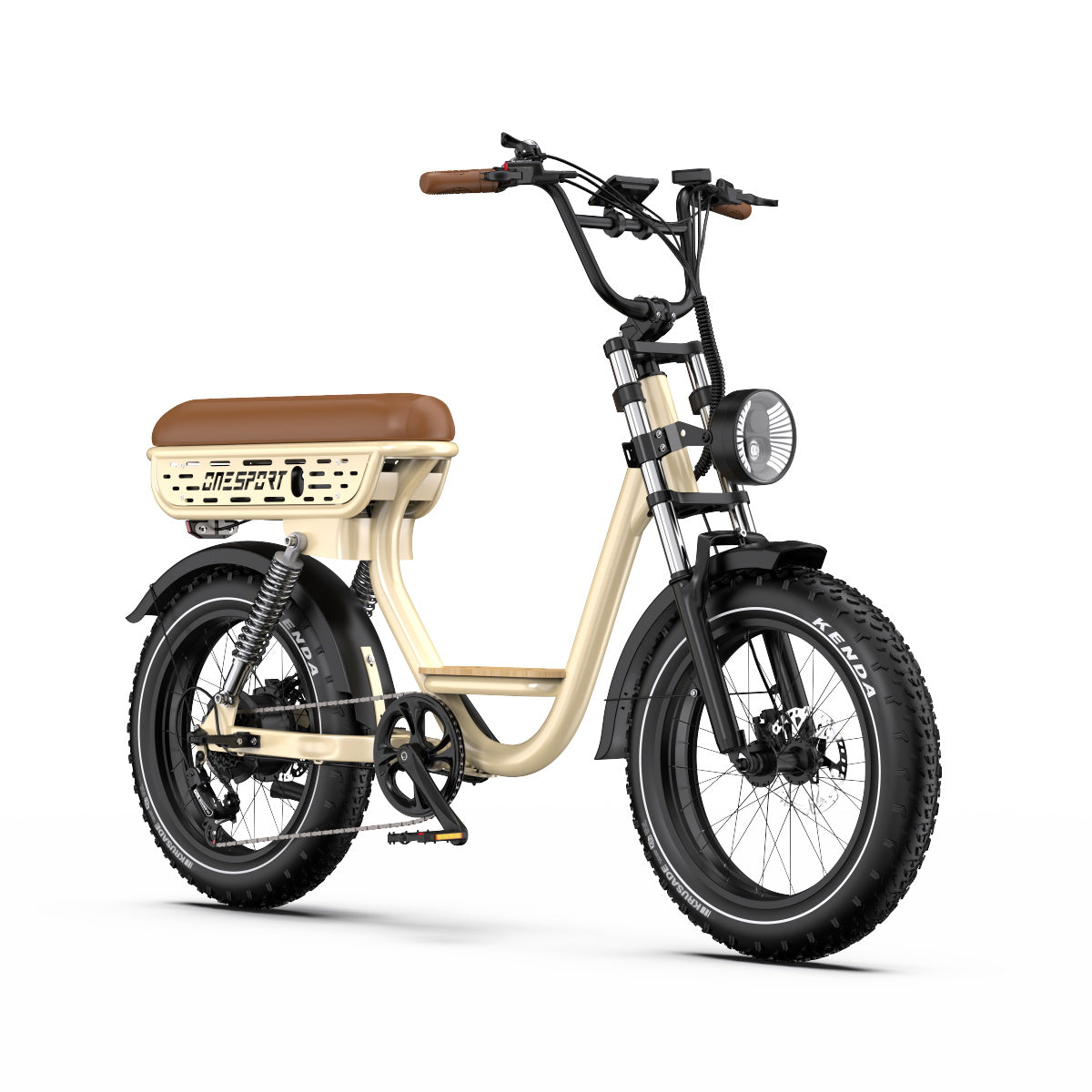

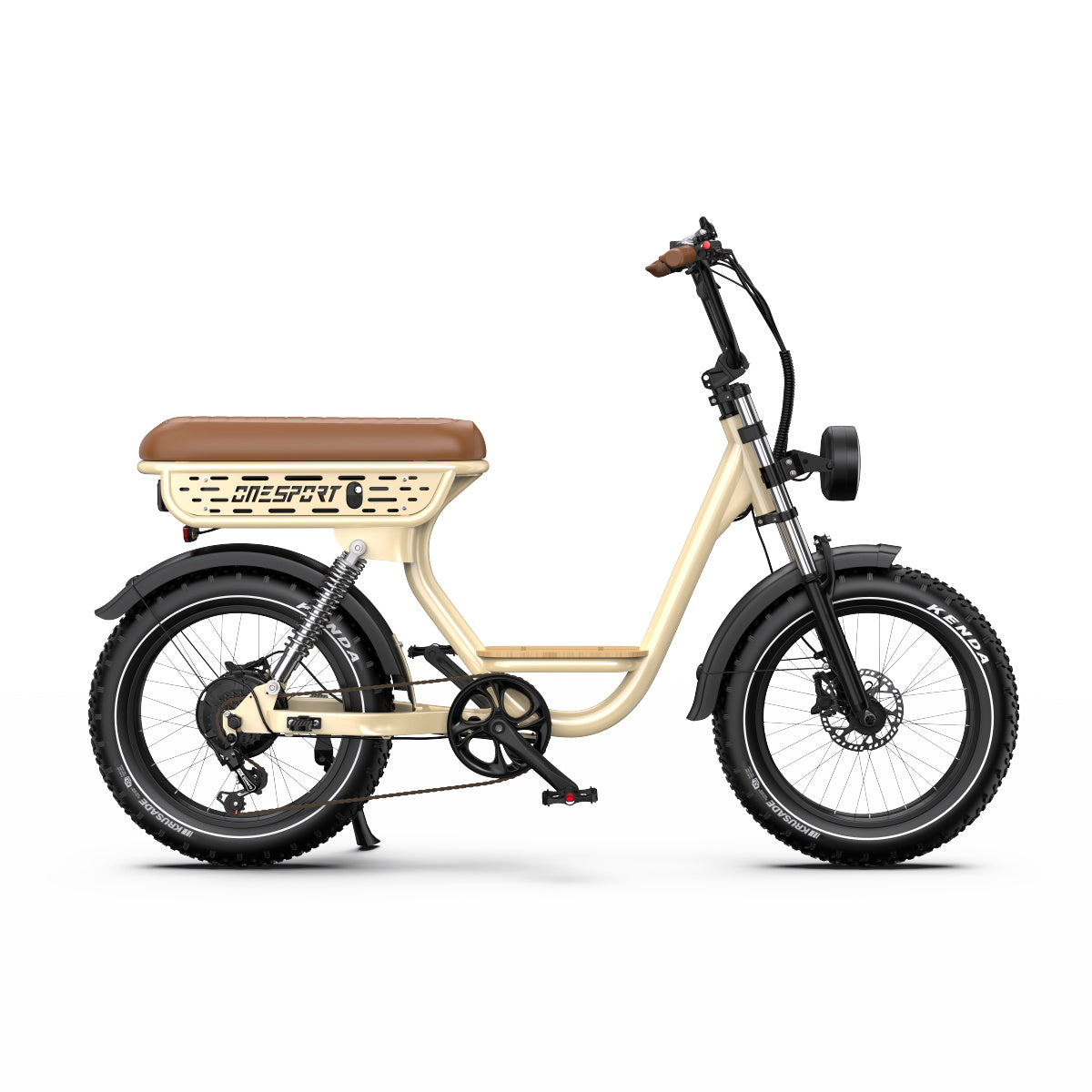

Onesport W77 Fat Tire E-Bike
Onesport W77 Fat Tire E-Bike
2-Year Warranty
Rider Height (recommended): 160-200 cm
Net Weight: 43.18kg
2-Year Warranty
Rider Height (recommended): 160-200 cm
Net Weight: 43.18kg
Show less/Show more
44 en stock
Ne peut pas charger la disponibilité du ramassage

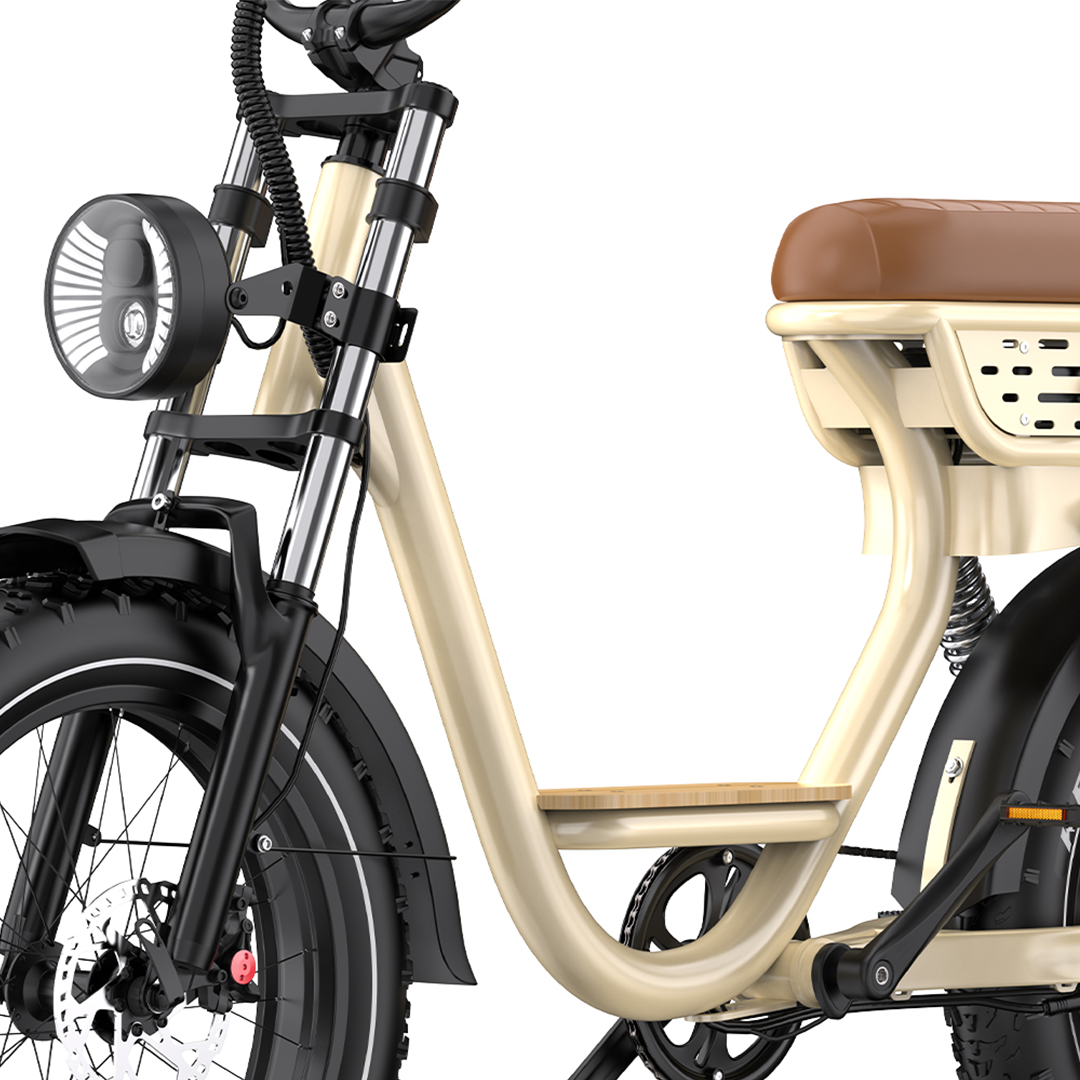

Ride with Grace – Safety & Style in Every Detail
Move effortlessly with our thoughtfully engineered low-step frame, designed for easy mounting in skirts, dresses, or any outfit of your choice. Whether you're headed to the office or the market, enjoy a confident ride without compromise.

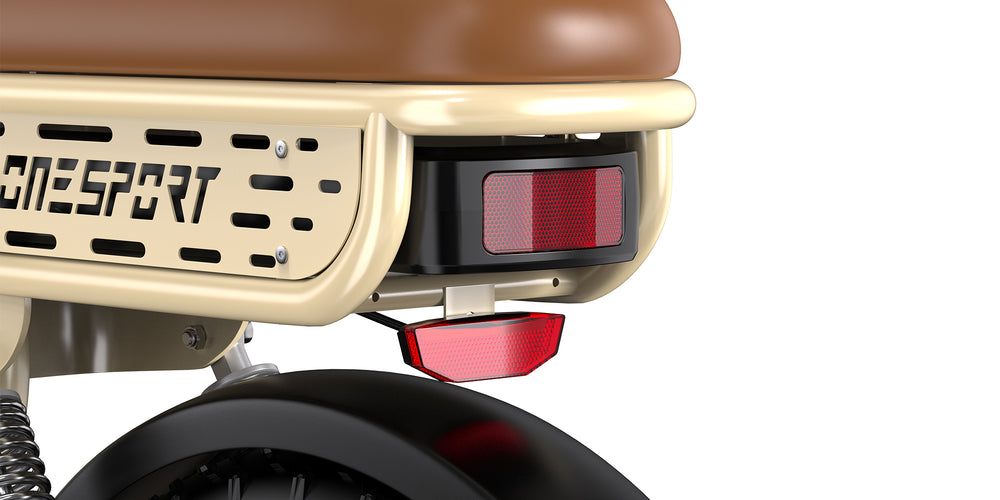

As the sun sets, stay visible and secure with our ultra-bright front headlight and integrated rear tail light. Built for urban nights and early commutes, this e-bike ensures you’re seen from every angle – because your safety deserves more than just reflectors.
Full Suspension for a Smooth, Confident Ride
Tackle city bumps, gravel paths, or countryside trails with ease.
The front and rear suspension system absorbs shocks and vibrations, delivering a more comfortable, stable ride—wherever your journey takes you.

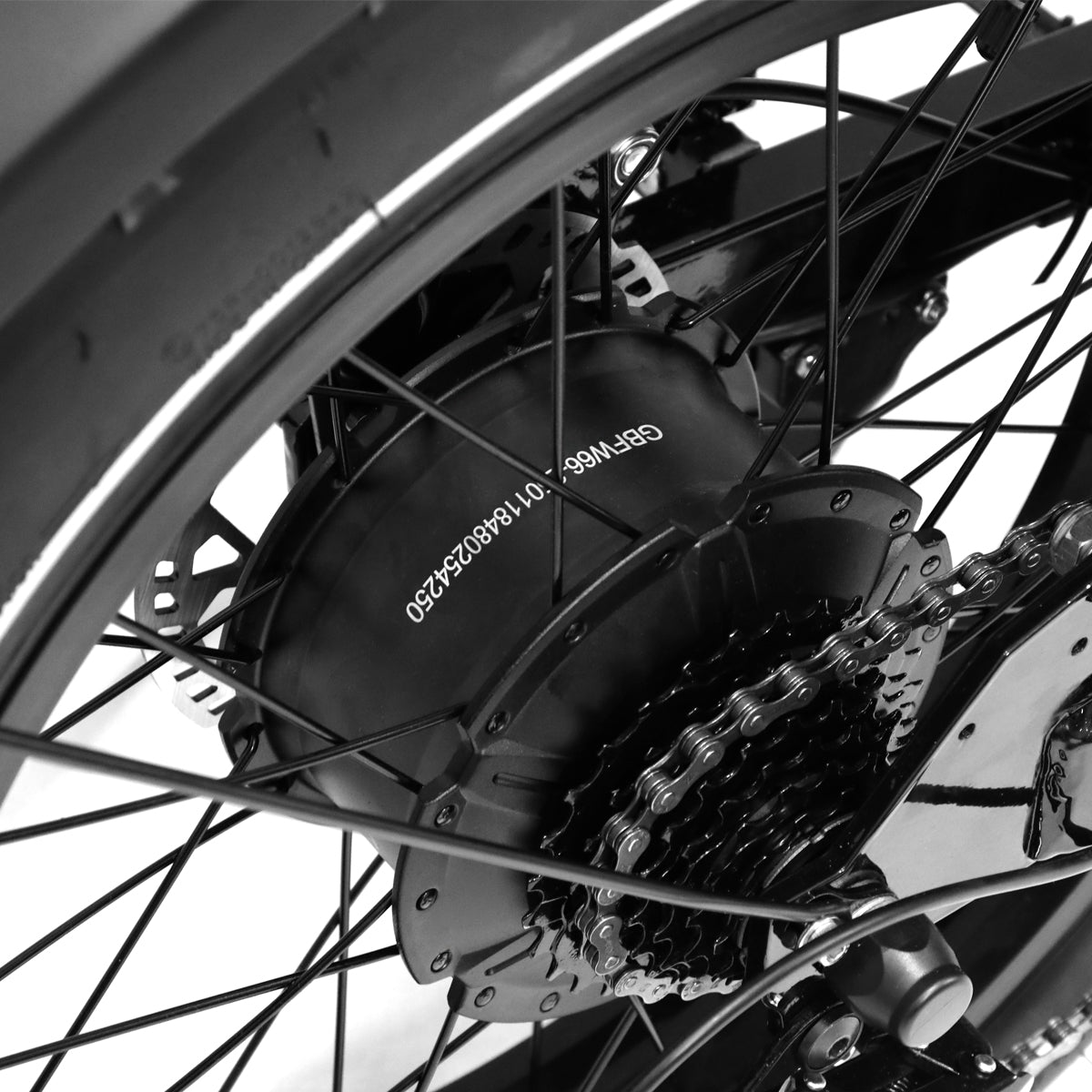

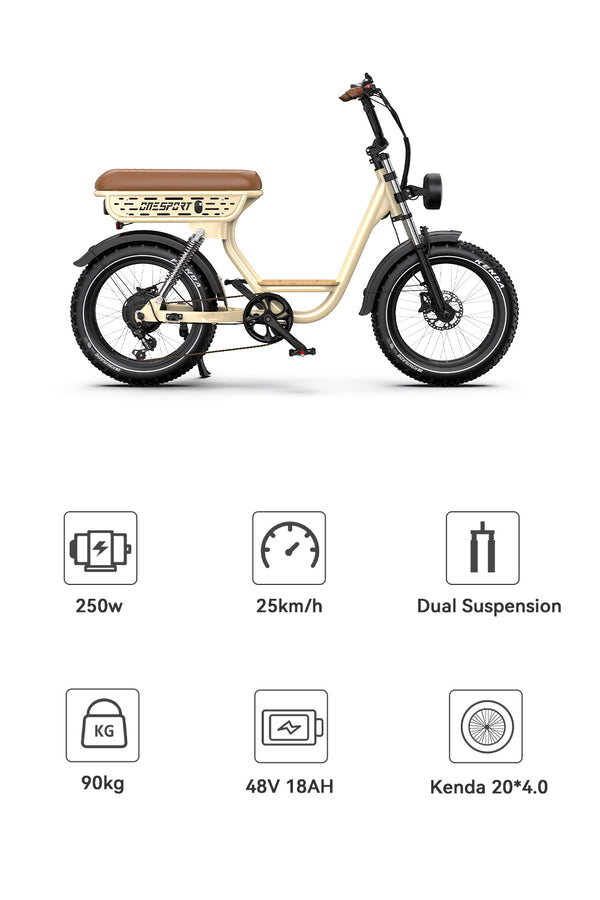

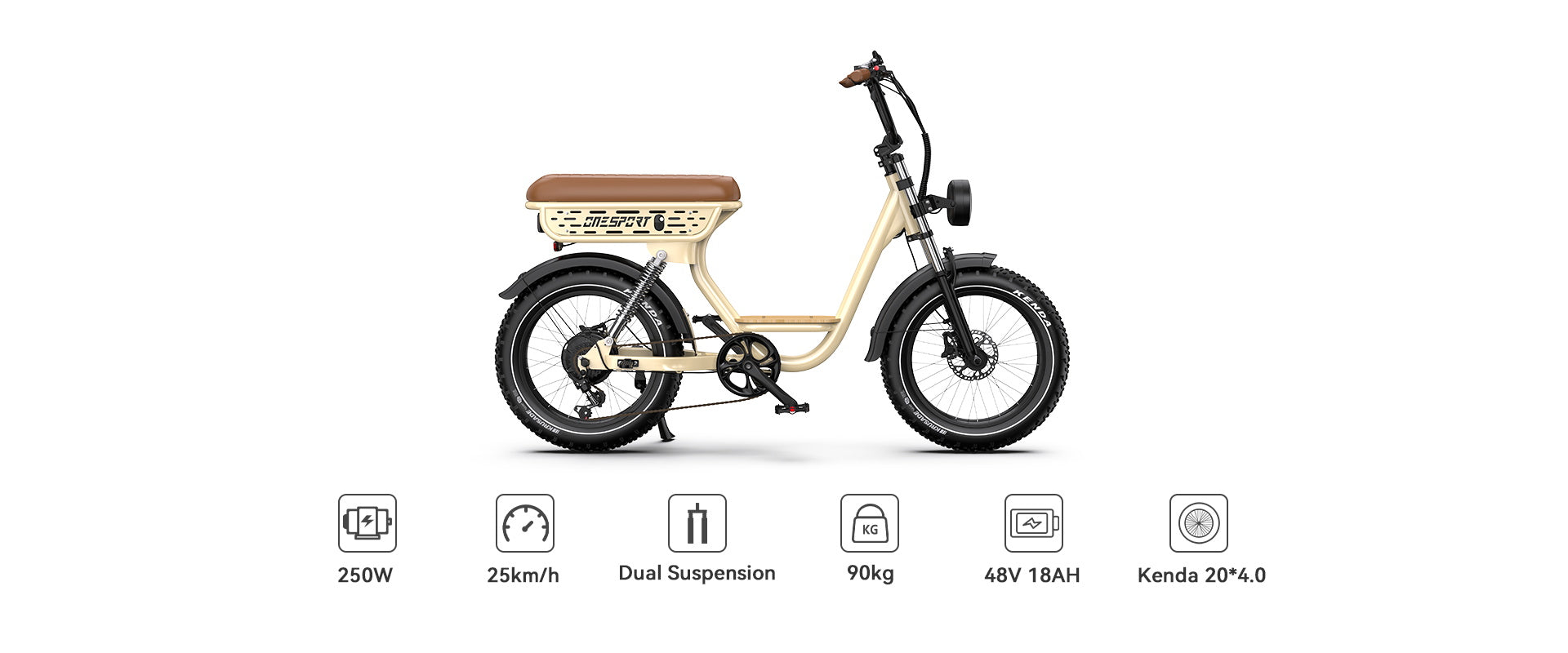

48V 250W Motor (Peak 500W) with 65Nm Torque
Powered by a 48V 250W motor (peak 500W), this fatbike offers strong, steady support for your daily rides. With 65Nm of torque, it handles hills and bumpy paths with ease. Whether you're riding through town or enjoying a quiet trail, the motor ensures smooth, comfortable, and reliable performance — ideal for riders who value safety and ease of use.
Frame
High-tensile steel frame
Fork
Double crown suspension fork featuring aluminum crown and steel stanchions,135 mm travel, non-adjustable and non-lockable
Handlebar Material
Aluminum Alloy
Handlebar Width
68cm
Crank
152mm Aluminum Alloy
Shock
Coil spring shock with a spring rate of 300 lbs
Rear Wheel
Kenda 20×4.0" fat spoked wheel, 30 TPI, with inner tube
Front Wheel
Kenda 20×4.0" fat spoked wheel, 30 TPI, with inner tube
Headlight
400LM K-Mark light
Taillight
K-Mark light
Pedal
Aluminum Alloy
Mudguard
Full-length plastic fenders for both front and rear wheels
Cargo rack
Not specified
Tool Kit
Installation tools, user manual, air pump, bell and strap
Weight limit
Supports riders and cargo up to 90 kg
Net Weight
43.18 kg
Gross Weight
53.68 kg

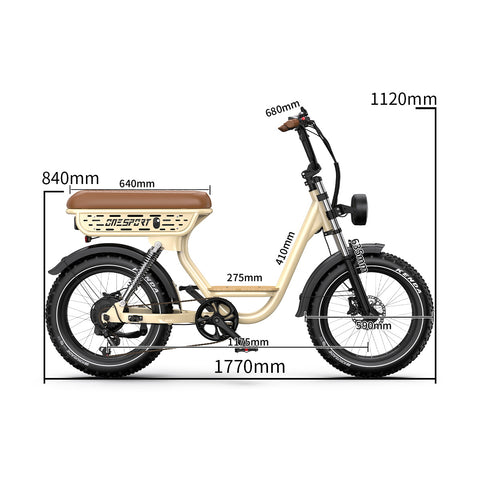

Product Dimensions
1750*1180*690 mm
Package Dimensions
1490*300*910 mm
Recommended Rider Height
160-200 cm
Front Brake
Zoom hydraulic disc brake, dual-piston caliper, 180 mm rotor
Rear Brake
Zoom hydraulic disc brake, dual-piston caliper, 180 mm rotor
Rear Derailleur
48V
Pedal Assist System
Pedal-assist with cadence sensor
Pedal Assist Levels
3 selectable assistance levels (0–3)
Motor Type
Rear hub motor
Rated Power
250W
Peak Power
500W (peak output)
Torque
65Nm
Battery
48V 18Ah removable lithium-ion battery (648 Wh)
Charger
54.6V 2A smart charger
Charging Time
Approximately 8–10 hours with the standard charger
Max Range
80-90 km under pedal-assist mode, depending on terrain, rider weight, and assist level
Top Speed
25 km/h (in compliance with EU regulations)
Max Climbing Angle
Up to 30° under optimal conditions (load, terrain, and battery level may affect actual performance)
Computer
3.5-inch LCD screen, Bluetooth-enabled, IPX4-rated for water resistance
Certifications
CE (Conformité Européenne) compliant
Proper Temperature
-10°C-40 °C
Waterproof Level
IPX4
More details
Battery
The 48V 18AH battery provides long-lasting power for extended rides, ensuring reliable performance and greater range on a single charge.

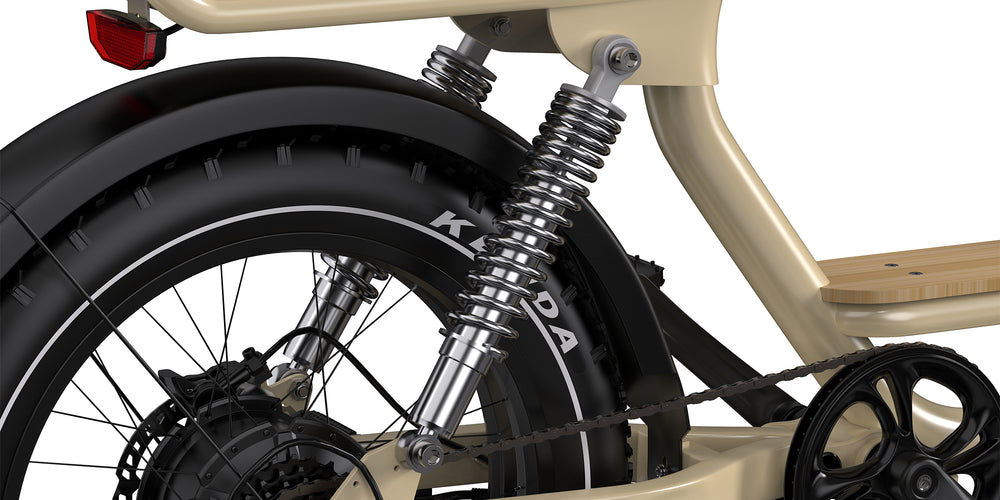

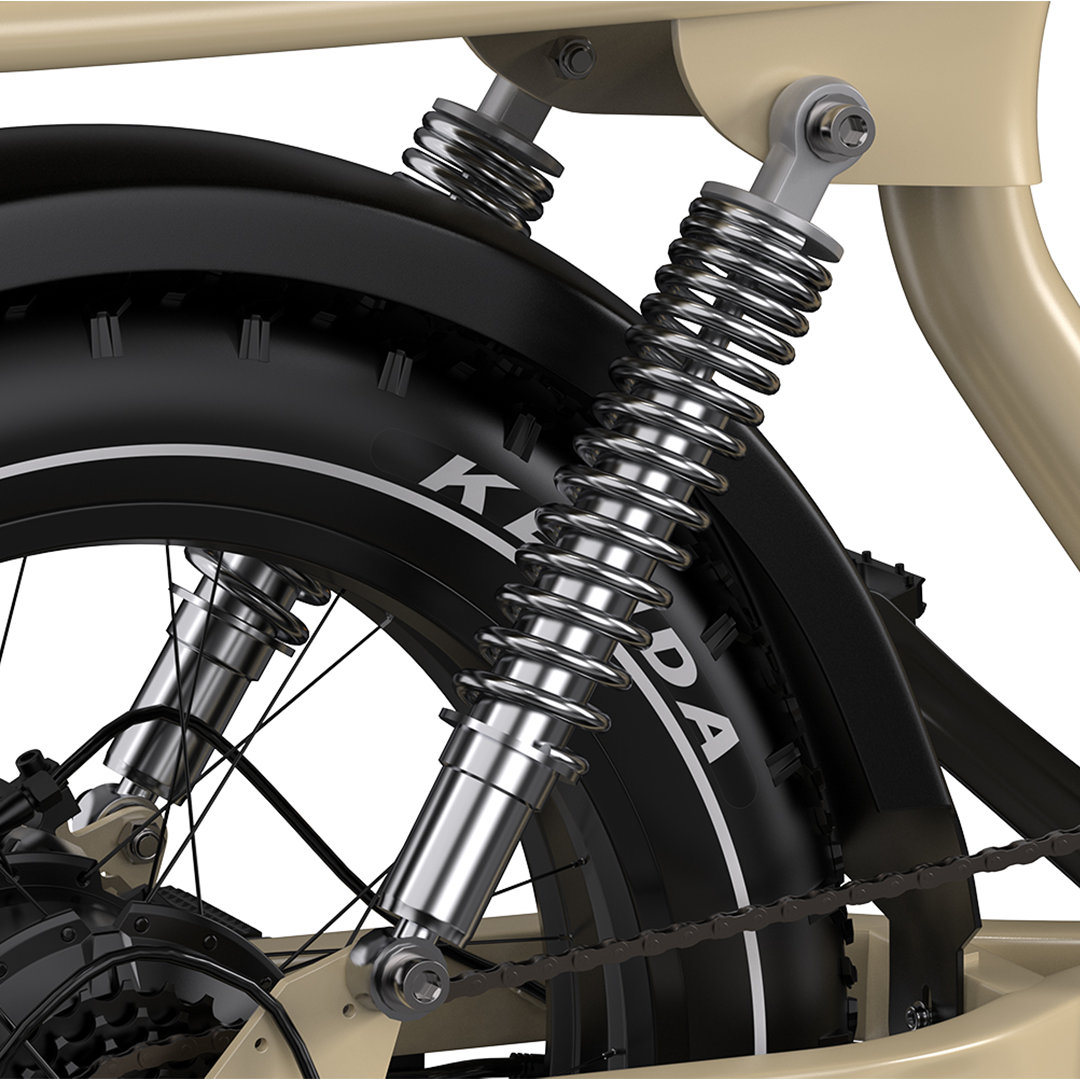

Rear Suspension
The rear suspension absorbs shocks from rough terrain, providing a smoother, more stable ride. It enhances comfort and control, whether you're on city streets or off-road trails.

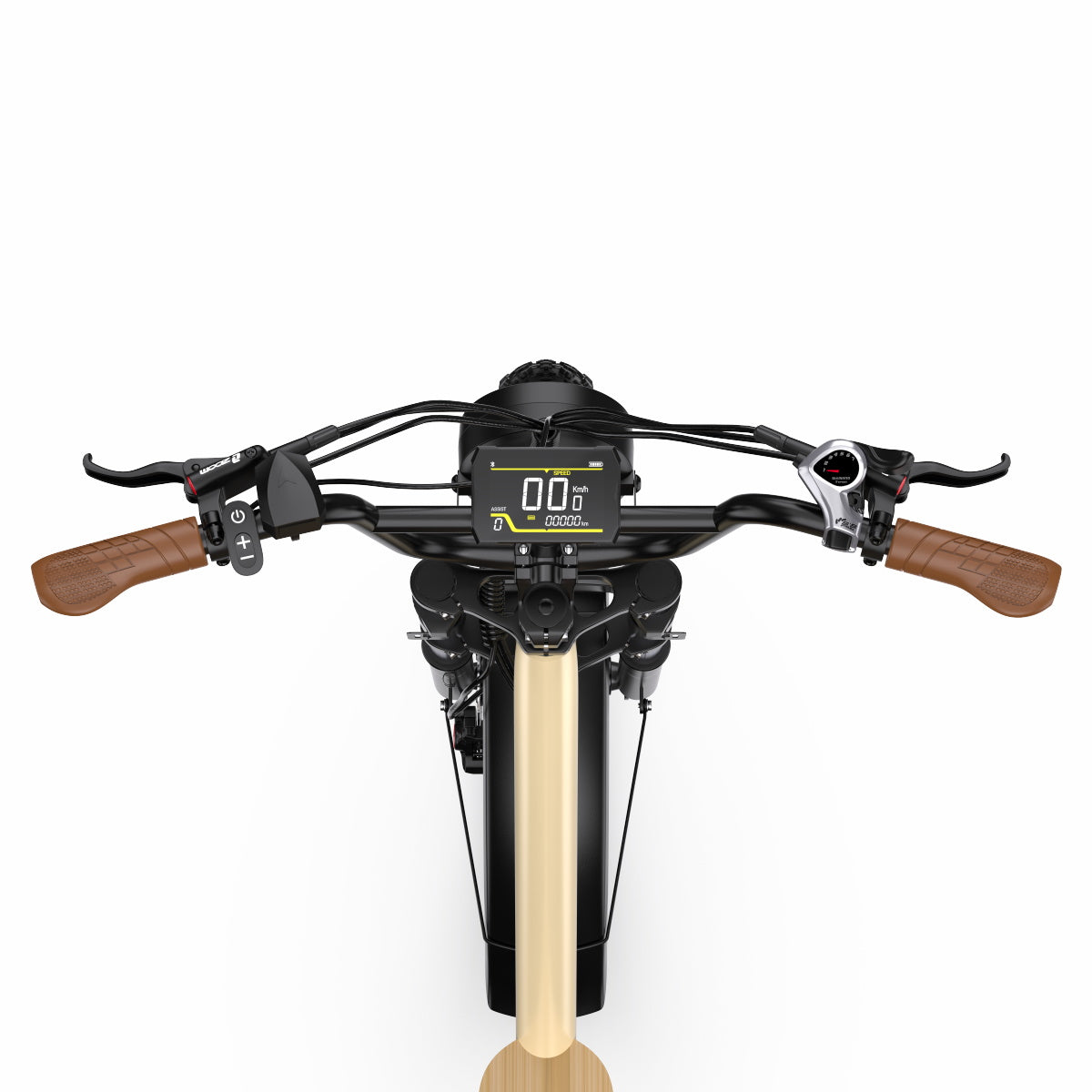

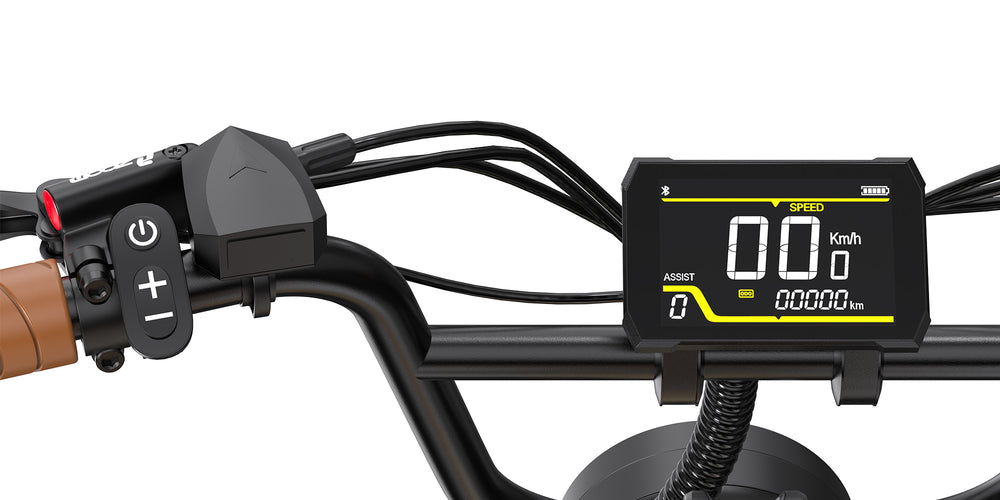

Screen
The display screen provides clear ride information and features Bluetooth functionality, allowing you to connect with your smartphone for additional features and updates. Stay informed and connected on every ride!

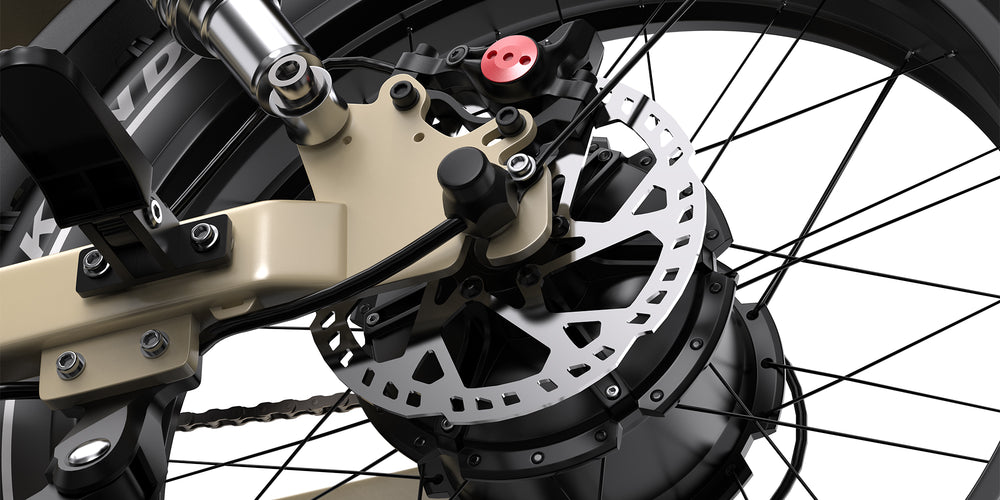

Hydraulic Disc Brakes
Hydraulic disc brakes offer powerful, precise stopping power with less maintenance. Provided reliable braking in all conditions, ensuring a safe and smooth ride on both city streets and rough terrains.

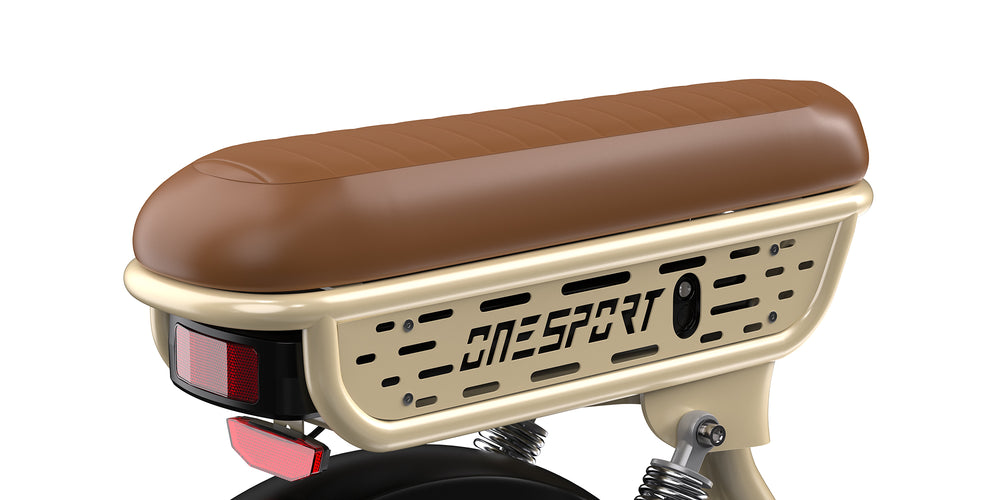

Dual Seat
The long seat cushion is designed to comfortably accommodate two passengers, offering a spacious and relaxing ride for both. Perfect for leisurely trips or shared journeys.

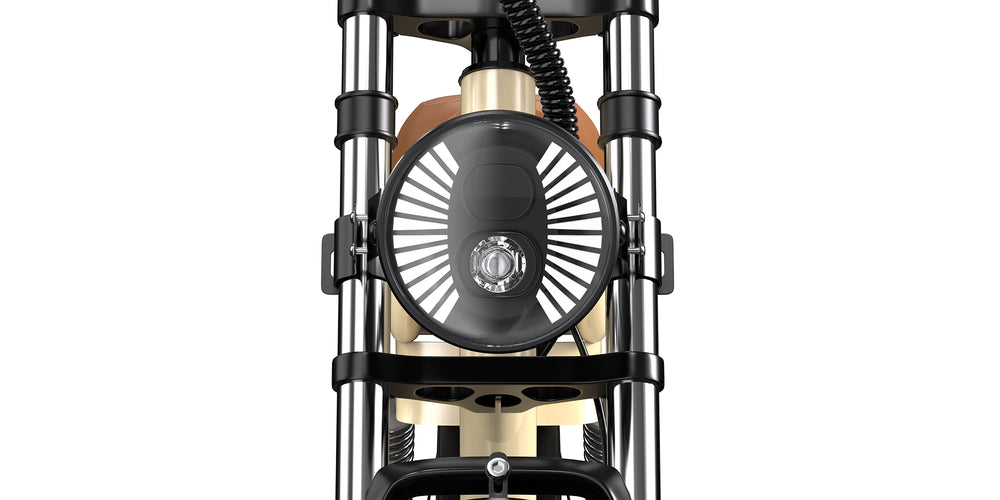

Front Light
The front light provides bright illumination for safe night rides, ensuring you see and are seen, whether in the city or on outdoor trails.
